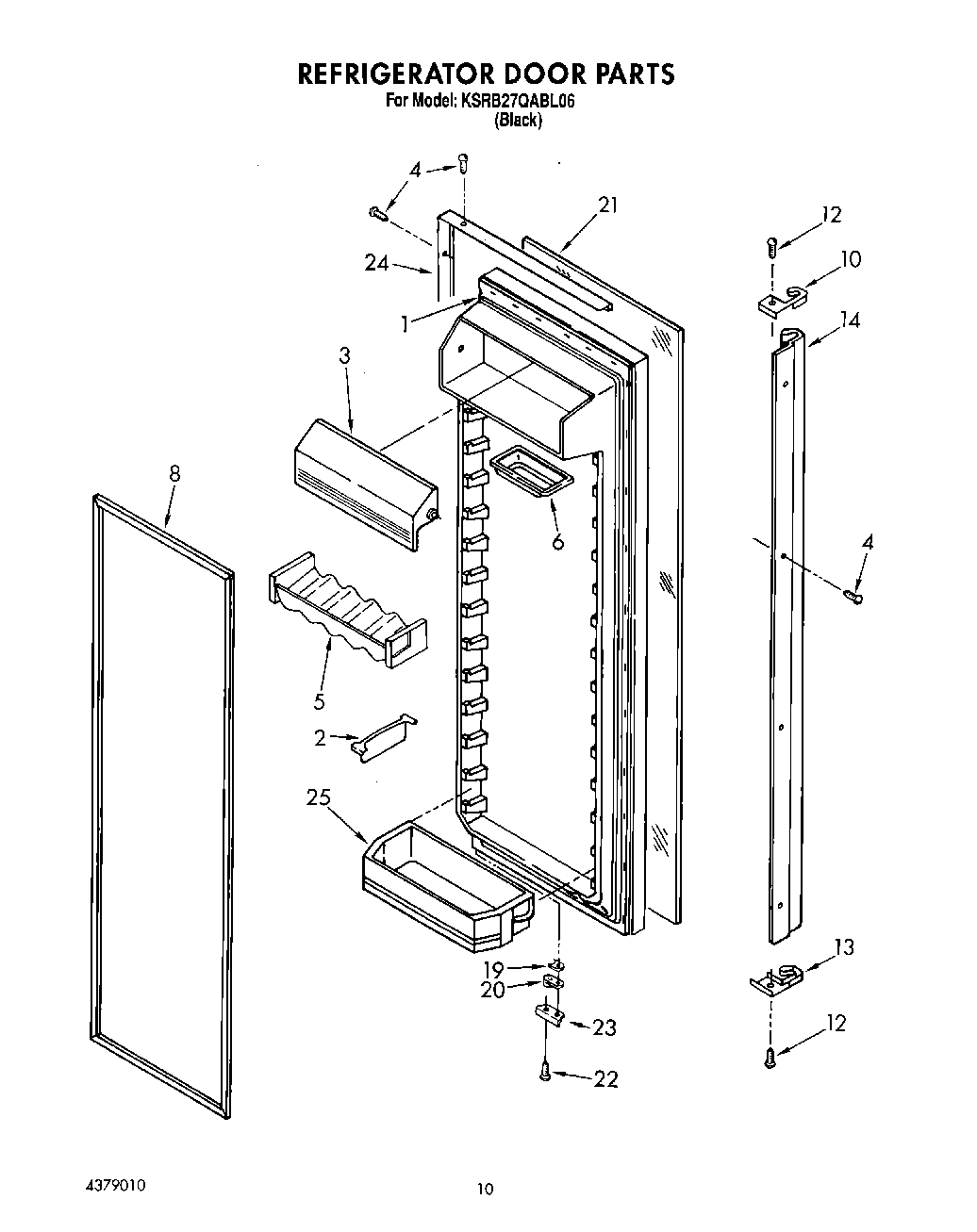

KSRB27QABL06 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Includes Item 8)
2	Load Lock
3	Compartment Door,
4	Screw (10)
5	WPL 1125981
6	Butter, Tray
8	Door Gasket, Magnetic
10	End Cap, Top
12	Screw, 6-32 x 1/2
13	End Cap, Bottom
14	Handle
19	WP1104787 Whirlpool Refrigerator Shim
20	4318165 Whirlpool Refrigerator Door Closure Cam Kit
21	Black Glass
22	WP489069 Whirlpool Compactor Screw
23	Bracket, Door Stop (Black)
24	Trim, Door
25	Trim Kit Trim Kit Panels
25	Handle Inserts (Black Grille Kit)
25	Handle Inserts (Woodgrain)
25	Handle Inserts (Black)
25	Acrylic Panel Kit (White)
25	Acrylic Panel Kit (Almond)
25	Shelf Bin (4)
25	Black Glass
