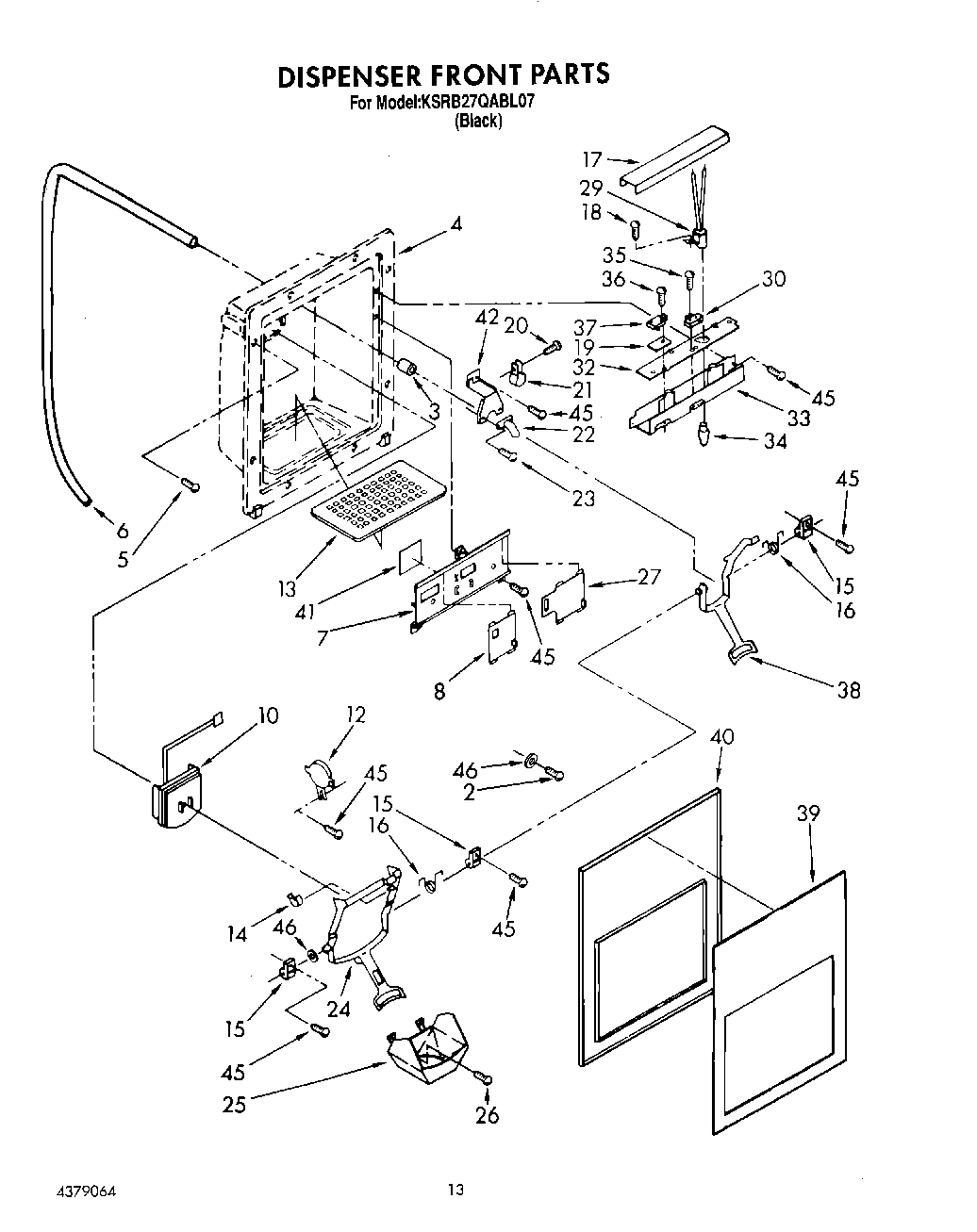

KSRB27QABL07 08 – DISPENSER FRONT

Products

Position	Product
2	Screw
3	4387491 Whirlpool Refrigerator Insert
4	Housing, Dispenser (Not a Serviceable Part)
5	W11693756 Whirlpool Screw Assembly
6	W10823511 Whirlpool Refrigerator Water Tube
7	Frame, Slides
8	Slide, Cube/Crush Switch
10	WP2180353 Whirlpool Dispenser Door
12	WP1120581 Whirlpool Refrigerator Mechanism
13	Grille, Overflow
14	Clip, Bearing (2)
15	Bearing, Lever (3)
16	Spring, Lever (2)
17	Shield, Wiring
18	WP489128 Whirlpool Refrigerator Screw
19	Spacer, Switch (2)
20	WP488787 Whirlpool Refrigerator Screw
21	WP488878 Whirlpool Refrigerator Tube Clamp
22	WP4388152 Whirlpool Refrigerator Fitting
23	WP965173 Whirlpool Dishwasher Screw
24	Lever Assembly, Ice Dispenser
25	Guide, Ice
26	Screw
27	Slide, Light Switch
29	Lamp Holder
30	Switch (2)
32	Insulator, Control Bracket
33	Bracket, Control
34	WP22002263 Whirlpool Dryer 10W Light Bulb
35	Screw, 4-40 x 1
36	Screw,
37	814037 Whirlpool Microwave Switch
38	Lever Assembly, Water Dispenser
39	WPL 1125803
40	WPL 1125807
41	Heat Shield, Frame
42	Bracket, Water
45	WP3400906 Whirlpool Refrigerator Screw
46	Washer
