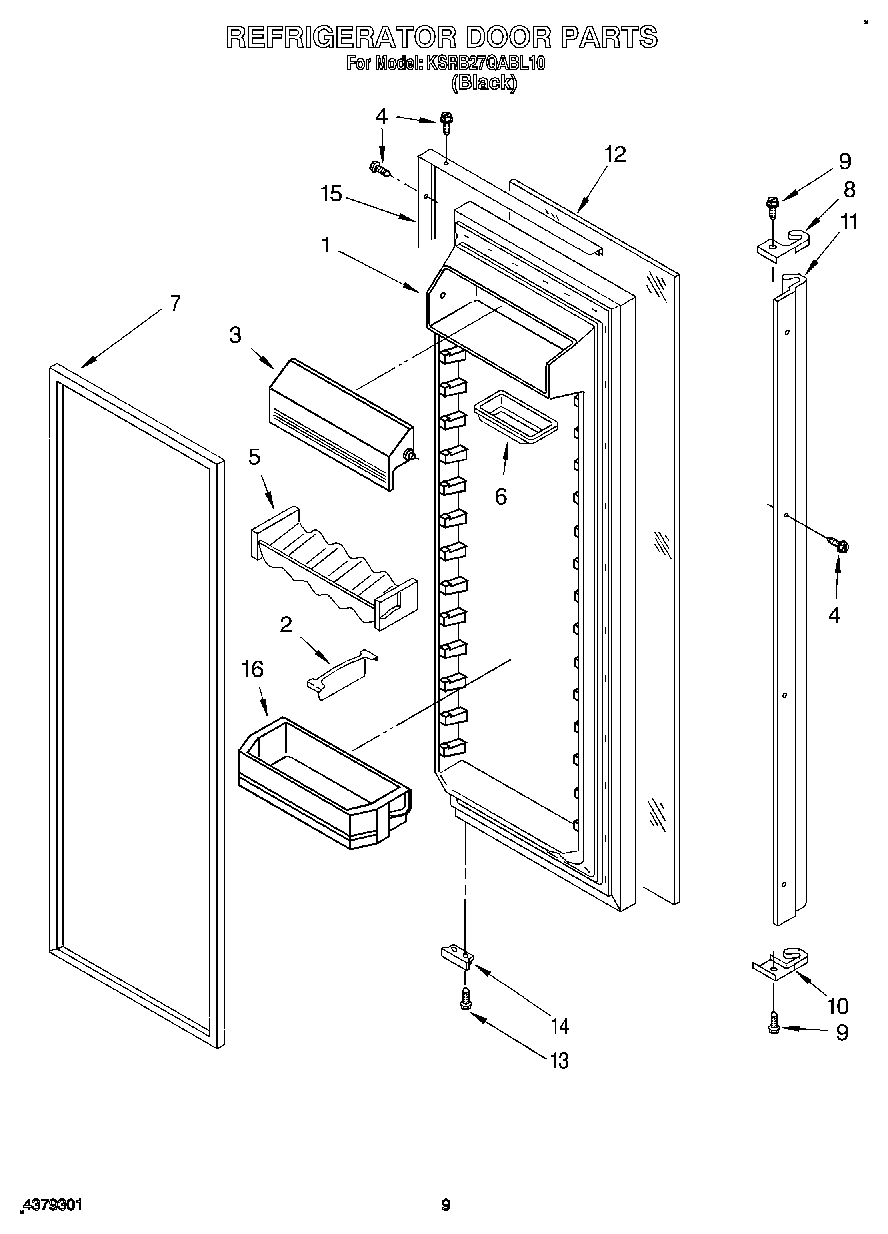

KSRB27QABL10 06 – REFRIGERATOR DOOR

Written by

Products

Position	Product
1	Refrigerator Door (Includes Item 7)
2	Load Lock
3	Door, Compartment
4	Screw (10)
5	WPL 1125981
6	Butter, Tray
7	2159075 Whirlpool Door Gasket Seal
8	End Cap, Top
9	Screw, 6-32 x 1/2
10	End Cap, Bottom
11	Handle
12	Black Glass
13	WP999367 Whirlpool Refrigerator Screw
14	Bracket, Door Stop (Black)
15	Trim, Door
16	Shelf Bin (4)
