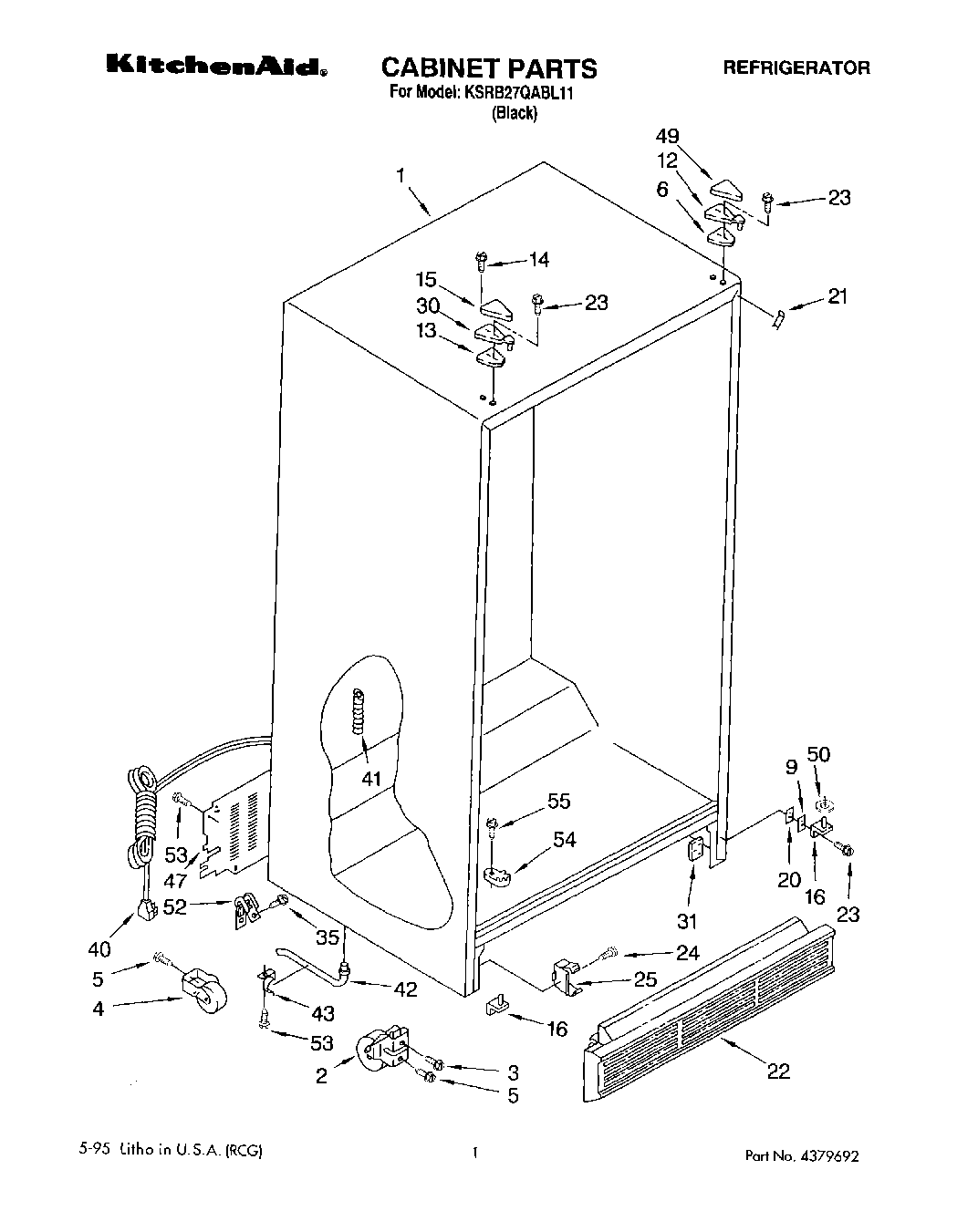

KSRB27QABL11 01 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Front Roller (2)
3	Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	Shim, Hinge Top
9	Shim, Bottom Hinge
12	Hinge Top (R.H.)
13	WP2181911 Whirlpool Refrigerator Shim
14	Screw
15	Hinge Cover
16	8201707 Whirlpool Door Hinge
20	Spacer, Hinge
21	Filler, Wrapper (Black)
22	Grille (Black)
23	WP999367 Whirlpool Refrigerator Screw
24	WP489478 Whirlpool Refrigerator Screw
25	WP2155013 Whirlpool Refrigerator Clip
30	WP2196046 Whirlpool Refrigerator Door Hinge
31	Tap Plate (2)
35	WP489464 Whirlpool Refrigerator Screw
40	Cord, Service
41	W11566763 Whirlpool Fitting
42	WP1108438 Whirlpool Refrigerator Extension
43	WP1108439 Whirlpool Refrigerator Clip
47	WP2188755 Whirlpool Rear Panel
49	Hinge Cover (Black)
50	Washer, 7/16
52	549193 Whirlpool Refrigerator Power Clamp
54	WPW10329686 Whirlpool Door Cam Black
55	WP489483 Whirlpool Screw
