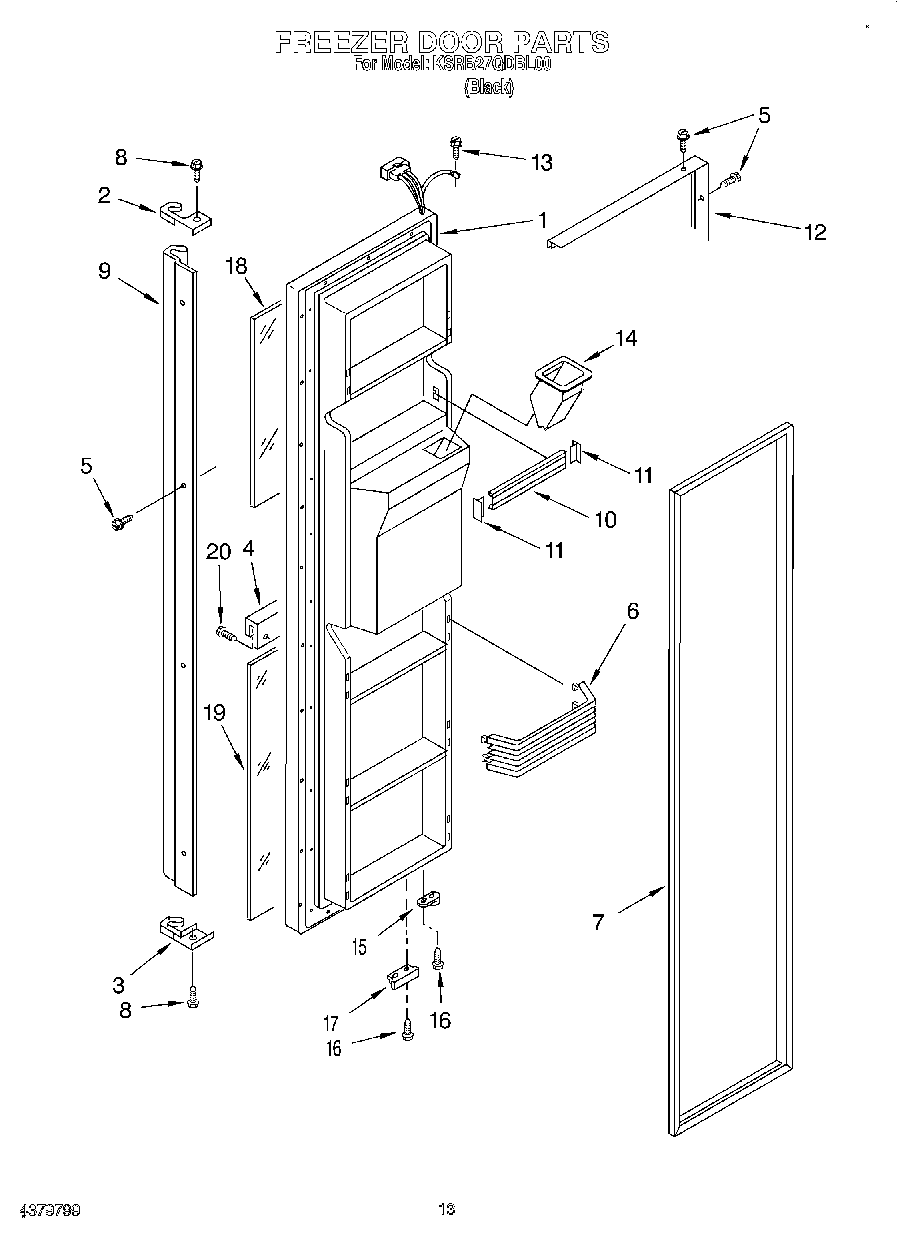

KSRB27QDBL00 08 – FREEZER DOOR

KSRB27QDBL00 08 – FREEZER DOOR

Written by

in

KSRB27QDBL00 08 – FREEZER DOOR

Products

PositionProduct
1Freezer Door (Includes Item 7 And Dispenser Front Parts)
2End Cap, Bottom
3End Cap, Top
4Trim, Dispenser
5Screw (10)
6Shelf Bin (4)
72159074 Whirlpool Door Gasket Seal
8Screw, 6-32 x 1/2
9Handle
10WPW10307490 Whirlpool Door Trim Assembly
11WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
12Trim, Door
13WP488234 Whirlpool Air Conditioner Screw
14Chute, Ice
154318165 Whirlpool Refrigerator Door Closure Cam Kit
16WP999367 Whirlpool Refrigerator Screw
17Bracket, Door Stop (Chrome)
18Black Glass, Upper
19Black Glass, Lower
20Screw
