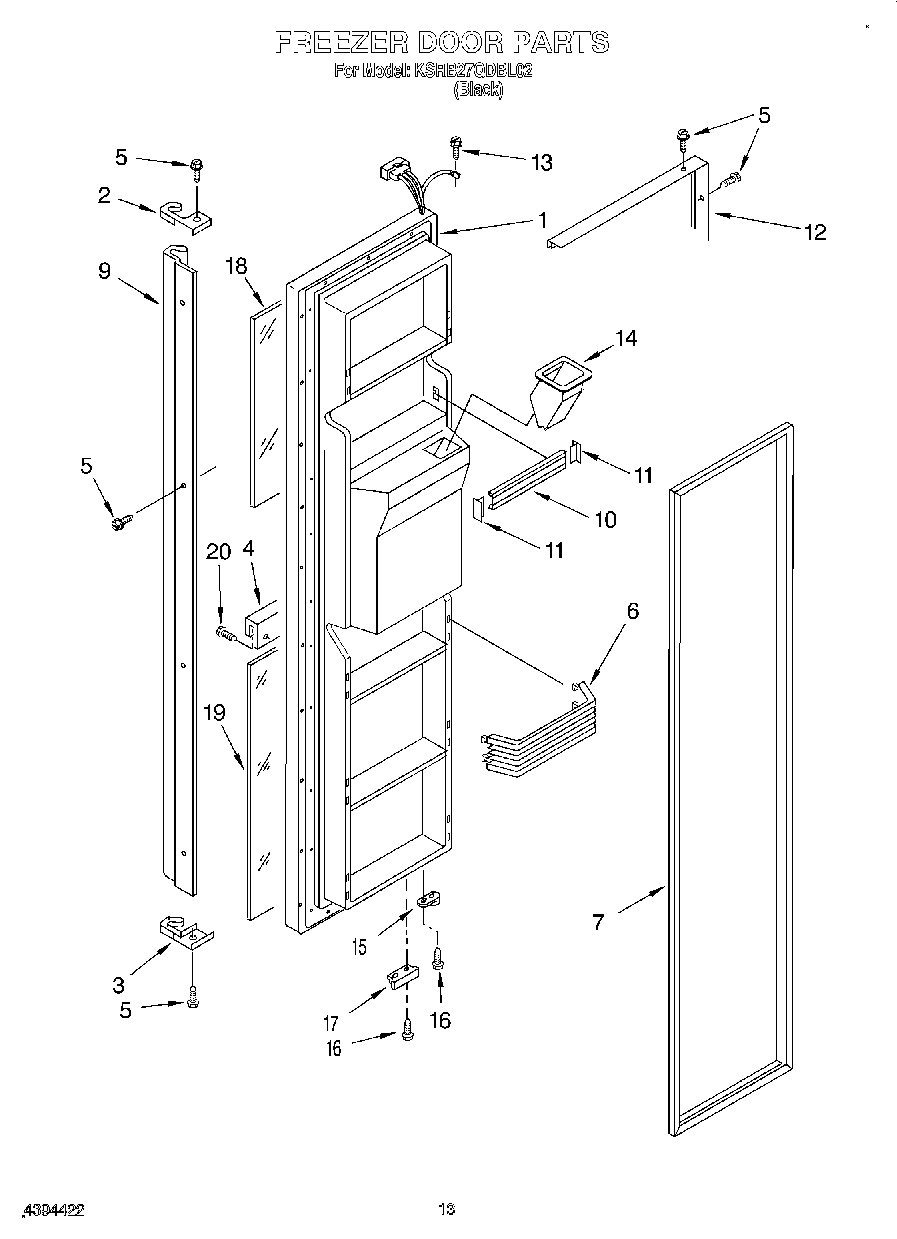

KSRB27QDBL02 08 – FREEZER DOOR

Products

Position	Product
1	Freezer Door (Includes Item 7 And Dispenser Front Parts)
2	End Cap, Bottom
3	End Cap, Top
4	Trim, Dispenser
5	Screw
6	Shelf Bin (4)
7	2159082 Whirlpool Freezer Door Gasket Black
9	Handle
10	WPW10307490 Whirlpool Door Trim Assembly
11	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
12	Trim, Door
13	WP488234 Whirlpool Air Conditioner Screw
14	Chute, Ice
15	4318165 Whirlpool Refrigerator Door Closure Cam Kit
16	WP999367 Whirlpool Refrigerator Screw
17	Bracket, Door Stop (Chrome)
18	Black Glass, Upper
19	Black Glass, Lower
20	Screw
