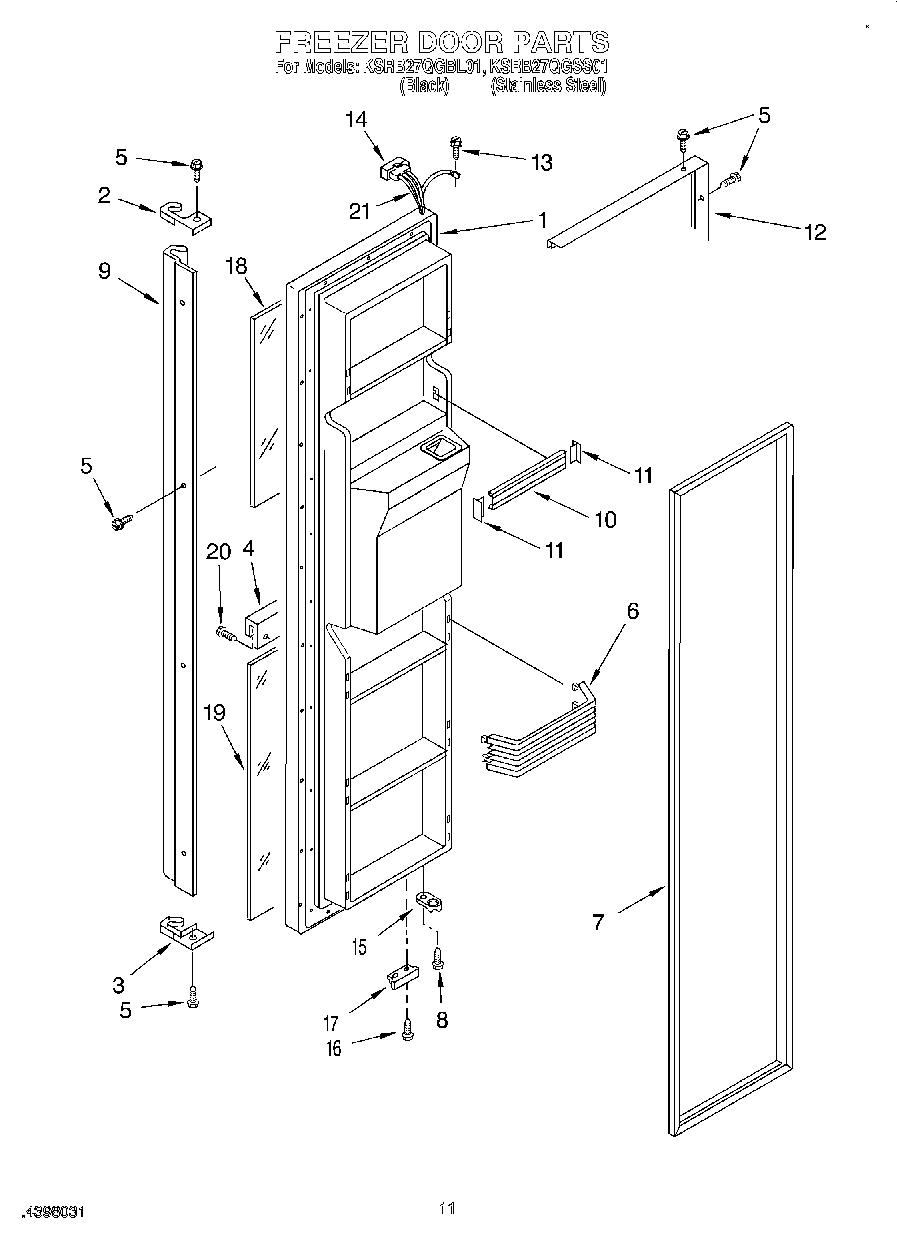

KSRB27QGSS01 07 – FREEZER DOOR

Products

Position	Product
1	Freezer Door (Includes Item 7 And Dispenser Front Parts)
2	End Cap
3	End Cap
4	Trim, Dispenser
5	Screw
6	Shelf Bin (4)
7	2159082 Whirlpool Freezer Door Gasket Black
8	WP3400012 Whirlpool Refrigerator Screw
9	Handle
10	WPW10307490 Whirlpool Door Trim Assembly
11	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
12	Trim, Door
13	WP489128 Whirlpool Refrigerator Screw
14	WP2154473 Whirlpool Refrigerator Connector
15	4318165 Whirlpool Refrigerator Door Closure Cam Kit
16	WP489483 Whirlpool Screw
17	Bracket, Door Stop (Chrome)
18	Panel, Upper (Stainless Steel)
18	Black Glass, Upper
19	Black Glass, Lower
19	Panel, Lower (Stainless Steel)
20	Screw
21	Wire Harness
