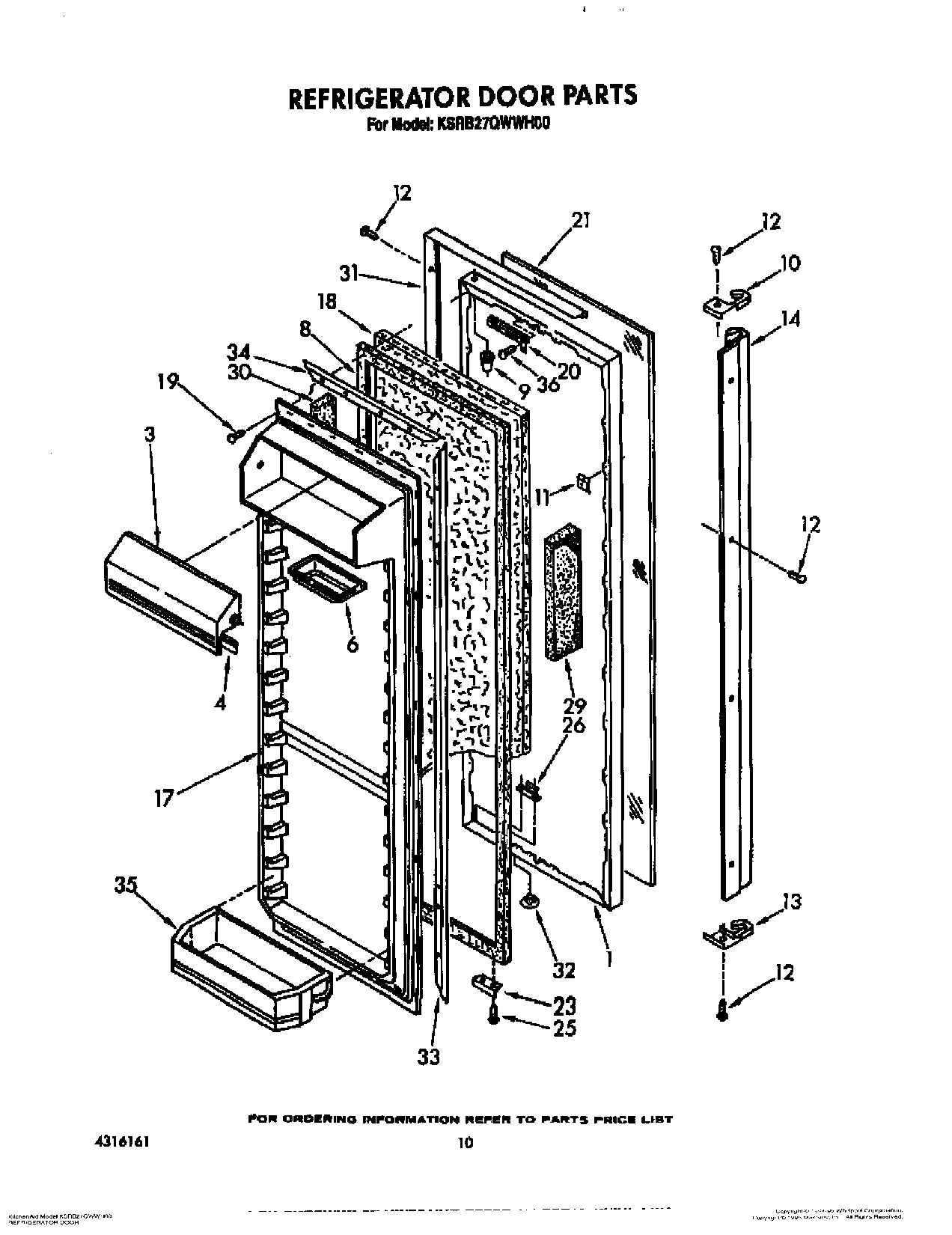

KSRB27QWAL00 07 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Almond (Also Order Item 18))
1	Refrigerator Door (White)
3	Compartment Door,
4	Gasket, Utility Door
6	Butter, Tray
8	Door Gasket, Magnetic
9	Cap, Hinge Sleeve (2)
10	End Cap, Top
11	Screw Anchor (2)
12	Screw, 6-32 x 1/2
13	End Cap, Bottom
14	Handle
17	Panel, Interior Door
18	WPL 876029
19	WP489069 Whirlpool Compactor Screw
20	Door Closer, Upper Cam
21	Black Glass
23	Bracket, Door Stop
25	Screw, 89 x 5/8
26	Tap Plate
29	Dike, Door Handle Side
30	Dike, Door Hinge Side
31	Trim, Door
32	Hole Plug (2)
33	Gasket Retainer, Side (2)
34	Gasket Retainer, Top & Bottom
35	Shelf Bin (4)
36	WP488729 Whirlpool Refrigerator Door Screw
