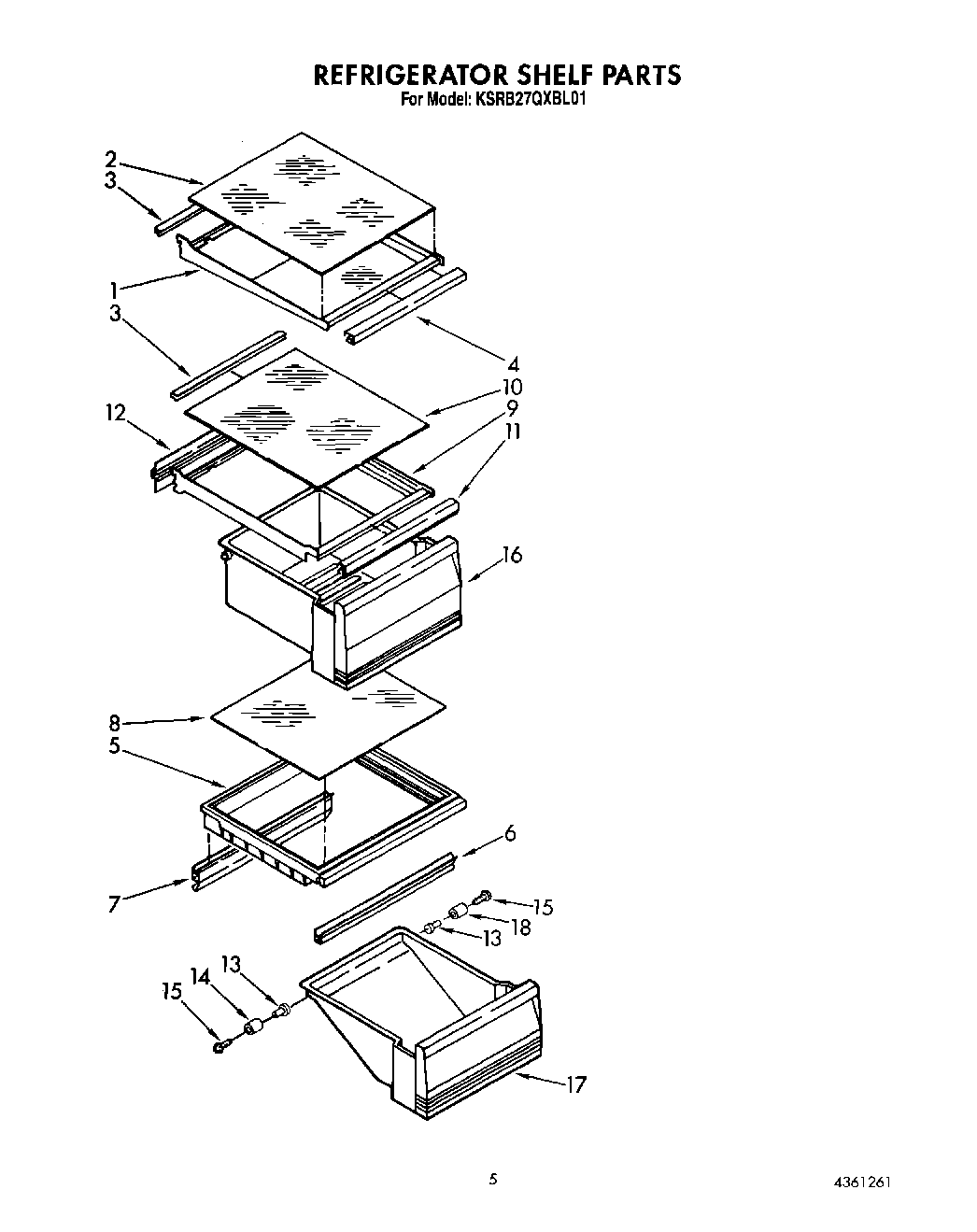

KSRB27QXBL01 04 – REFRIGERATOR SHELF

Products

Position	Product
1	Shelf Assembly, Cantilever (2)
2	Glass, Shelf
3	Retainer
4	Gasket, Front
5	WP2161491 Whirlpool Crisper Drawer Cover
6	WP1125528 Whirlpool Refrigerator Gasket
7	Gasket, Cover (Rear)
8	Glass, Cover (2)
9	Pan Shelf & Slide Assembly
10	Glass, Shelf
11	Gasket (Front)
12	Gasket (Rear)
13	Eyelet, Roller
14	Roller
15	WP489261 Whirlpool Refrigerator Screw
16	Crisper Pan (2)
17	Utility Pan
18	Roller, R.S.
