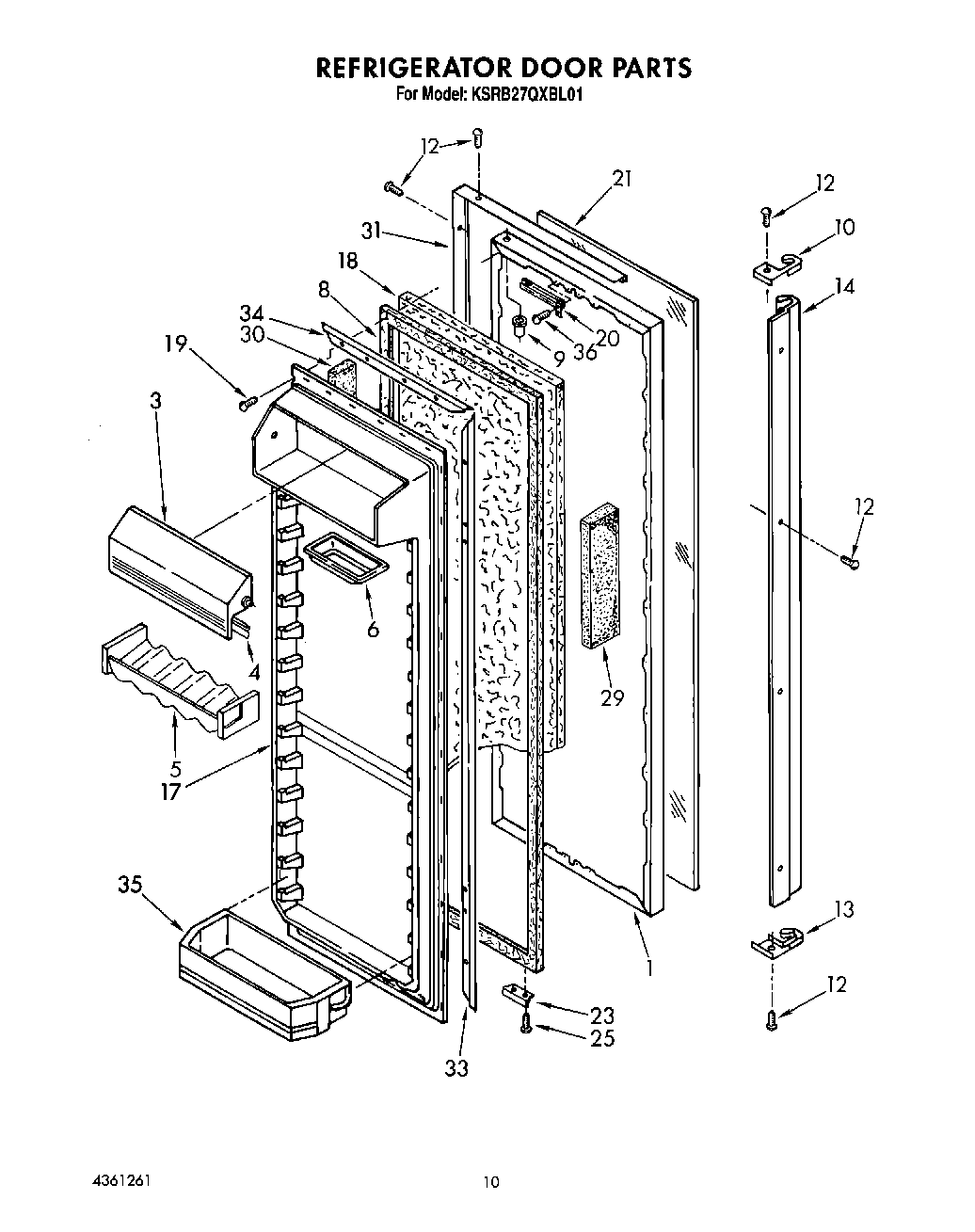

KSRB27QXBL01 07 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Black (Also Order Item 18))
3	Compartment Door,
4	Gasket, Utility Door
5	WPL 1125981
6	Butter, Tray
8	Door Gasket, Magnetic
9	Cap, Hinge Sleeve (2)
10	End Cap, Top
12	Screw (10)
13	End Cap, Bottom
14	Handle
17	Panel, Interior Door
18	WPL 876029
20	Door Closer, Upper Cam
21	Black Glass
23	Bracket, Door Stop
25	WP489069 Whirlpool Compactor Screw
29	Dike, Door Handle Side
30	Dike, Door Hinge Side
31	Trim, Door
33	Gasket Retainer, Side (2)
34	Gasket Retainer, Top & Bottom
35	Shelf Bin (4)
36	WP488729 Whirlpool Refrigerator Door Screw
