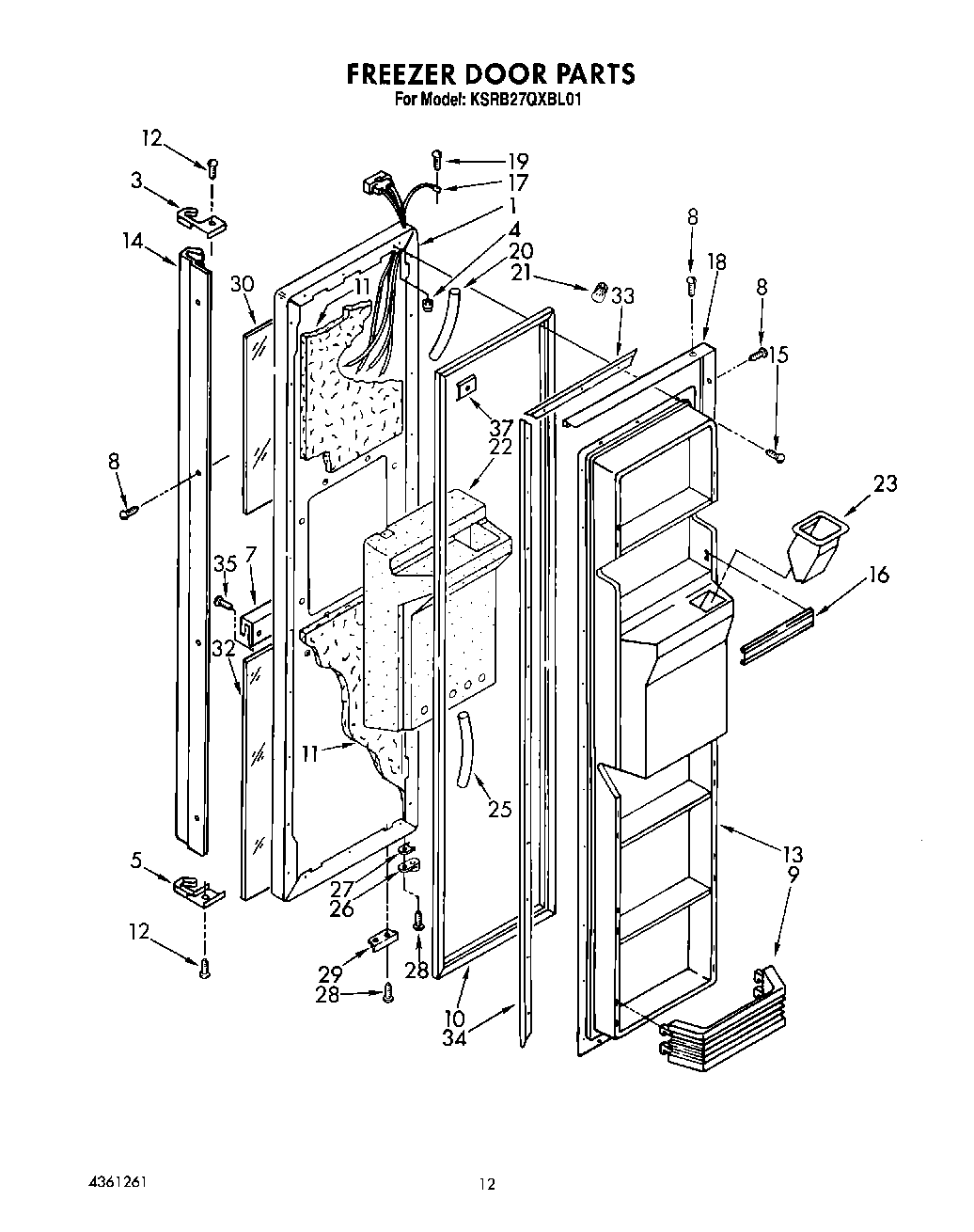

KSRB27QXBL01 08 – FREEZER DOOR

Products

PositionProduct
1Freezer, Door Panel (Also Order Item 11) (Black)
3End Cap, Bottom
4Seal, Hinge Pin
5End Cap, Top
7Trim, Dispenser
8Screw (10)
9Shelf Bin (4)
10Door Gasket, Magnetic
11WPL 876029
13Panel, Interior Door
14Handle
16Trim, Door Shelf
17Harness, Door (Includes Item 18)
18Trim, Door
19WP488234 Whirlpool Air Conditioner Screw
20Tube, Door Wiring
21Wire Connector
22Insulation, Dispenser
23Chute, Ice
25Tube, Door Wiring
264318165 Whirlpool Refrigerator Door Closure Cam Kit
27WP1104787 Whirlpool Refrigerator Shim
28WP489069 Whirlpool Compactor Screw
29Bracket, Door Stop
30Black Glass, Upper
32Black Glass, Lower
33Gasket Retainer, Top & Bottom
34Gasket Retainer, Side (2)
35Screw
37WP939101 Whirlpool Refrigerator Plate
