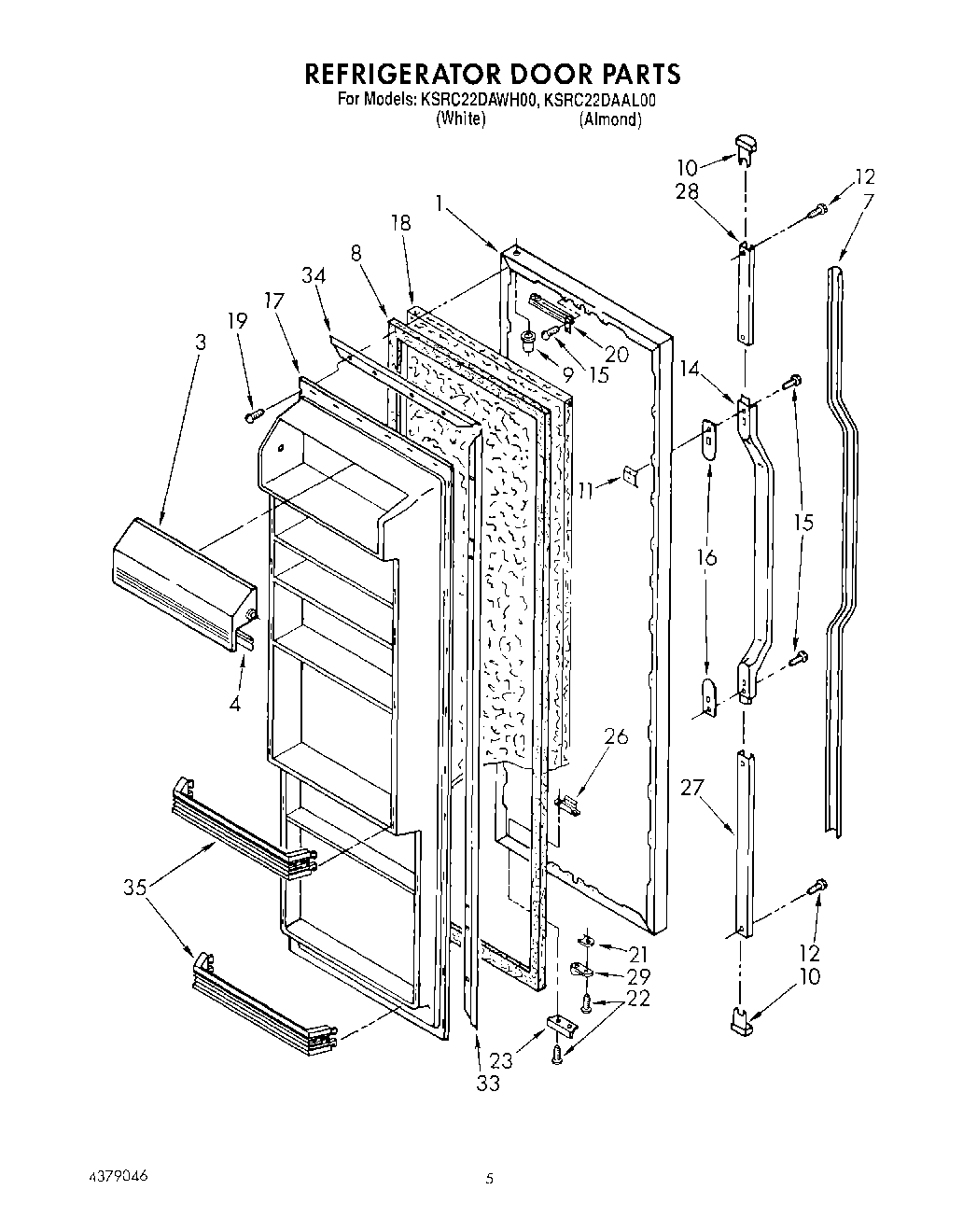

KSRC22DAWH00 04 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Almond (Also Order Item 18))
1	Refrigerator, Door Panel (White)
3	Compartment Door,
4	Gasket, Utility Door
7	Insert, Handle (White)
7	Insert, Handle (Almond)
8	2188404A Whirlpool Refrigerator Door Gasket
9	Cap, Hinge Sleeve (2)
10	End Cap (2)
11	Screw Anchor (2)
12	Screw
14	Handle
15	WP488729 Whirlpool Refrigerator Door Screw
16	Spacer, Handle
17	Panel, Interior Door
18	WPL 876029
20	Door Closer, Upper Cam
21	WP1104787 Whirlpool Refrigerator Shim
22	WP489069 Whirlpool Compactor Screw
23	Bracket, Door Stop
26	Tap Plate
27	Retainer, Insert
28	Retainer, Insert
29	4318165 Whirlpool Refrigerator Door Closure Cam Kit
33	Retainer, Gasket
34	Gasket Retainer, Top & Bottom
35	Woodgrain
35	Handle Insert (Black)
35	Trim Kit Trim Kit Panel
35	Trim Kit Panel (White)
35	Almond Handle Insert
35	Shelf Bin (4)
35	Black Grille Kit
