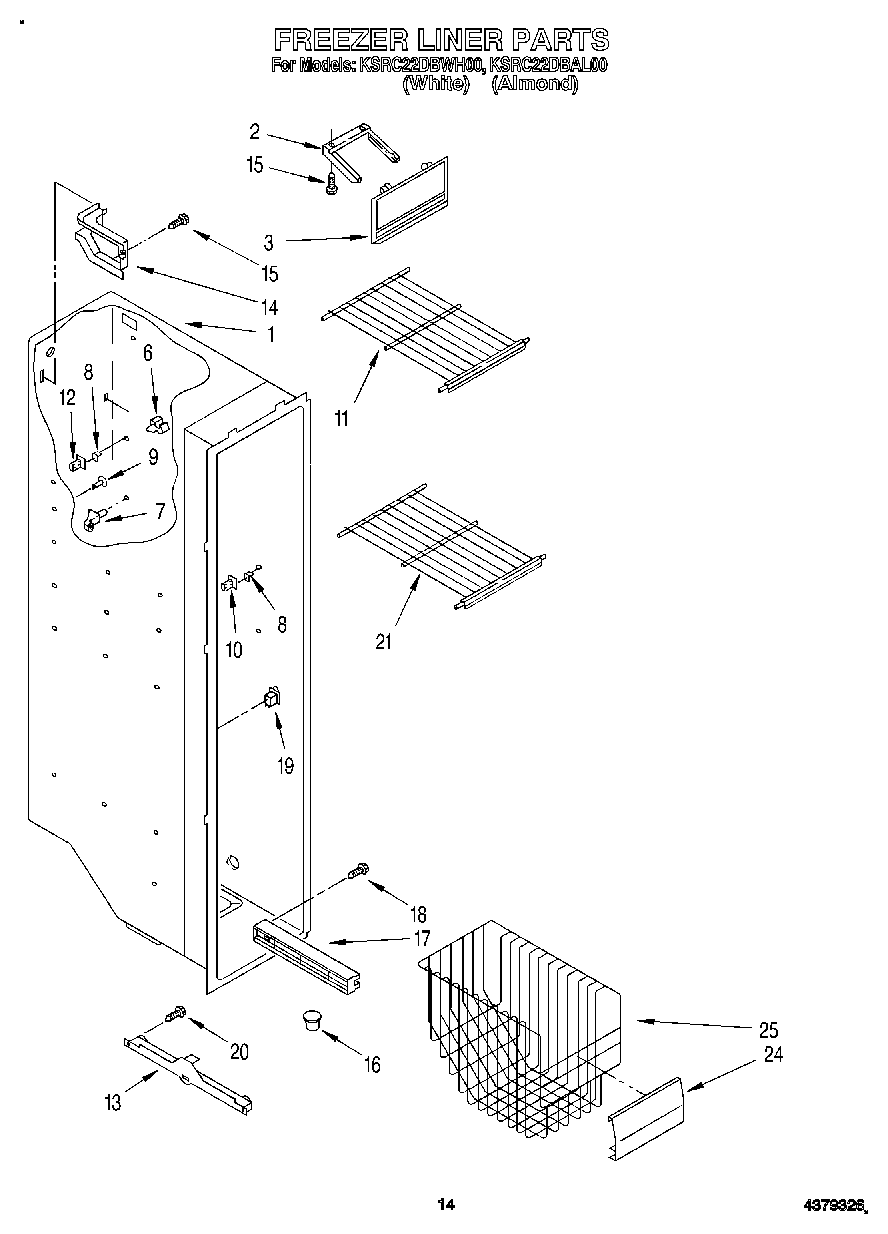

KSRC22DBAL00 09 – FREEZER LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Slide, Ice Door
3	Door, Ice Compartment
6	2215823 Whirlpool Refrigerator Clip
7	4388405 Whirlpool Refrigerator Shelf Stud
8	Stud, Support
9	Grommet (8)
10	Stud, Front R.S.
11	Shelf
12	Stud, Rear R.S.
13	W10845585 Whirlpool Refrigerator Track
13	W10845583 Whirlpool Refrigerator Track
14	Cover, Wiring
15	WP488729 Whirlpool Refrigerator Door Screw
16	Drain Ferrule
17	Shelf Track (Right Side (4))
17	Shelf Track (Left Side (4))
18	W11693756 Whirlpool Screw Assembly
19	W11457217 Whirlpool Refrigerator Rocker Switch Combination
20	718257 Whirlpool Dishwasher Screw
21	Shelf (2)
24	Front, Basket
25	Basket, Lower
