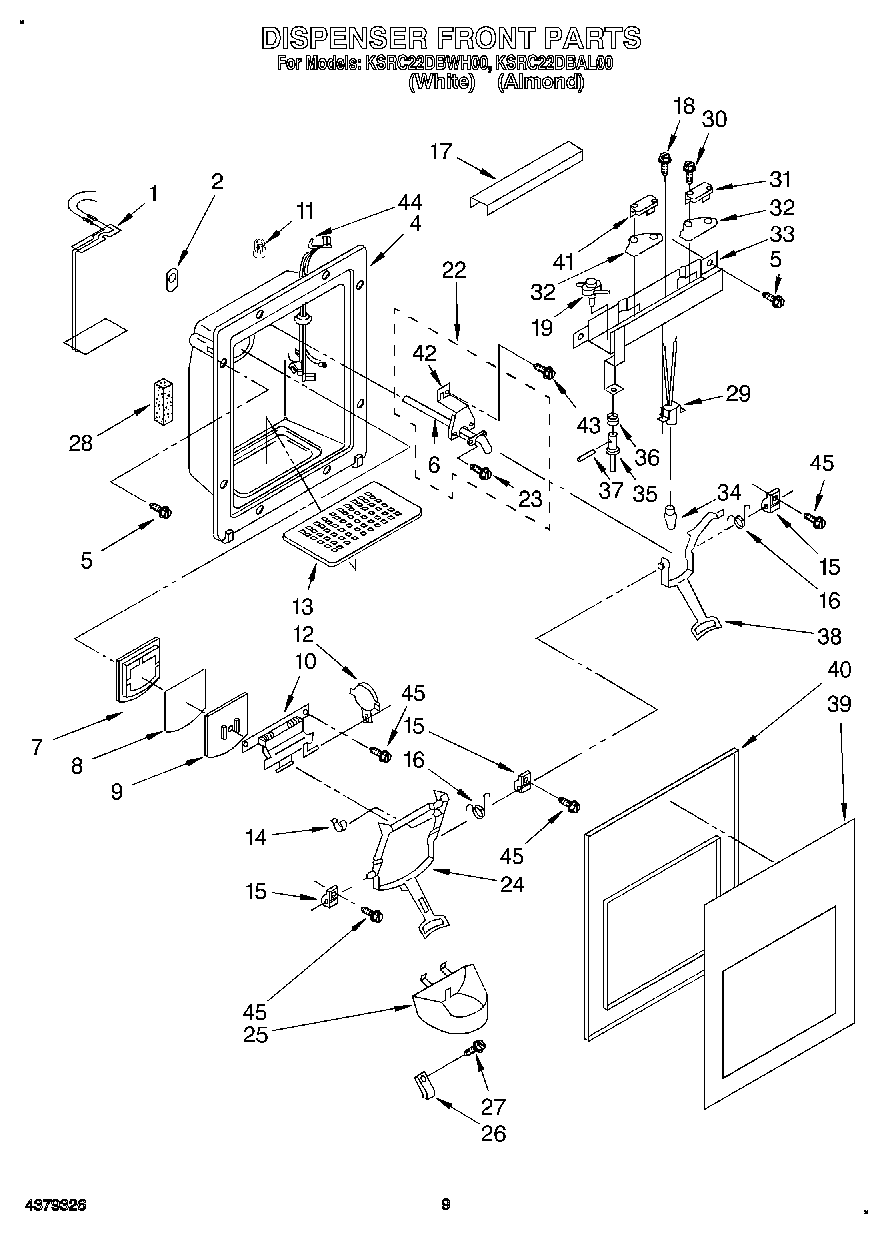

KSRC22DBWH00 06 – DISPENSER FRONT

Products

Position	Product
NI	4387491 Whirlpool Refrigerator Insert
1	Heater, Dispenser
2	Grommet
4	Housing, Dispenser
4	Housing Dispenser (For Almond Model)
5	W11693756 Whirlpool Screw Assembly
6	Tube, Water (See Item No.22)
7	Gasket, Door
8	Shield, Ice Door
9	Door, Ice
10	Door Mechanism Assembly
11	Wire Connector
12	WP1120581 Whirlpool Refrigerator Mechanism
13	Grille, Overflow (White)
13	Grille, Overflow (Almond)
14	Clip, Bearing (2)
15	Bearing, Lever (3)
16	Spring, Lever (2)
17	Shield, Wiring
18	WP489128 Whirlpool Refrigerator Screw
22	WP4388152 Whirlpool Refrigerator Fitting
23	WP965173 Whirlpool Dishwasher Screw
24	Lever Assembly, Ice Dispenser (Almond)
24	Lever Assembly, Ice Dispenser (White)
25	Guide, Ice (Almond)
25	Guide, Ice (White)
26	Stop, Glass (Almond)
26	Stop, Glass (White)
27	Screw
28	Seal
29	Socket, Lamp
30	Screw
31	814037 Whirlpool Microwave Switch
32	Insulator, Switch (2)
33	Bracket, Control
34	WP22002263 Whirlpool Dryer 10W Light Bulb
35	Plunger
36	Spring, Plunger
37	Pin, Retainer
38	Lever Assembly, Water Dispenser (White)
38	WPL 2159198
39	Insert, Cover (White)
39	Insert, Cover (Almond)
40	Cover, Housing (Includes Item 39) (Almond)
40	Cover, Housing (Includes Item 39) (White)
41	Switch, Light
42	Bracket, Water
43	Screw, 8-18 x 3/4
44	Wiring Assembly, Door
45	WP3400906 Whirlpool Refrigerator Screw
