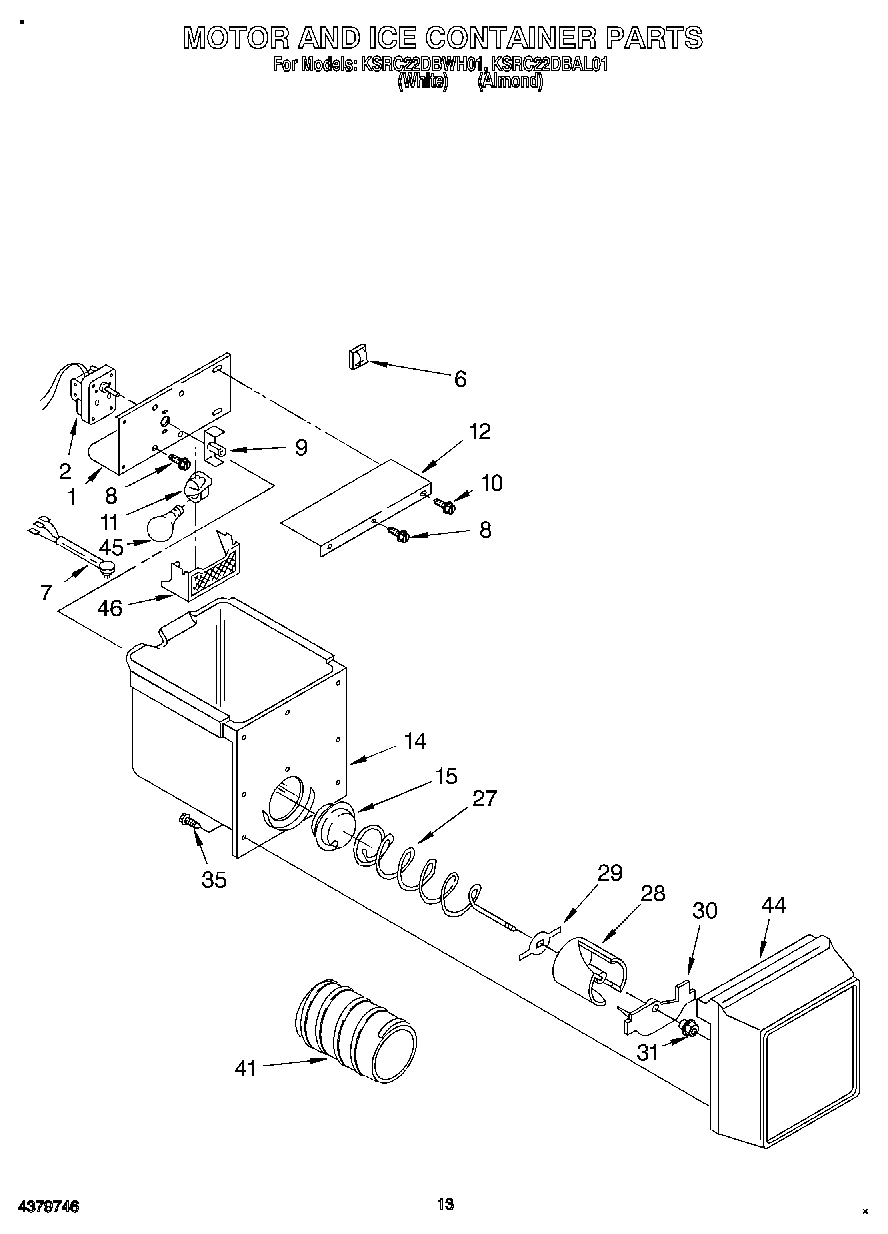

KSRC22DBWH01 08 – MOTOR AND ICE CONTAINER

Products

Position	Product
1	WPW10284487 Whirlpool Refrigerator Bracket
2	Motor
6	WP1115374 Whirlpool Refrigerator Clip
7	Wiring Assembly, Ice Dispenser
8	WP489399 Whirlpool Refrigerator Screw
9	COUPLING AUGER MOTOR
10	WP489478 Whirlpool Refrigerator Screw
11	4387478 Whirlpool Refrigerator Light Socket
14	WP2196089 Whirlpool Refrigerator Container
15	W10749708 Whirlpool Refrigerator Coupling
27	Conveyor
29	4388736 Whirlpool Refrigerator Ice Dispenser Bucket Bin Conveyor Auger Drum
30	Baffle
31	Nut, Bearing
35	WP488787 Whirlpool Refrigerator Screw
41	4317870 Whirlpool Refrigerator Auger Sleeve
44	Front Cover, Ice Container
45	RANGE ONLY 40W 120V APPL BULB
46	Lens, Dispenser Light
