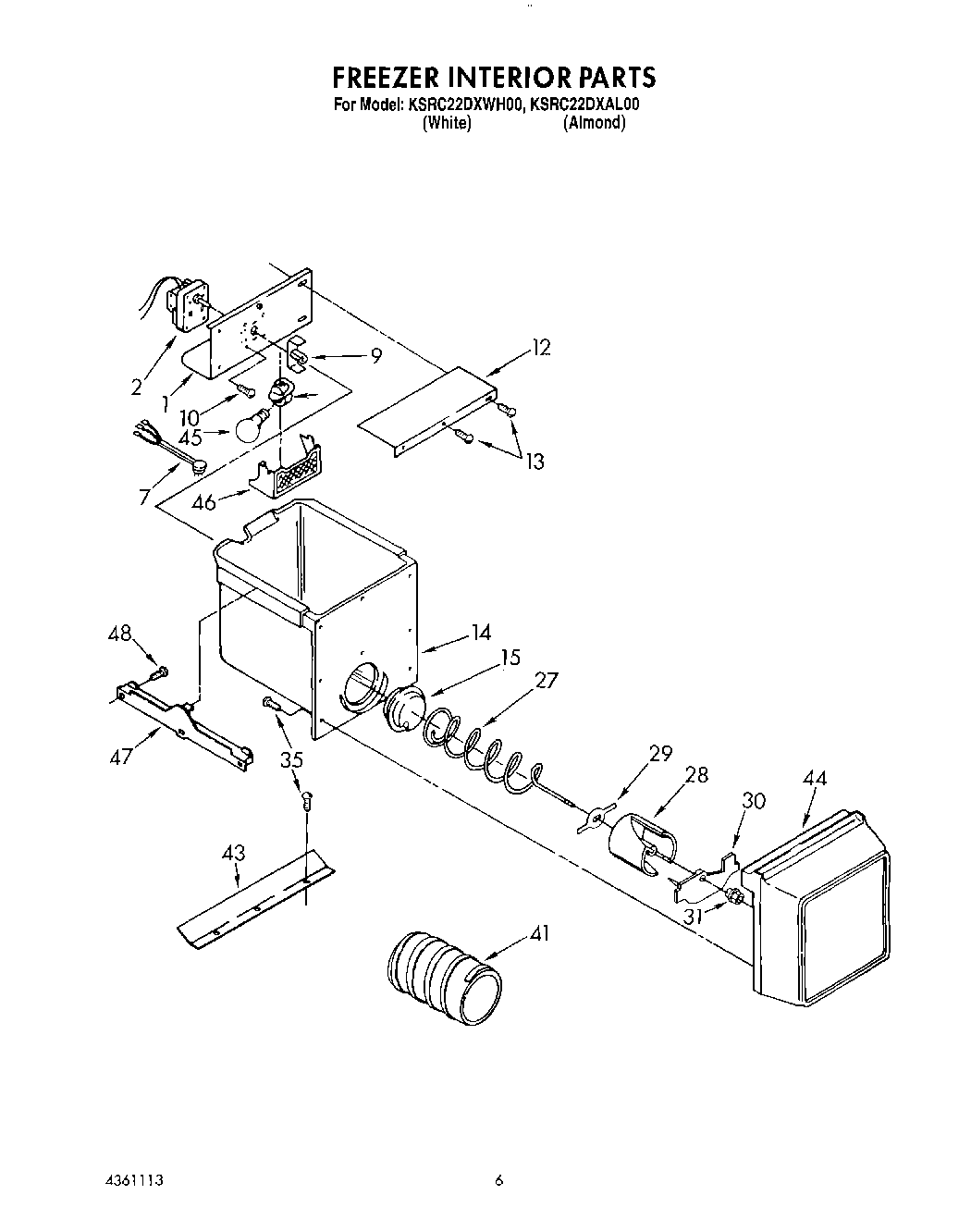

KSRC22DXAL00 04 – FREEZER INTERIOR

Products

Position	Product
NI	4387478 Whirlpool Refrigerator Light Socket
NI	WP1115374 Whirlpool Refrigerator Clip
NI	303776 Whirlpool Dishwasher Screw
1	WPW10284487 Whirlpool Refrigerator Bracket
2	Motor
7	Wiring Assembly, Ice Dispenser
9	COUPLING AUGER MOTOR
10	WP489478 Whirlpool Refrigerator Screw
13	WP489128 Whirlpool Refrigerator Screw
14	WP2196089 Whirlpool Refrigerator Container
15	W10749708 Whirlpool Refrigerator Coupling
27	Conveyor
29	4388736 Whirlpool Refrigerator Ice Dispenser Bucket Bin Conveyor Auger Drum
30	Baffle
31	Nut, Bearing
35	WP488787 Whirlpool Refrigerator Screw
41	4317870 Whirlpool Refrigerator Auger Sleeve
43	Deflector, Ice Container
44	Front Cover
45	RANGE ONLY 40W 120V APPL BULB
46	Lens, Dispenser Light
47	W10845585 Whirlpool Refrigerator Track
47	W10845583 Whirlpool Refrigerator Track
48	718257 Whirlpool Dishwasher Screw
