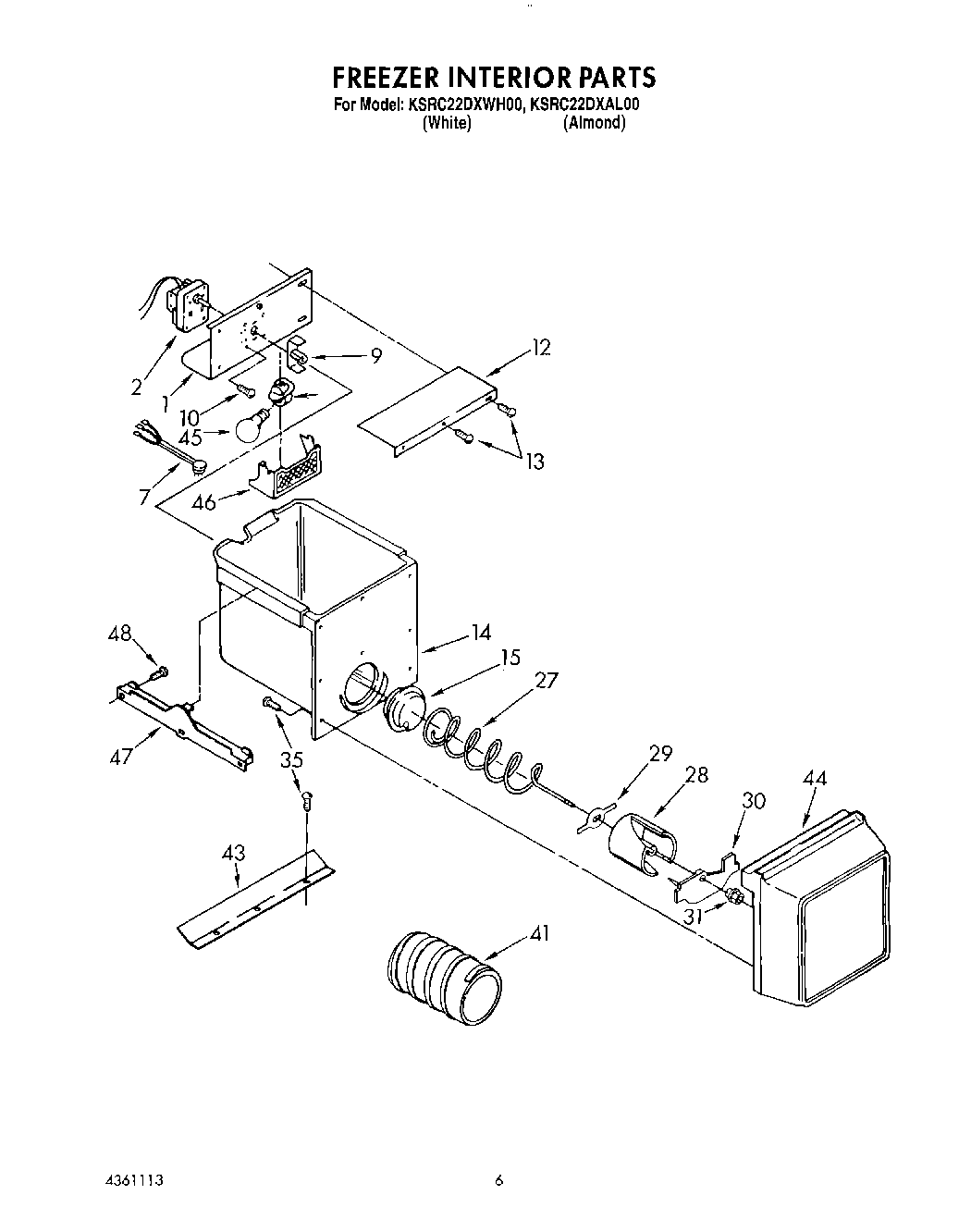

KSRC22DXWH00 04 – FREEZER INTERIOR

KSRC22DXWH00 04 – FREEZER INTERIOR

Written by

in

KSRC22DXWH00 04 – FREEZER INTERIOR

Products

PositionProduct
NI4387478 Whirlpool Refrigerator Light Socket
NIWP1115374 Whirlpool Refrigerator Clip
NI303776 Whirlpool Dishwasher Screw
1WPW10284487 Whirlpool Refrigerator Bracket
2Motor
7Wiring Assembly, Ice Dispenser
9COUPLING AUGER MOTOR
10WP489478 Whirlpool Refrigerator Screw
13WP489128 Whirlpool Refrigerator Screw
14WP2196089 Whirlpool Refrigerator Container
15W10749708 Whirlpool Refrigerator Coupling
27Conveyor
294388736 Whirlpool Refrigerator Ice Dispenser Bucket Bin Conveyor Auger Drum
30Baffle
31Nut, Bearing
35WP488787 Whirlpool Refrigerator Screw
414317870 Whirlpool Refrigerator Auger Sleeve
43Deflector, Ice Container
44Front Cover
45RANGE ONLY 40W 120V APPL BULB
46Lens, Dispenser Light
47W10845585 Whirlpool Refrigerator Track
47W10845583 Whirlpool Refrigerator Track
48718257 Whirlpool Dishwasher Screw
