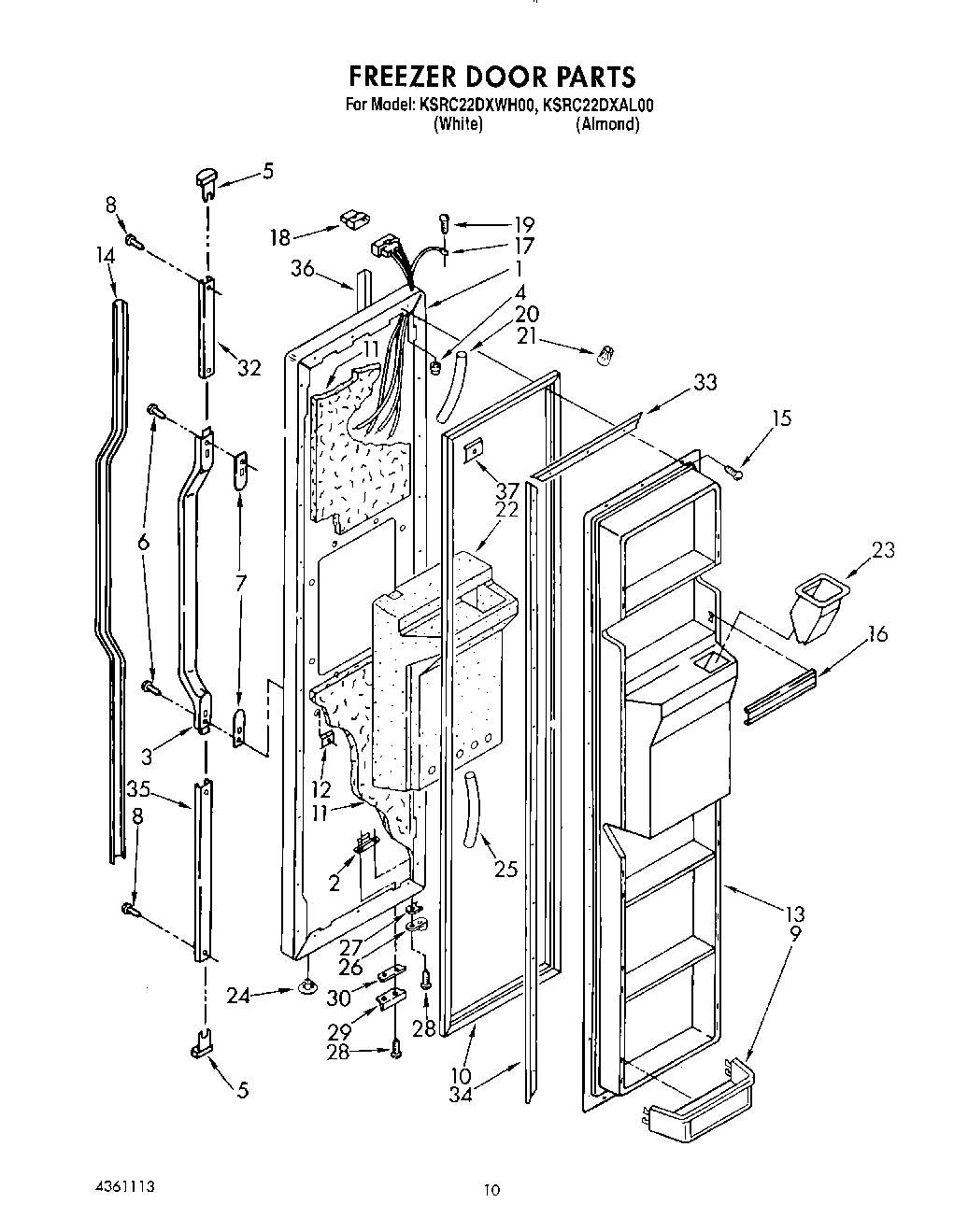

KSRC22DXWH00 07 – FREEZER DOOR

Products

Position	Product
1	Freezer, Door Panel (Also Order Item 11) (Almond)
1	Freezer, Door Panel (Also Order Item 11) (White)
2	Tap Plate
3	Handle
4	Seal, Hinge Pin
5	End Cap (2)
6	WP488729 Whirlpool Refrigerator Door Screw
7	Spacer, Handle
8	Screw
9	Shelf Bin (4)
10	2188405A Whirlpool Refrigerator Door Gasket
11	WPL 876029
12	Screw Anchor (2)
13	Panel, Interior Door
14	Insert, Handle (White)
14	Insert, Handle (Almond)
15	WP489069 Whirlpool Compactor Screw
16	Trim, Door Shelf
17	Harness, Door (Includes Item 18)
18	Connector, Plug
19	WP488234 Whirlpool Air Conditioner Screw
20	Tube, Door Wiring
21	Wire Connector
22	Insulation, Dispenser
23	Chute, Ice
24	Hole Plug (2)
25	Tube, Door Wiring
26	WPW10329686 Whirlpool Door Cam Black
26	4318165 Whirlpool Refrigerator Door Closure Cam Kit
27	WP1104787 Whirlpool Refrigerator Shim
28	WP489399 Whirlpool Refrigerator Screw
29	Bracket, Door Stop
30	Shim
32	Retainer, Insert
33	Retainer, Gasket
34	Retainer, Gasket
35	Retainer, Insert
36	Trim, Door
37	WP939101 Whirlpool Refrigerator Plate
