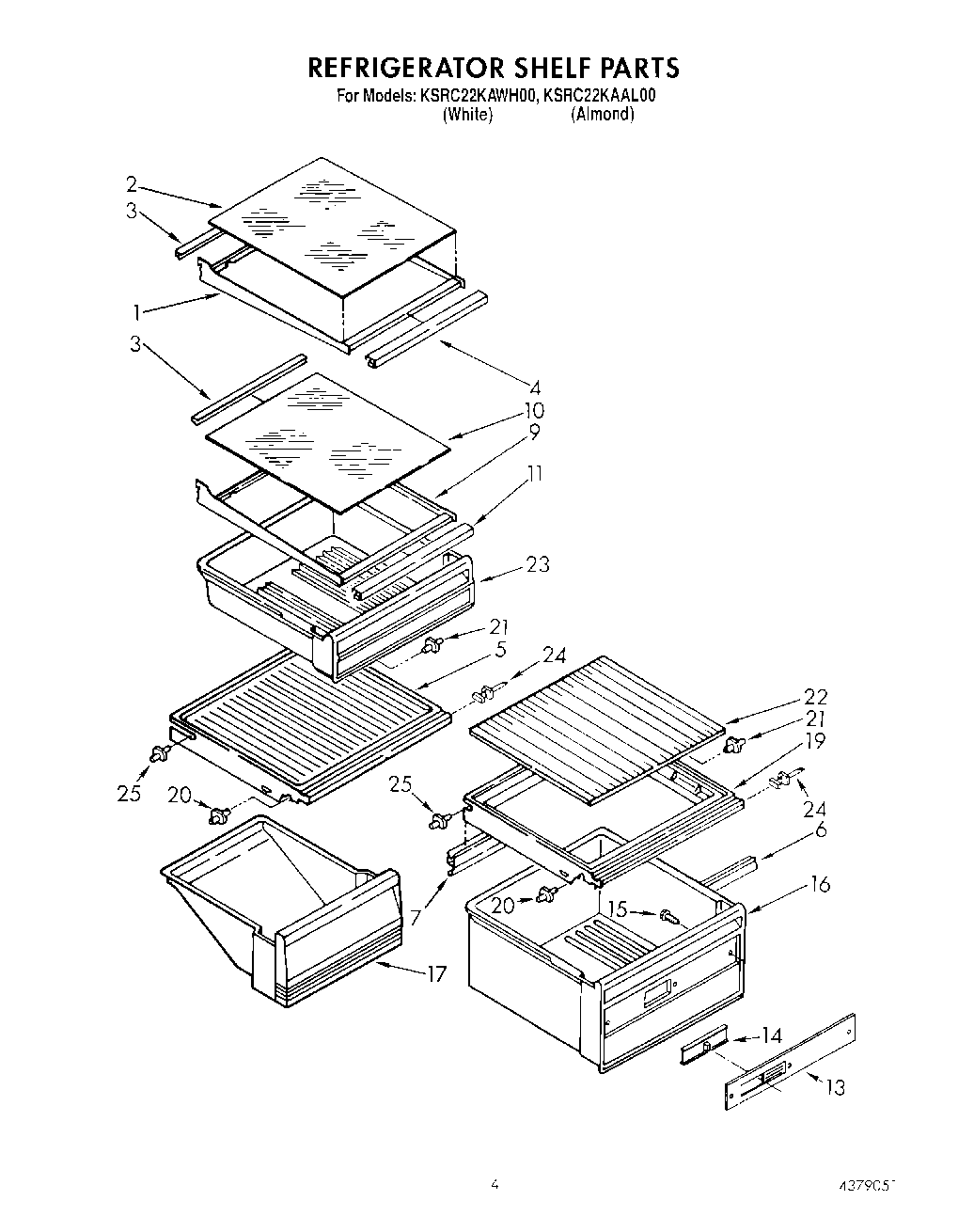

KSRC22KAAL00 03 – REFRIGERATOR SHELF

Products

Position	Product
1	Shelf Assembly, Cantilever (2)
2	Glass, Shelf
3	Retainer
4	Gasket, Front
5	WP2148298 Whirlpool Refrigerator Deli Drawer Cover Top Pan
6	Gasket, Crisper (Front)
7	Gasket, Crisper (Rear)
9	Pan Shelf & Slide Assembly
10	Glass, Shelf
11	Gasket (Front)
13	Front, Crisper
14	Slide, Humidity
15	Screw (3)
16	Pan, Crisper
17	Meat Pan
19	WP1126289 Whirlpool Refrigerator Cover
20	WP2149540 Whirlpool Shelf Support
21	4388538 Whirlpool Refrigerator Stud Shelf Kit (White)
22	Glass, Crisper
23	Utility Bin
25	Stud (2)
