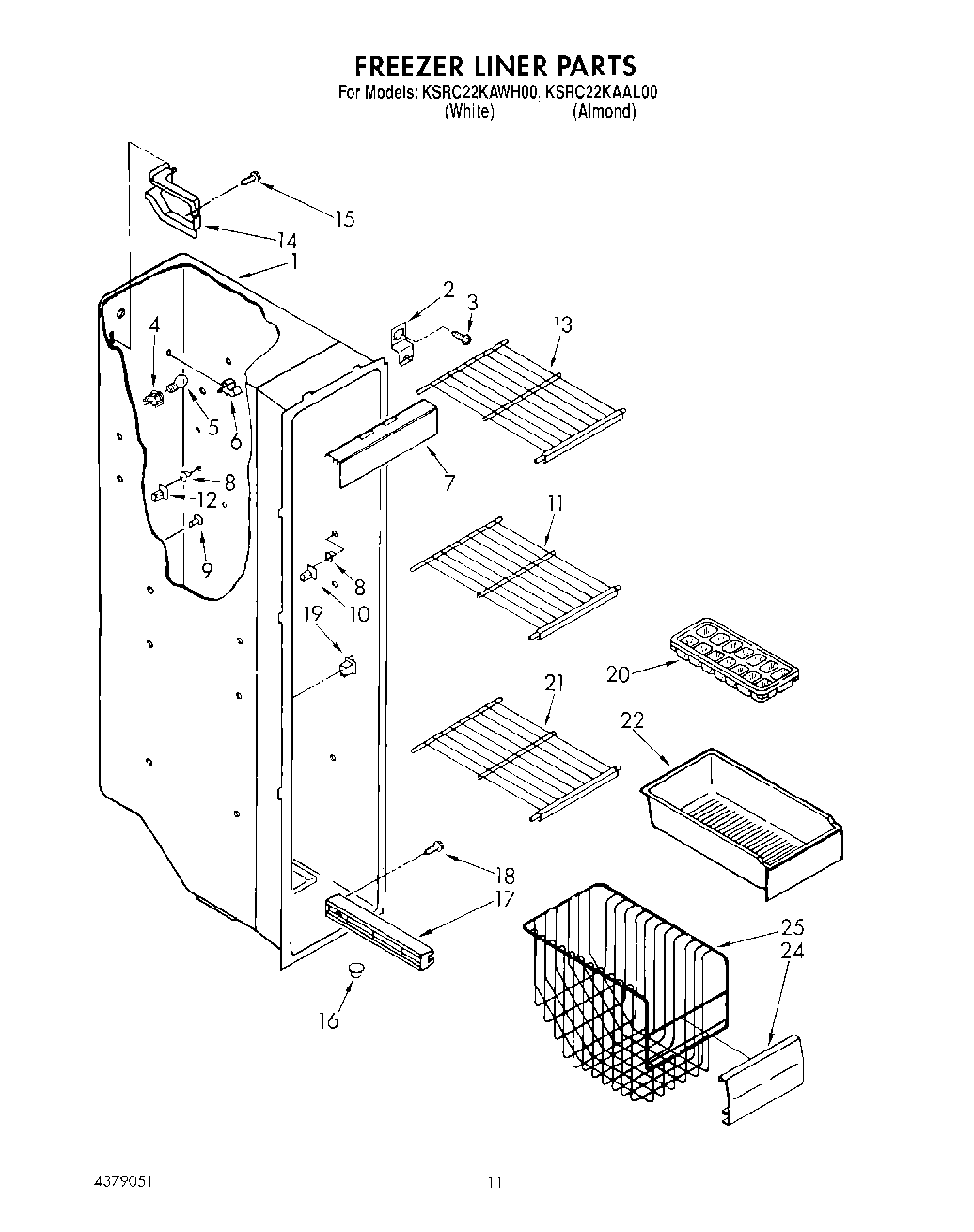

KSRC22KAAL00 07 – FREEZER LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Clip, Support (2)
3	WP489478 Whirlpool Refrigerator Screw
4	SOCKET
5	RANGE ONLY 40W 120V APPL BULB
6	2215823 Whirlpool Refrigerator Clip
7	WP2155595 Whirlpool Refrigerator Light Lens
8	Stud, Support
9	Grommet (8)
10	Stud, Front R.S.
11	Shelf
12	Stud, Rear R.S.
13	Shelf (2)
14	Cover, Wiring
15	WP488729 Whirlpool Refrigerator Door Screw
16	Drain Ferrule
17	Shelf Track (Right Side (4))
17	Shelf Track (Left Side (4))
18	W11693756 Whirlpool Screw Assembly
19	W11384469 Whirlpool Door Switch
20	WP841180A Whirlpool Microwave Glass Turntable Tray
21	Shelf (2)
22	PAN-ICE
24	Front, Basket
25	Basket, Lower
