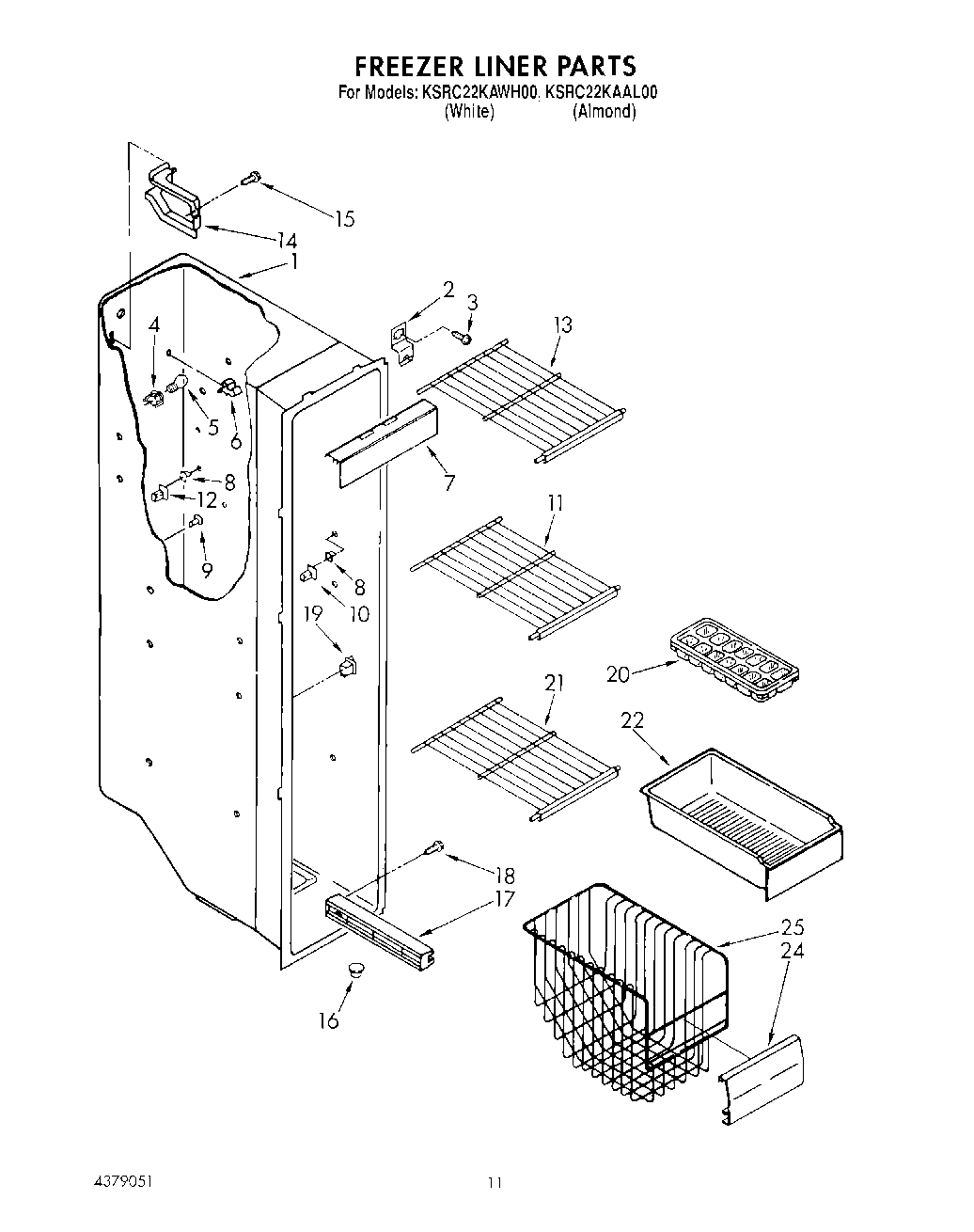

KSRC22KAWH00 07 – FREEZER LINER

KSRC22KAWH00 07 – FREEZER LINER

Written by

in

KSRC22KAWH00 07 – FREEZER LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Clip, Support (2)
3WP489478 Whirlpool Refrigerator Screw
4SOCKET
5RANGE ONLY 40W 120V APPL BULB
62215823 Whirlpool Refrigerator Clip
7WP2155595 Whirlpool Refrigerator Light Lens
8Stud, Support
9Grommet (8)
10Stud, Front R.S.
11Shelf
12Stud, Rear R.S.
13Shelf (2)
14Cover, Wiring
15WP488729 Whirlpool Refrigerator Door Screw
16Drain Ferrule
17Shelf Track (Left Side (4))
17Shelf Track (Right Side (4))
18W11693756 Whirlpool Screw Assembly
19W11384469 Whirlpool Door Switch
20WP841180A Whirlpool Microwave Glass Turntable Tray
21Shelf (2)
22PAN-ICE
24Front, Basket
25Basket, Lower
