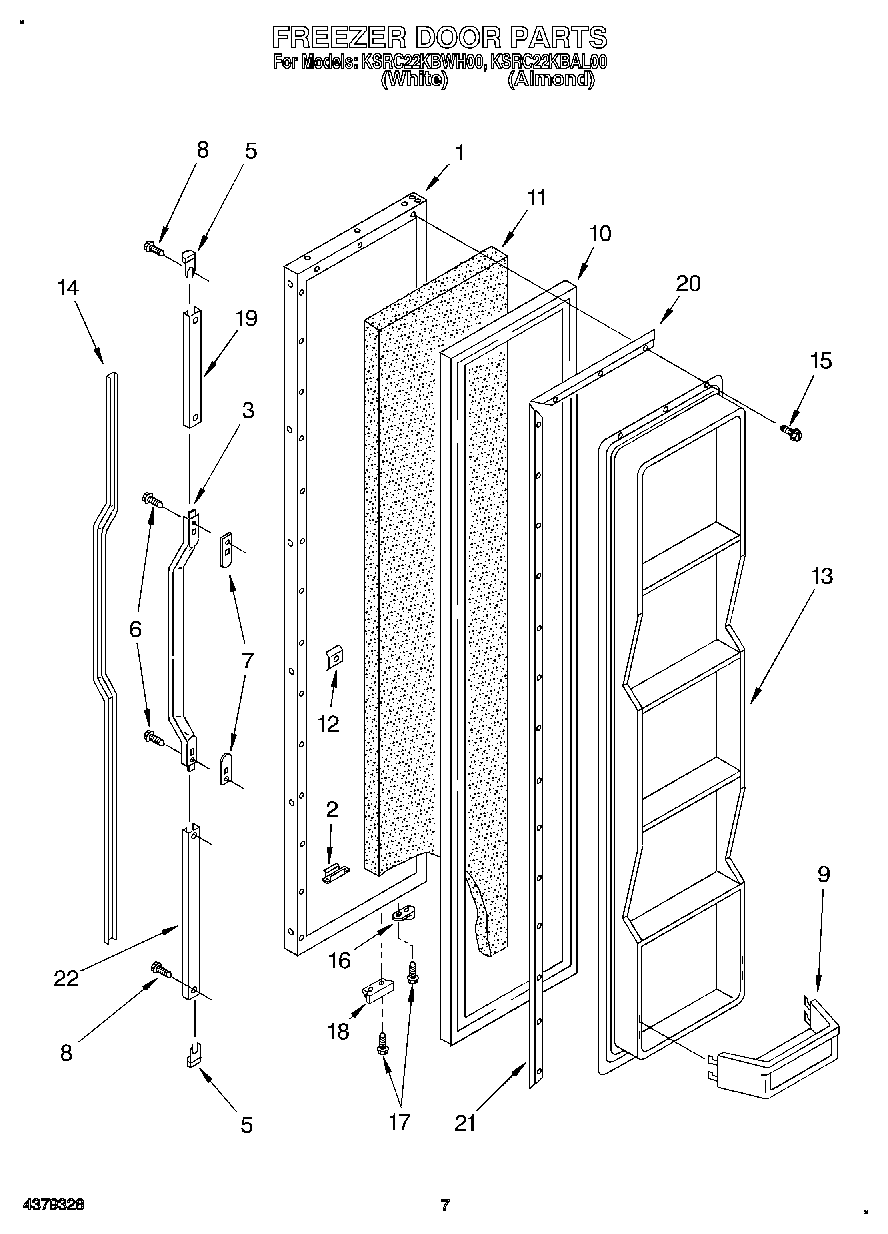

KSRC22KBAL00 05 – FREEZER DOORadmin2025-04-26T12:18:06+00:00KSRC22KBAL00 05 – FREEZER DOOR
Products
| Position | Product |
|---|
| 1 | Freezer Door Panel (Also Order Item No.11) (Almond) |
| 1 | Freezer Door Panel (Also Order Item No.11) (White) |
| 2 | Tap, Plate |
| 3 | Handle |
| 5 | End Cap (2) |
| 6 | WP488729 Whirlpool Refrigerator Door Screw |
| 7 | Spacer, Handle |
| 8 | Screw |
| 9 | Shelf Bin (4) |
| 10 | 2188405A Whirlpool Refrigerator Door Gasket |
| 11 | WPL 876029 |
| 12 | Screw Anchor (2) |
| 13 | Panel, Interior Door |
| 14 | Insert, Handle (Almond) |
| 14 | Insert, Handle (White) |
| 15 | WP489069 Whirlpool Compactor Screw |
| 16 | 4318165 Whirlpool Refrigerator Door Closure Cam Kit |
| 17 | WP999367 Whirlpool Refrigerator Screw |
| 18 | Bracket, Door Stop |
| 19 | Retainer, Insert |
| 20 | Retainer, Gasket |
| 21 | Retainer, Gasket |
| 22 | Retainer, Insert |
