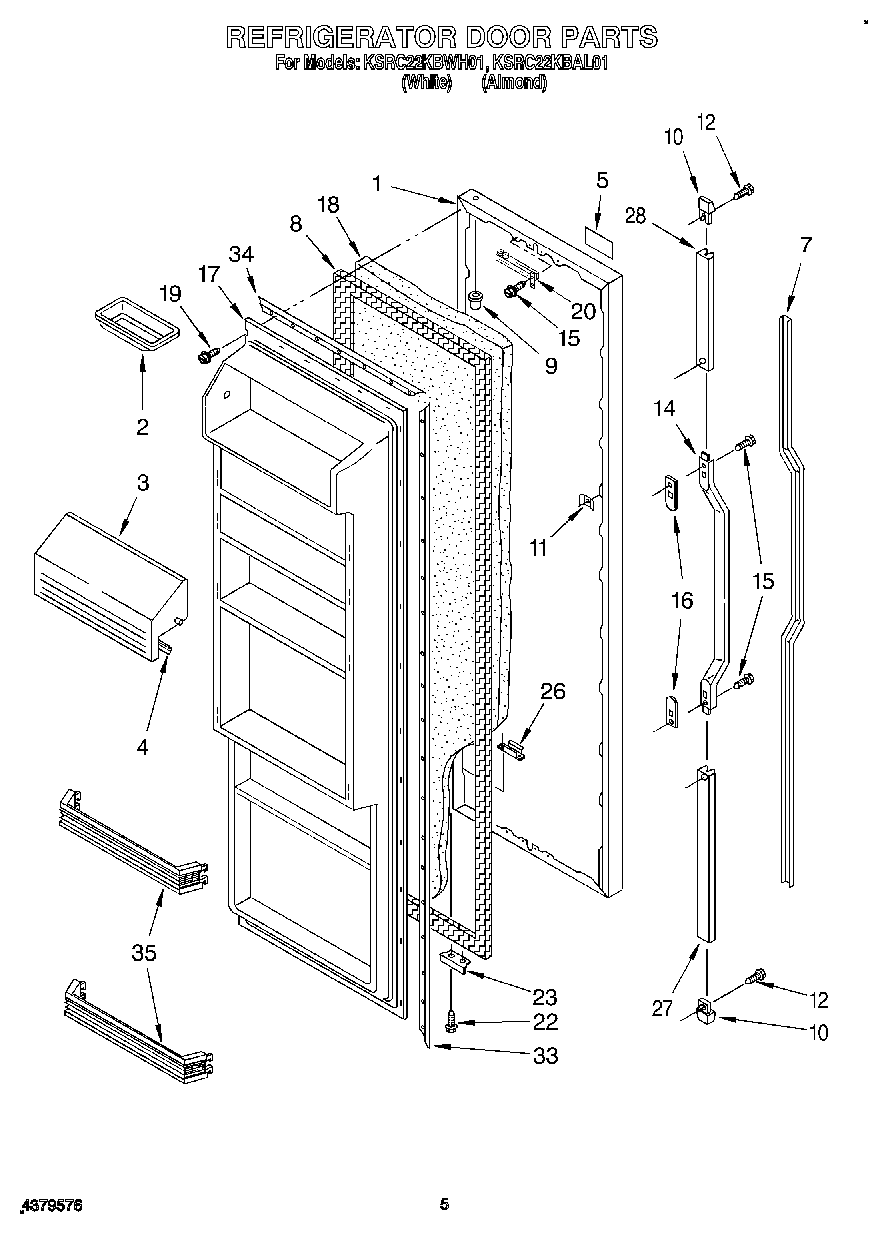

KSRC22KBAL01 04 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door Panel (Almond (Also Order Item 18))
1	Refrigerator Door Panel (White)
2	Butter, Tray
3	Compartment Door,
4	Gasket, Utility Door
5	Nameplate (Almond Model)
5	Nameplate (White Model)
7	Insert, Handle (Almond)
7	Insert, Handle (White)
8	2188404A Whirlpool Refrigerator Door Gasket
9	Cap, Hinge Sleeve (2)
10	End Cap (2)
11	Screw Anchor (2)
12	Screw
14	Handle
15	WP488729 Whirlpool Refrigerator Door Screw
16	Spacer, Handle
17	Panel, Interior Door
18	WPL 876029
19	WP489069 Whirlpool Compactor Screw
20	Door Closer, Upper Cam
22	WP999367 Whirlpool Refrigerator Screw
23	Bracket, Door Stop
26	Tap, Plate
27	Retainer, Insert
28	Retainer, Insert
33	Retainer, Gasket
34	Gasket Retainer, Top & Bottom
35	Shelf Bin (4)
35	Almond Handle Insert
35	Black
35	Black Grille Kit
35	Woodgrain
35	Handle Insert (Black)
35	Trim Kit Trim Kit Panel
35	White
