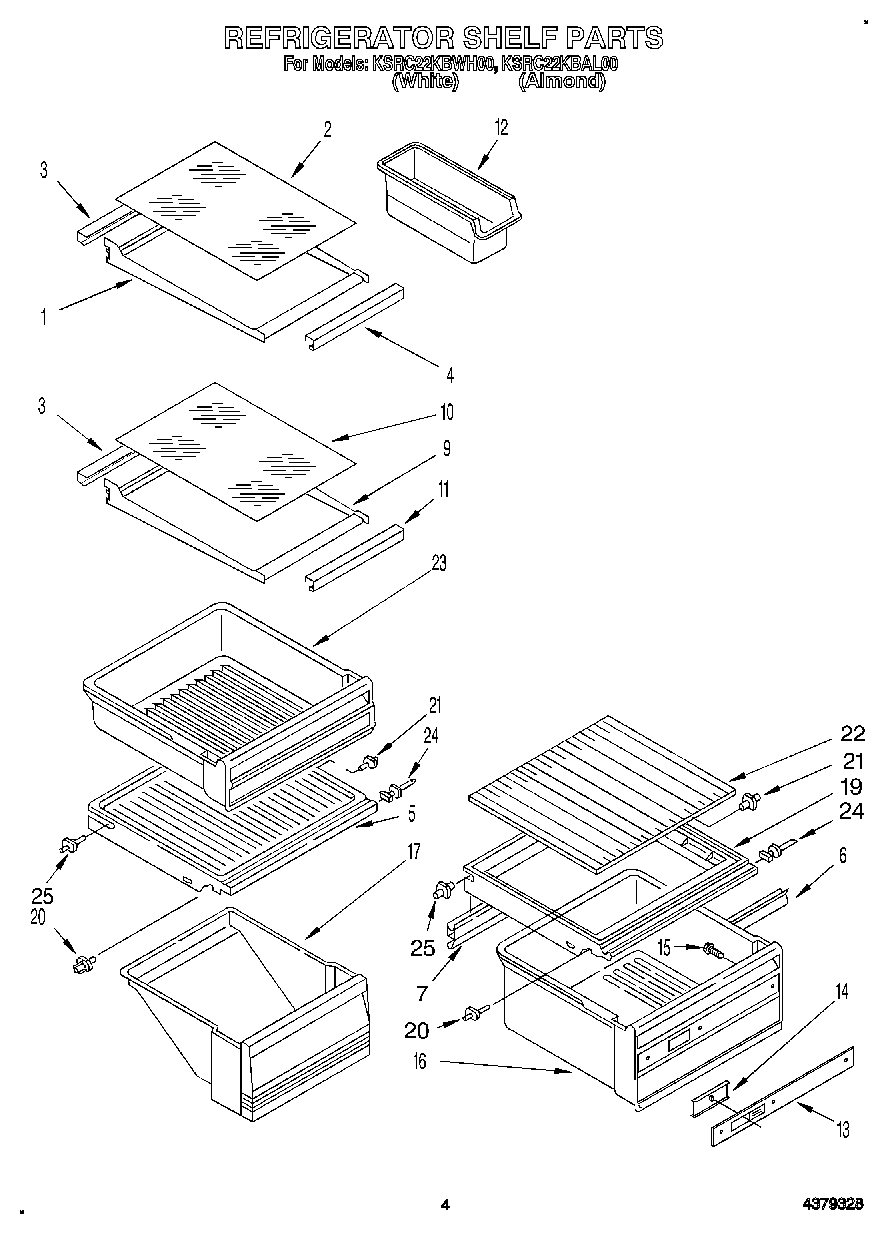

KSRC22KBWH00 03 – REFRIGERATOR SHELF

KSRC22KBWH00 03 – REFRIGERATOR SHELF

Written by

in

KSRC22KBWH00 03 – REFRIGERATOR SHELF

Products

PositionProduct
1Shelf Assembly, Cantilever (2)
2Glass, Shelf
3Retainer
4Gasket, Front
5WP2148298 Whirlpool Refrigerator Deli Drawer Cover Top Pan
6Gasket, Crisper (Front)
7Gasket, Crisper (Rear)
9Pan Shelf & Slide Assembly
10Glass, Shelf
11Gasket (Front)
12WP982704 Whirlpool Refrigerator Container
13Front, Crisper
14Slide, Front
15Screw (3)
16Pan, Crisper
17Meat Pan
19WP1126289 Whirlpool Refrigerator Cover
20WP2149540 Whirlpool Shelf Support
214388538 Whirlpool Refrigerator Stud Shelf Kit (White)
22Glass, Crisper
23Bin, Utility
25Stud (2)
