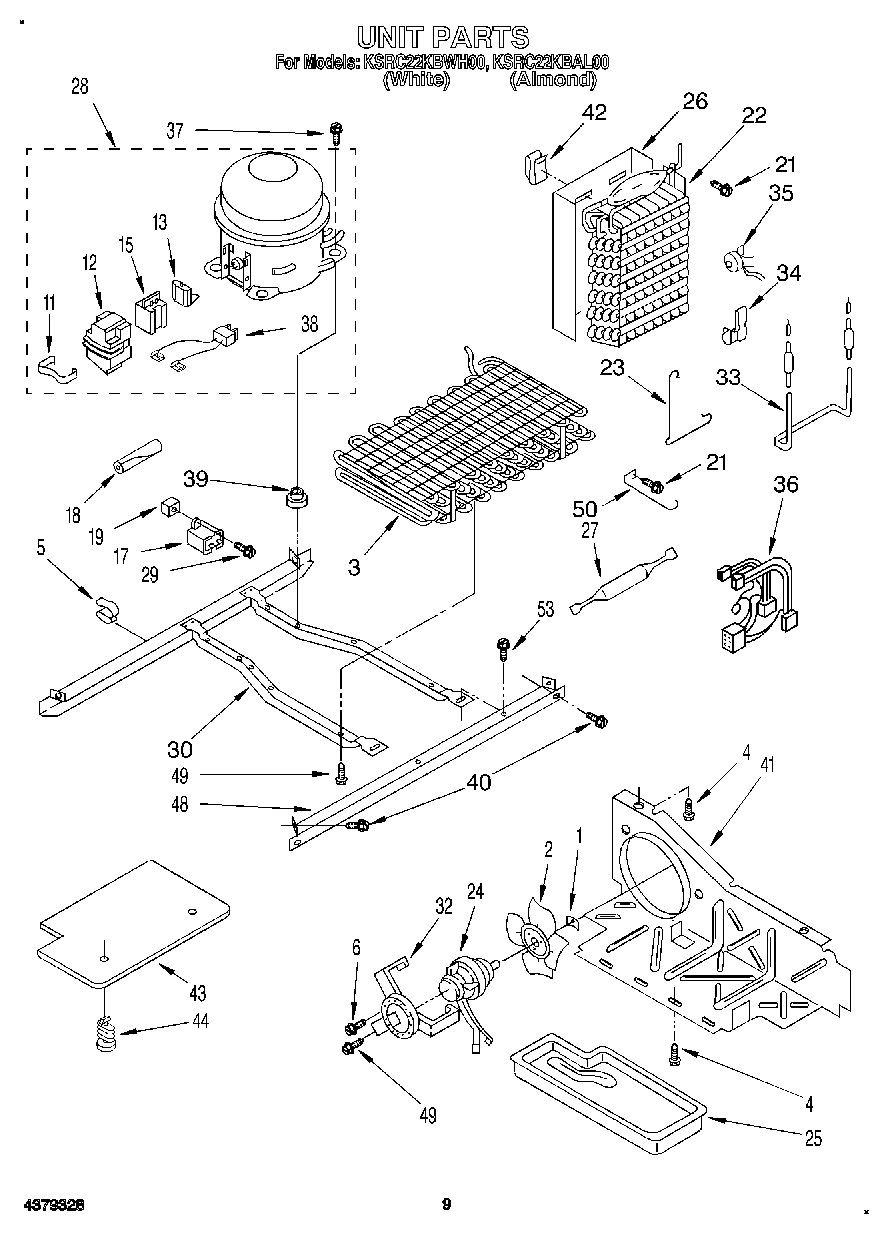

KSRC22KBWH00 06 – UNIT

Products

Position	Product
1	WP486692 Whirlpool Refrigerator Nut
2	Fan, Blade
3	Condenser Assembly
4	WP489464 Whirlpool Refrigerator Screw
5	Clip, Wire
6	681390 Whirlpool Refrigerator Screw
11	Strap
12	Cover
13	4388953 Whirlpool Overload Relay
15	Relay (See Overload)
17	Capacitor
18	SLEEVE
19	Screw Grommet
21	WP489478 Whirlpool Refrigerator Screw
22	WP2188822 Whirlpool Refrigerator Evaporator
23	Clamp
24	833697 Whirlpool Condenser Fan Motor
25	Tray, Evaporator
26	Heat Shield
27	W10843121 Whirlpool Refrigerator Tube
28	876765 Whirlpool Primary Mounting Kit Refrigerator
28	Compressor (Includes Items 11, 12, 13, 15, 17 & 38) (Also Order)
29	W11693756 Whirlpool Screw Assembly
30	2304903 Whirlpool Refrigerator Frame
32	Fan, Motor Bracket
33	Heater, Defrost
34	Clip
35	WPW10225581 Whirlpool Refrigerator Defrost Thermostat
36	Wiring Assembly, Intermediate
38	WP2172890 Whirlpool Refrigerator Wire
39	876811 Whirlpool Grommet
40	489340 Whirlpool Refrigerator Screw
41	W10896764 Whirlpool Refrigerator Air Baffle
42	Clip, Heat Shield
43	Cover-Unit Btm.
44	489396 Whirlpool Refrigerator Clip
48	Unit Mounting Rail
49	Screw, 8 x 3/8
50	1105612 Whirlpool Fan Guard
53	VALVE, ACCESS (1/2“)
53	WP978025 Whirlpool Refrigerator Valve
53	978030 Whirlpool Refrigerator Valve
53	VALVE, ACCESS (5/8“)
53	978027 Whirlpool Refrigerator Primary Valve
53	978026 Whirlpool Refrigerator Primary Valve
53	876764 Whirlpool Refrigerator Primary Valve
53	WP489427 Whirlpool Refrigerator Screw
