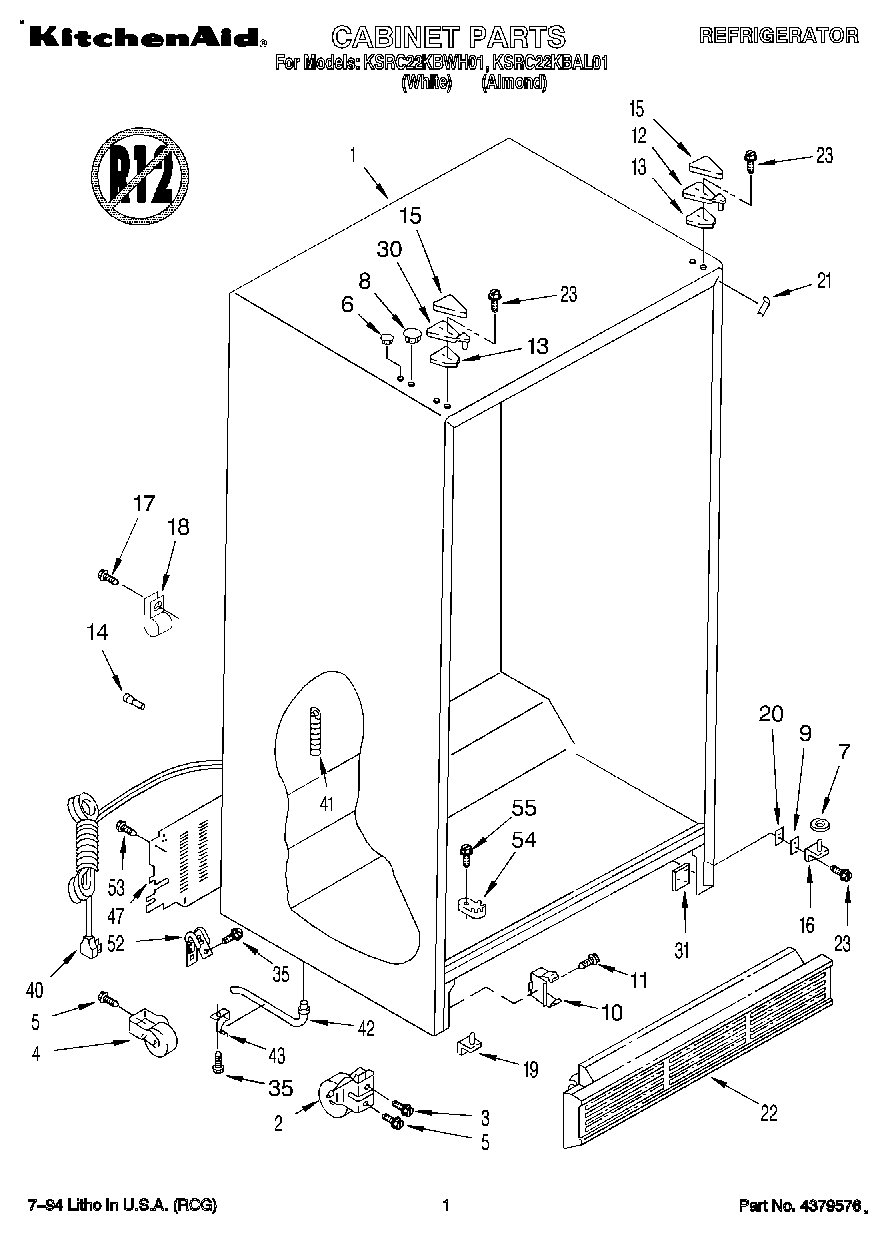

KSRC22KBWH01 01 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Front Roller (2)
3	Screw, 5/16-24 x 1-1/4
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	Screw, 1/4-28 x 1/2 (2)
6	Hole Plug (Almond)
6	Hole, Plug (White)
7	Washer, 7/16
8	Hole Plug (White)
8	Hole Plug (Almond)
9	Shim, Bottom Hinge
10	WP2155013 Whirlpool Refrigerator Clip
12	Hinge Top (R.H.)
13	Shim, Hinge Top
14	Tube, Water Inlet
15	1119787 Whirlpool Refrigerator Hinge Cover
16	Hinge Bottom (R.H) (Chrome)
17	WP489478 Whirlpool Refrigerator Screw
18	WP488366 Whirlpool Refrigerator Clamp
19	Hinge Bottom (L.H) (Chrome)
20	Spacer, Hinge
21	Filler, Wrapper (White)
21	Filler, Wrapper (Almond)
22	Grille (Almond)
22	Grille (White)
23	WP999367 Whirlpool Refrigerator Screw
30	WP2196046 Whirlpool Refrigerator Door Hinge
31	Tap Plate (2)
35	WP489464 Whirlpool Refrigerator Screw
40	Cord, Service
41	W11566763 Whirlpool Fitting
42	WP1108438 Whirlpool Refrigerator Extension
43	WP1108439 Whirlpool Refrigerator Clip
47	WP2188756 Whirlpool Refrigerator Unit Cover
52	549193 Whirlpool Refrigerator Power Clamp
54	WPW10329686 Whirlpool Door Cam Black
55	WP489483 Whirlpool Screw
