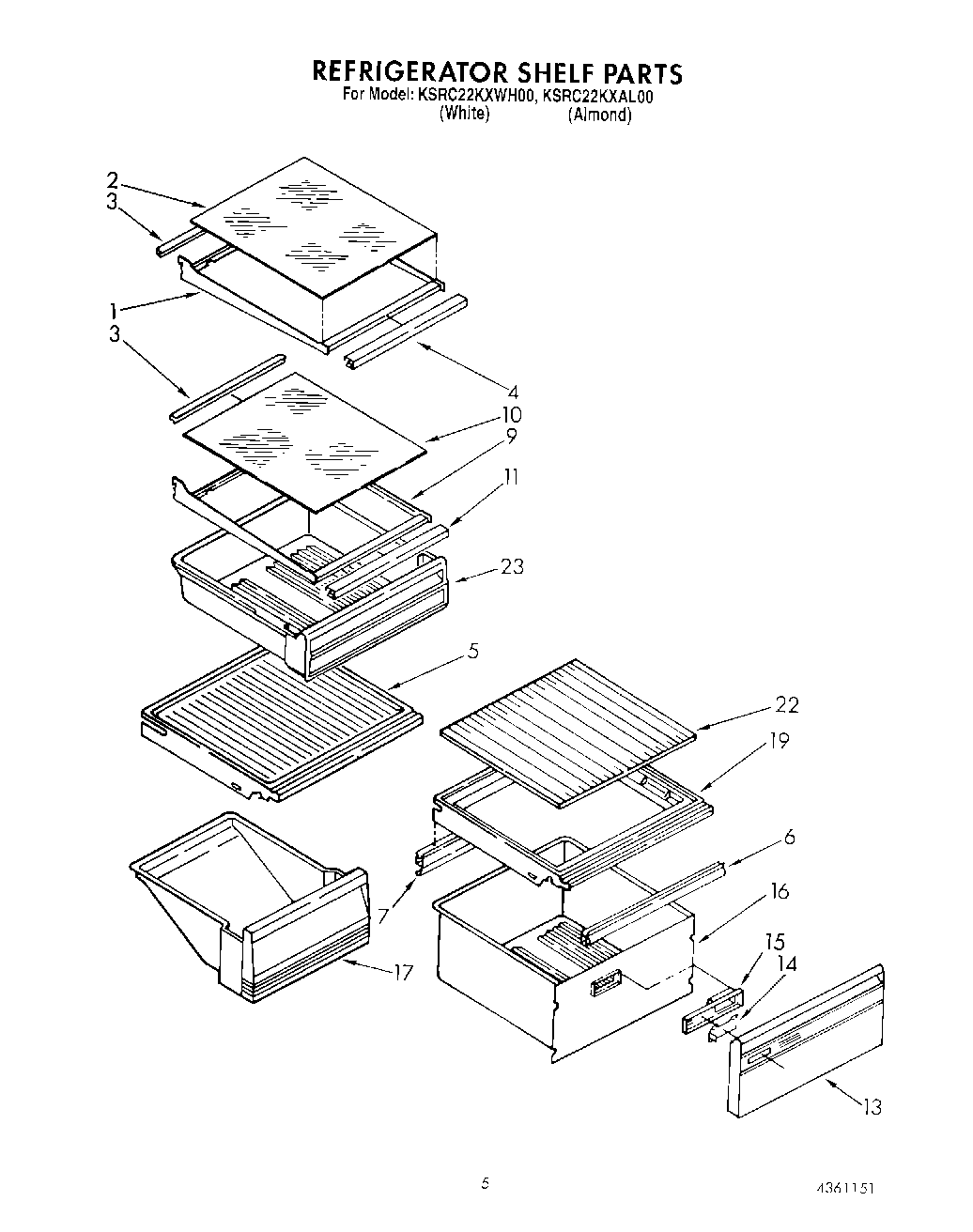

KSRC22KXAL00 03 – REFRIGERATOR SHELF

Products

PositionProduct
1Shelf Assembly, Cantilever (2)
2Glass, Shelf
3Retainer
4Gasket, Front
5WP2148298 Whirlpool Refrigerator Deli Drawer Cover Top Pan
6Gasket, Crisper (Front)
7Gasket, Crisper (Rear)
9Pan Shelf & Slide Assembly
10Glass, Shelf
11Gasket (Front)
13Front, Crisper
14Slide, Humidity Control
15Housing, Humidity Control
16WP2148279 Whirlpool Refrigerator Crisper Pan
17Meat Pan
19WP1126289 Whirlpool Refrigerator Cover
22Glass, Crisper
23Utility Bin
