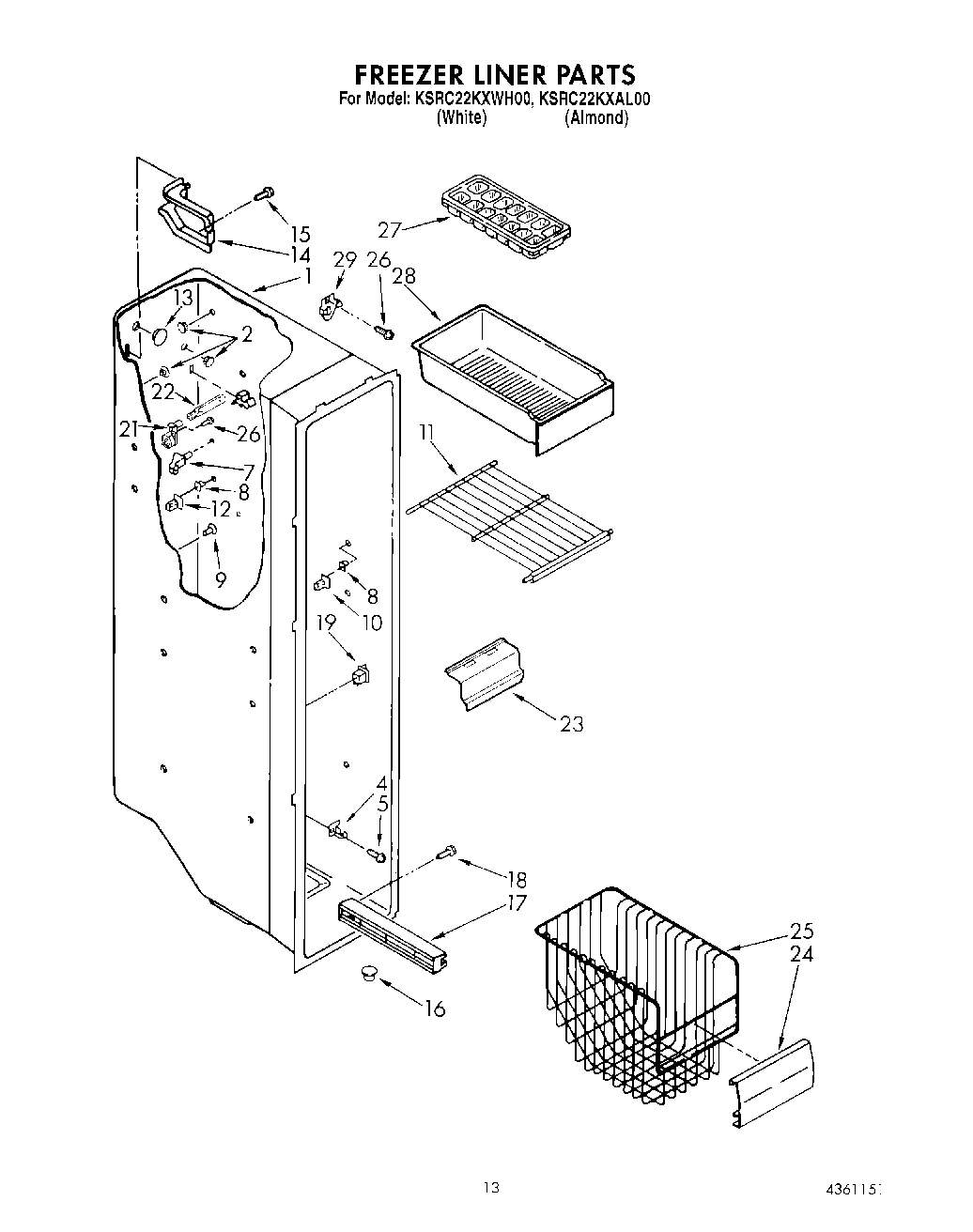

KSRC22KXAL00 08 – FREEZER LINER

Products

Position	Product
NI	718257 Whirlpool Dishwasher Screw
NI	2215823 Whirlpool Refrigerator Clip
1	Liner (Not A Serviceable Part)
2	WP941839 Whirlpool Refrigerator Button Plug
4	Evaporator, Support
7	4388405 Whirlpool Refrigerator Shelf Stud
8	Stud, Support
9	Grommet (8)
10	Stud, Front R.S.
11	Shelf (2)
11	Shelf (2)
12	Stud, Rear R.S.
13	WPL 655411
14	Cover, Wiring
15	WP488729 Whirlpool Refrigerator Door Screw
16	Fitting, Drain
17	Shelf Track (Left Side (4))
17	Shelf Track (Right Side (4))
18	W11693756 Whirlpool Screw Assembly
19	W11384469 Whirlpool Door Switch
21	Socket Assembly
22	WP548049 Whirlpool Refrigerator Light Bulb
23	Lens, Light
24	Basket, Lower
25	Front, Basket
26	WP489478 Whirlpool Refrigerator Screw
27	WP841180A Whirlpool Microwave Glass Turntable Tray
28	PAN-ICE
29	Clip, Support (2)
