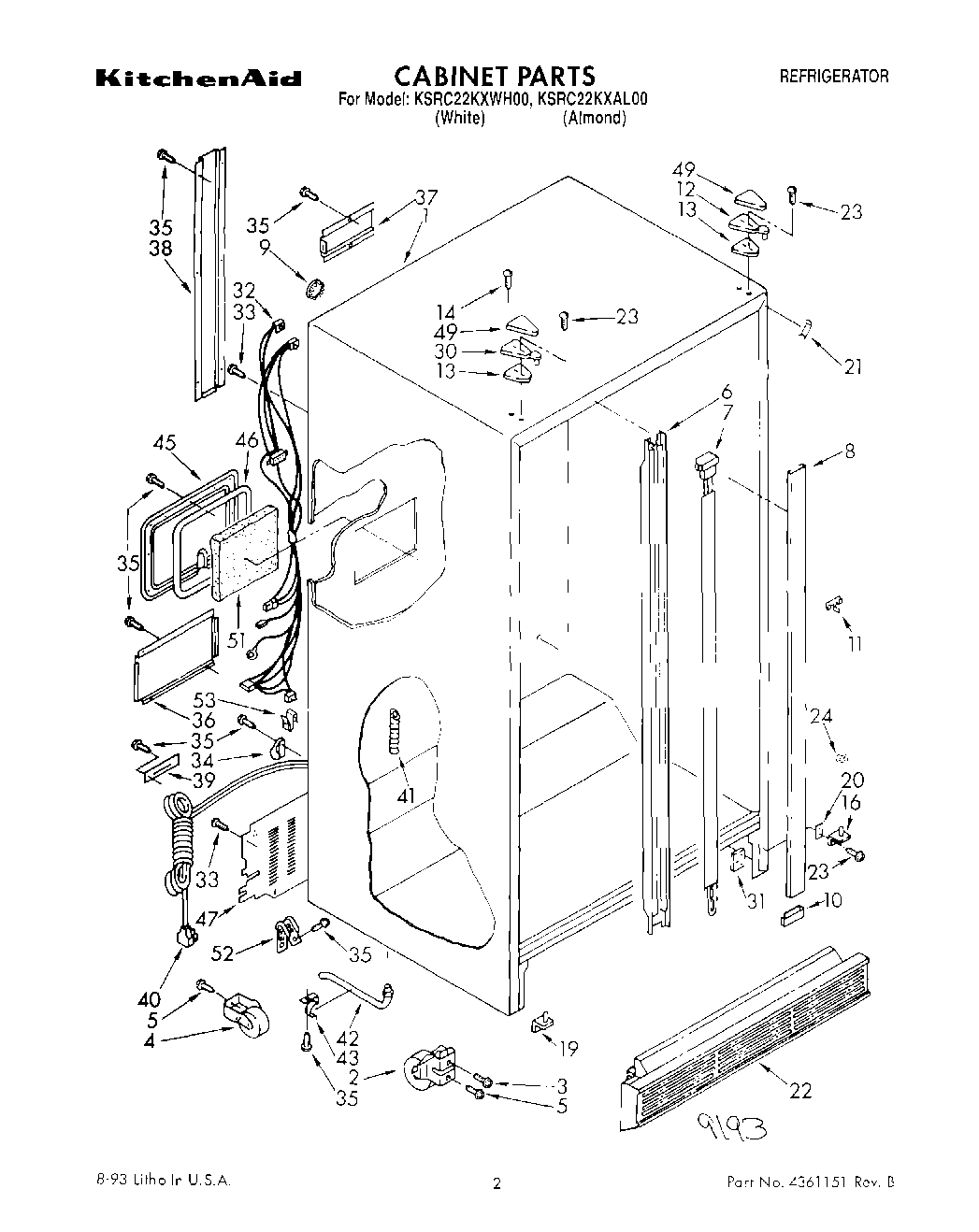

KSRC22KXWH00 01 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Front Roller (2)
3	Screw, 5/16-24 x 1-1/4
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	Screw, 1/4-28 x 1/2 (2)
6	Mullion Rail
7	Heater, Mullion
8	Front Mullion Rail (Almond)
8	Front Mullion Rail
9	Hole Seal
9	WPL 1120224
10	Filler Bottom Mullion (Almond)
10	Filler Bottom Mullion (White)
11	Clip, Ground
12	Hinge, Top (L.H.)
13	Shim, Hinge Top
14	Screw
16	Hinge Bottom (R.H)
19	Hinge Bottom (L.H)
20	Shim, Bottom Hinge
20	Spacer, Hinge
21	Filler, Wrapper (Almond)
21	Filler, Wrapper (White)
22	Grille (White)
22	Grille (Almond)
23	Screw
24	Washer, 7/16
30	Hinge, Top
31	Tap Plate (2)
32	Cabinet Harness
33	WP250830 Whirlpool Refrigerator Screw
34	Clamp
35	WP489464 Whirlpool Refrigerator Screw
36	Cover, Wiring
37	Wiring Shield, Short
38	Wiring Shield, Long
39	Tube Clamp (2)
40	Cord, Service
41	Drain Ferrule
42	WP1108438 Whirlpool Refrigerator Extension
43	WP1108439 Whirlpool Refrigerator Clip
45	Cover, Plug
46	Sealing Gasket
47	Cover, Unit
49	1119787 Whirlpool Refrigerator Hinge Cover
51	Insulation
52	549193 Whirlpool Refrigerator Power Clamp
53	Clip, Wire (2)
