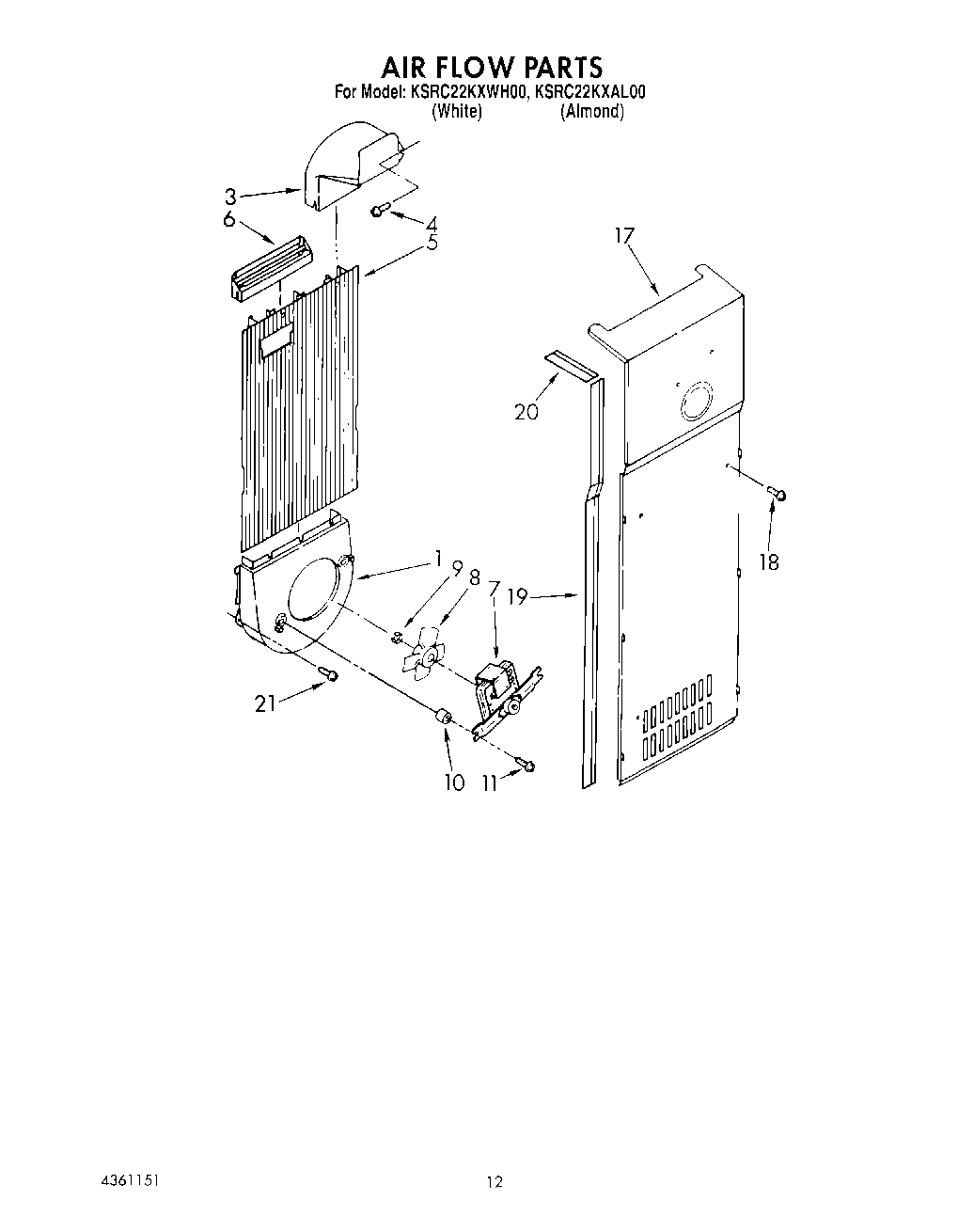

KSRC22KXWH00 07 – AIR FLOW

Products

Position	Product
1	Fan Scroll
3	Air Scoop
4	WP488729 Whirlpool Refrigerator Door Screw
5	Air Duct Freezer
6	Diffuser, Air Duct
7	Fan Motor
8	Blade, Fan
9	Ring, Compression
10	Fan Grommet (2)
11	Screw (2)
17	Cover, Evaporator
18	SCREW
19	Gasket, Evaporator Cover (2)
20	Gasket, Evaporator Cover Top (2)
21	WP489478 Whirlpool Refrigerator Screw
