KSRC22KXWH00 09 – CONTROL, LIT/OPTIONAL

Products

Position	Product
	WPL LIT2154814
	WPL LIT1126372
	WPL LIT1126365
	Torx Key
	WPL LIT4361151

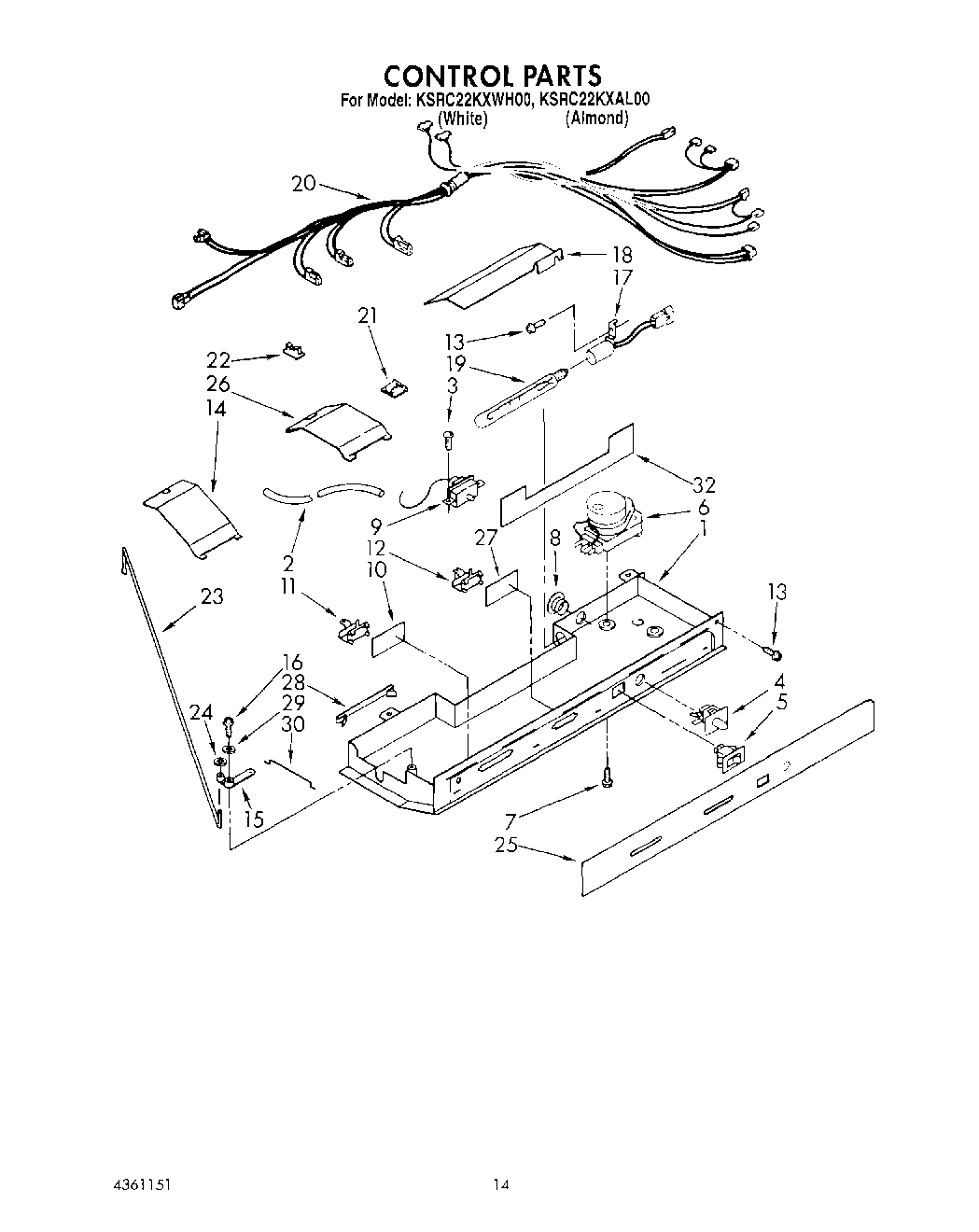

1	Control Box
2	WP2196003 Whirlpool Refrigerator Bar Riser
3	2006254 Whirlpool Refrigerator Screw
4	WP2149705 Whirlpool Refrigerator Door Switch
5	Switch, Toggle
6	Defrost Timer, (10 Hr.)
7	489392 Whirlpool Refrigerator Screw
8	940014 Whirlpool Refrigerator Primary Button Plug
9	Thermostat Assembly
10	Window
11	Slide, Air Control
12	Slide, Thermostat
13	WP489478 Whirlpool Refrigerator Screw
14	Light Bar
15	Pivot Arm
16	627068 Whirlpool Refrigerator Screw
17	Light Socket
18	Heat Shield
19	WP548049 Whirlpool Refrigerator Light Bulb
20	Control Box Harness
21	WP1115374 Whirlpool Refrigerator Clip
22	CLIP, WIRING
23	Connecting Rod
24	Fastener, Push-On
25	Escutcheon, Control Box
26	Light Bar
27	Window
28	Clip, Control Box
29	489203 Whirlpool Refrigerator Washer
30	Connecting Rod (Short)
32	350930 Whirlpool White Spray Paint
32	WP72107 Whirlpool Touchup
32	Leveler (Thinner)
32	Almond (Uncut)
32	799344 Whirlpool Refrigerator Paint
32	72017 Whirlpool Appliance Touch-Up Paint White
32	350956 Whirlpool Spray Assembly
32	212643 Whirlpool Refrigerator Permagum Sealer
32	350942 Whirlpool Spray Paint
32	511873 Whirlpool Refrigerator Paint
32	Enamel, Black (1 Qt. Uncut)
32	285006 Whirlpool Spray
32	72032 Whirlpool Touch Up Paint Black
32	CEMENT, ALUMILASTIC (1 1/4 OZ.)
32	TAPE, VINYL (3/4 X 108“)
32	WP542638 Whirlpool Refrigerator Grease
32	Transformer (115-230 Volt)
32	WP505587 Whirlpool Refrigerator Sealer
32	WP503695 Whirlpool Refrigerator Sealer
32	WPL 799833
32	876370 Whirlpool Refrigerator Insulation
32	833938 Whirlpool Refrigerator Terminal
32	Heat Shield
32	606755 Whirlpool Refrigerator Bag
32	WPL 876029
