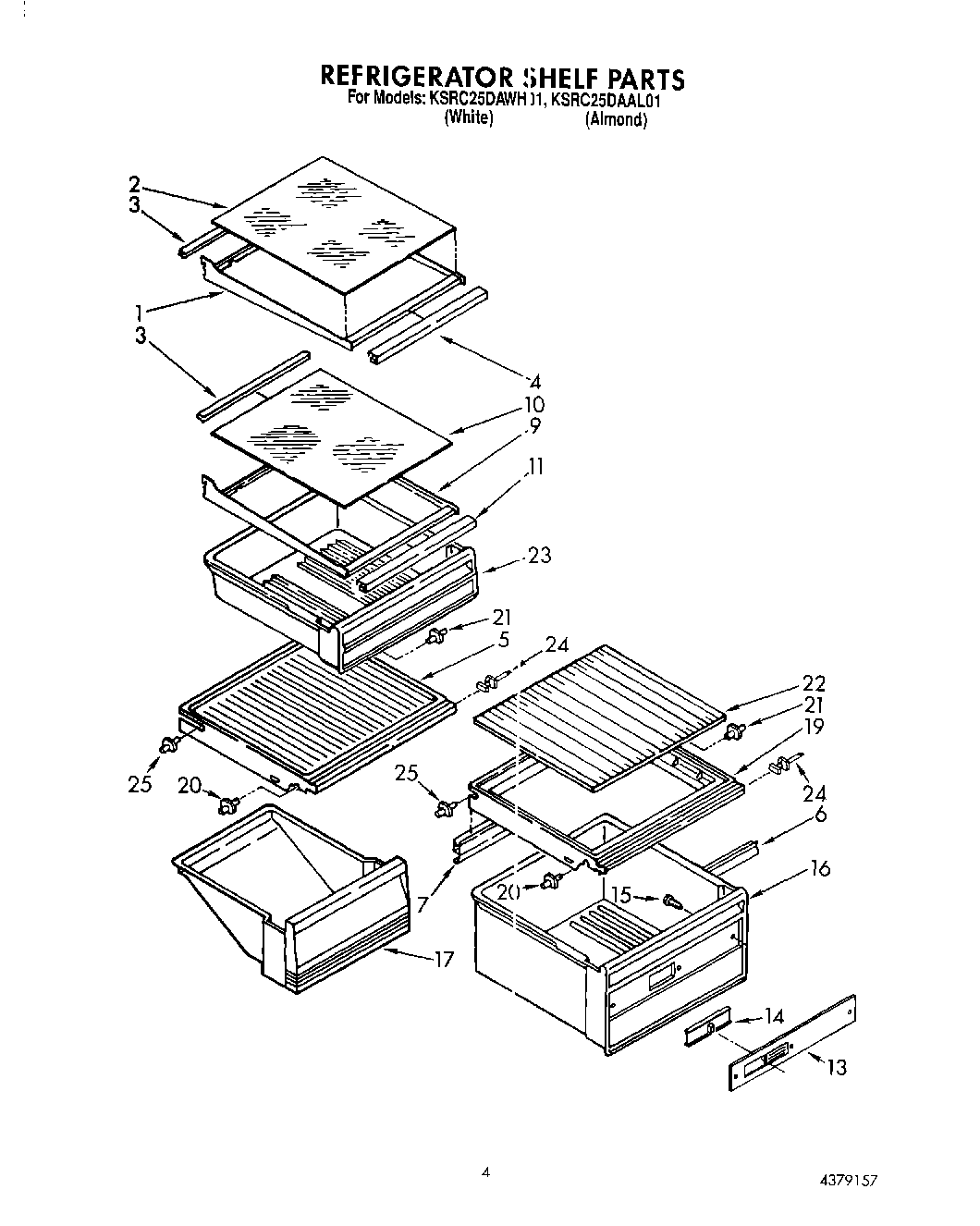

KSRC25DAAL01 03 – REFRIGERATOR SHELF

Products

PositionProduct
1Shelf Assembly, Cantilever (2)
2Glass, Shelf
3Retainer
4Gasket, Front
5WP2148298 Whirlpool Refrigerator Deli Drawer Cover Top Pan
6Gasket, Crisper (Front)
7Gasket, Crisper (Rear)
9Pan Shelf & Slide Assembly
10Glass, Shelf
11Gasket (Front)
13Front, Crisper
14Slide, Humidity
15Screw (3)
16Pan, Crisper
17Meat Pan
19WP1126289 Whirlpool Refrigerator Cover
20WP2149540 Whirlpool Shelf Support
214388538 Whirlpool Refrigerator Stud Shelf Kit (White)
22Glass, Crisper
23Utility Bin
25Stud (2)
