KSRC25DBAL00 05 – MOTOR AND ICE CONTAINER

KSRC25DBAL00 05 – MOTOR AND ICE CONTAINER

Written by

in

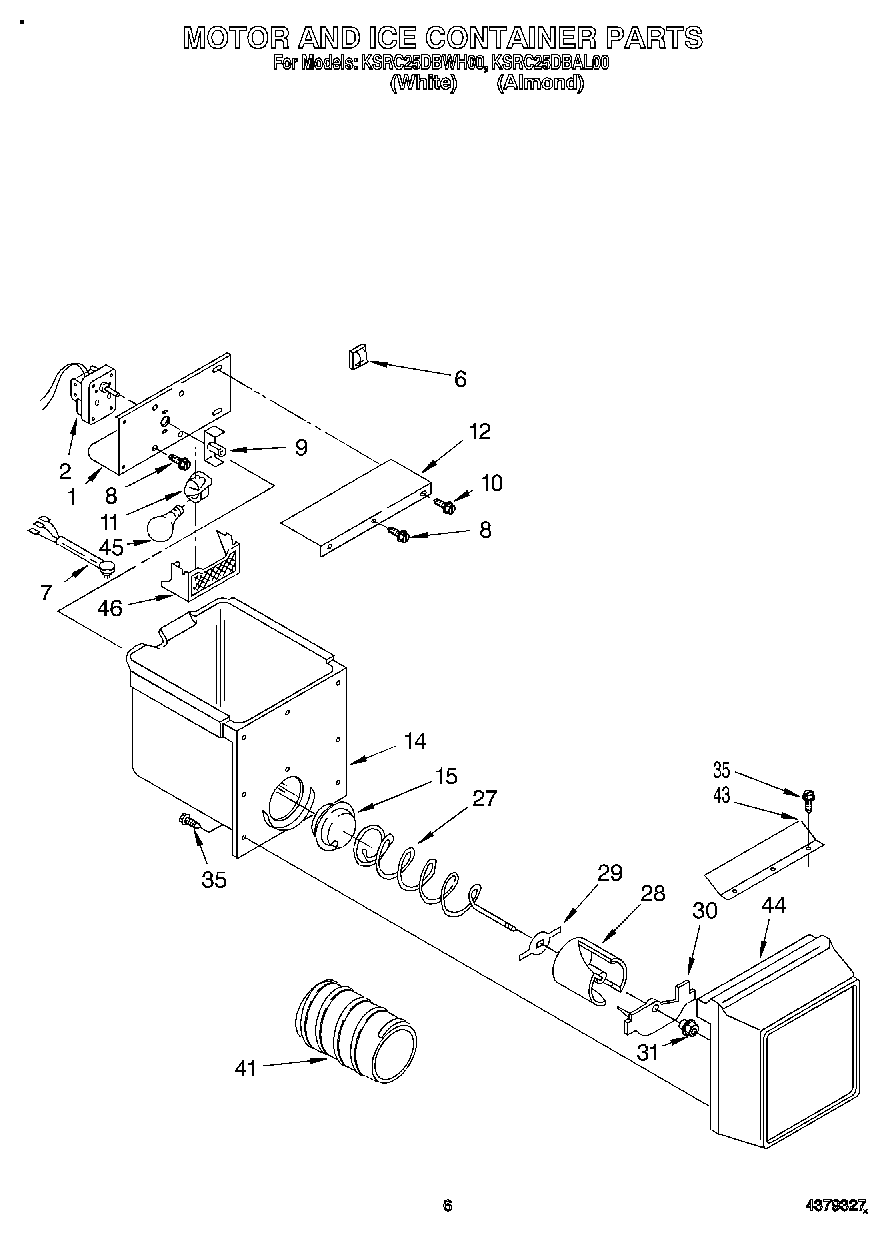

KSRC25DBAL00 05 – MOTOR AND ICE CONTAINER

Products

PositionProduct
1Bracket, Ice Dispenser
2Motor
6WP1115374 Whirlpool Refrigerator Clip
7Wiring Assembly, Ice Dispenser
8WP489399 Whirlpool Refrigerator Screw
9COUPLING AUGER MOTOR
10WP489478 Whirlpool Refrigerator Screw
114387478 Whirlpool Refrigerator Light Socket
12Cover, Motor
14WPW10670845 Whirlpool Refrigerator Ice Container
15W10749708 Whirlpool Refrigerator Coupling
27Conveyor
294388736 Whirlpool Refrigerator Ice Dispenser Bucket Bin Conveyor Auger Drum
30Baffle
31Nut, Bearing
35WP488787 Whirlpool Refrigerator Screw
414317870 Whirlpool Refrigerator Auger Sleeve
43Deflector, Ice Container
44Front Cover, Ice Container
45RANGE ONLY 40W 120V APPL BULB
46Lens, Dispenser Light
