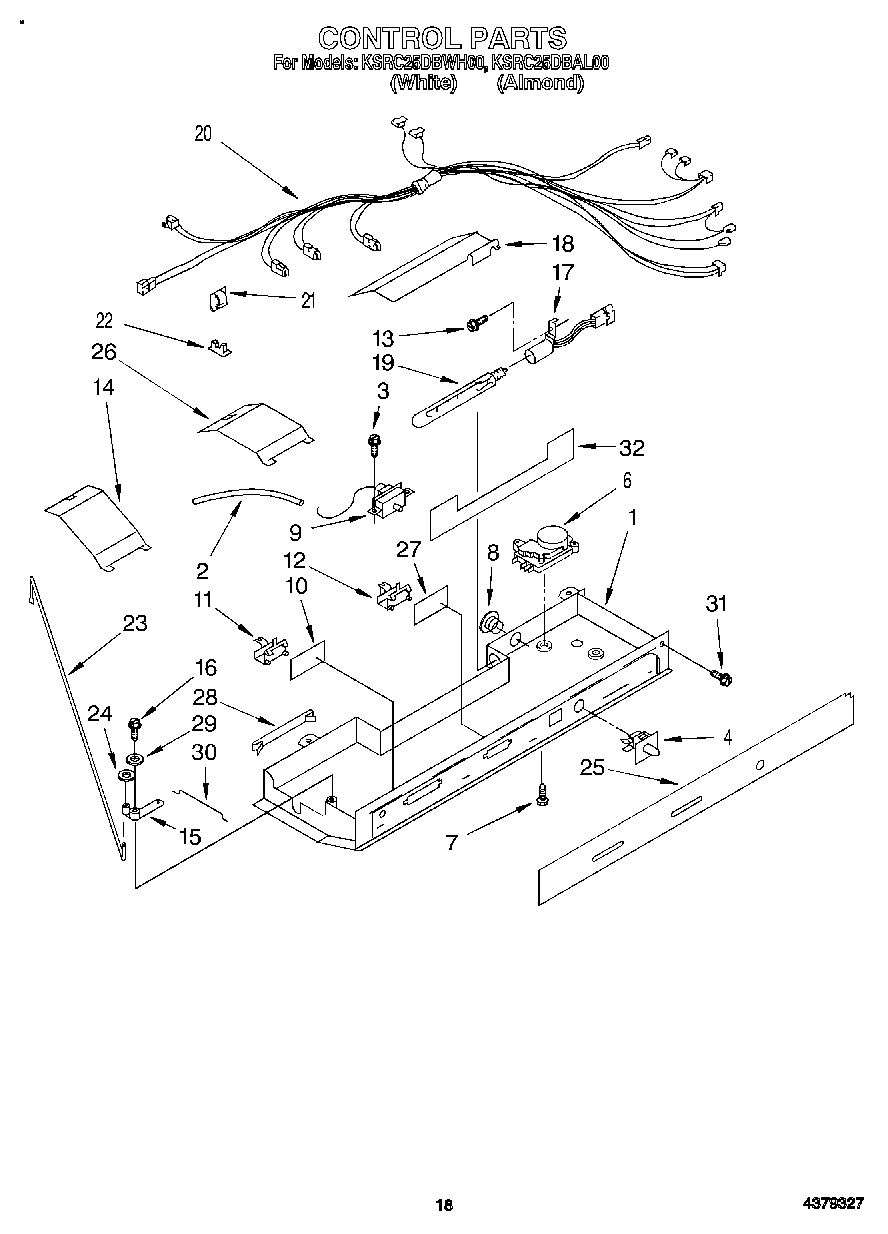

KSRC25DBAL00 12 – CONTROL, LIT/OPTIONAL
Written by
in
KSRC25DBAL00 12 – CONTROL, LIT/OPTIONAL
Products
Position
Product
Modular Icemaker Service Sheet
WPL LIT2161432
Torx Key
WPL LIT2161430
WPL LIT2161900
1
Control Box
2
WP2196003 Whirlpool Refrigerator Bar Riser
3
2006254 Whirlpool Refrigerator Screw
4
WP2149705 Whirlpool Refrigerator Door Switch
6
Defrost Timer (10 Hr.)
7
489392 Whirlpool Refrigerator Screw
8
940014 Whirlpool Refrigerator Primary Button Plug
9
WP2315562 Whirlpool Refrigerator Thermostat
10
Window
11
Slide, Air Control
12
Slide, Thermostat
13
WP489478 Whirlpool Refrigerator Screw
14
Light Bar
15
2161306 Whirlpool Refrigerator Arm Pivot
16
627068 Whirlpool Refrigerator Screw
17
Light Socket
18
Heat Shield
19
WP548049 Whirlpool Refrigerator Light Bulb
20
Control Box Harness
21
WP1115374 Whirlpool Refrigerator Clip
22
CLIP, WIRING
23
2161308 Whirlpool Refrigerator Rod
24
Fastener, Push-On
25
Escutcheon, Control Box
26
Light Bar
27
Window
28
Clip, Control Box
29
489203 Whirlpool Refrigerator Washer
30
2161307 Whirlpool Refrigerator Rod
31
WP488488 Whirlpool Refrigerator Screw
32
511873 Whirlpool Refrigerator Paint
32
350942 Whirlpool Spray Paint
32
212643 Whirlpool Refrigerator Permagum Sealer
32
Almond (Uncut)
32
350930 Whirlpool White Spray Paint
32
72032 Whirlpool Touch Up Paint Black
32
Leveler (Thinner)
32
WP72107 Whirlpool Touchup
32
799344 Whirlpool Refrigerator Paint
32
72017 Whirlpool Appliance Touch-Up Paint White
32
350956 Whirlpool Spray Assembly
32
606755 Whirlpool Refrigerator Bag
32
833938 Whirlpool Refrigerator Terminal
32
876370 Whirlpool Refrigerator Insulation
32
285006 Whirlpool Spray
32
WPL 876029
32
Transformer (115-230 Volt)
32
WPL 799833
32
Enamel, Black (1 Qt. Uncut)
32
CEMENT, ALUMILASTIC (1 1/4 OZ.)
32
WPW10312301 Whirlpool Refrigerator Ice Container
32
TAPE, VINYL (3/4 X 108“)
32
WP542638 Whirlpool Refrigerator Grease
32
WP505587 Whirlpool Refrigerator Sealer
32
WP503695 Whirlpool Refrigerator Sealer
32
Heat Shield
←
