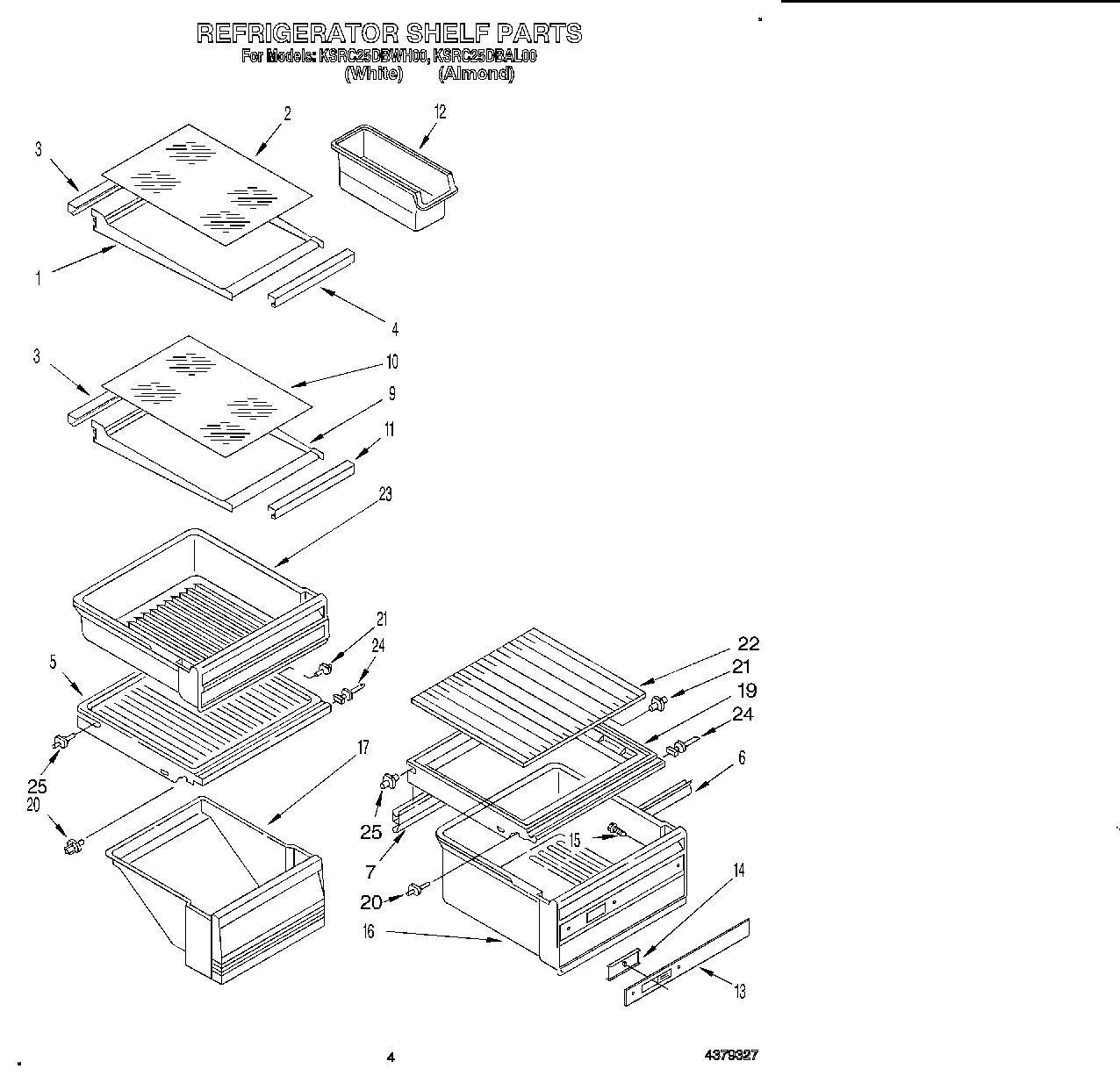

KSRC25DBWH00 03 – REFRIGERATOR SHELFadmin2025-04-26T12:19:45+00:00KSRC25DBWH00 03 – REFRIGERATOR SHELF
Products
| Position | Product |
|---|
| 1 | Shelf Assembly, Cantilever (2) |
| 2 | Glass, Shelf |
| 3 | Retainer |
| 4 | Gasket, Front |
| 5 | WP2148298 Whirlpool Refrigerator Deli Drawer Cover Top Pan |
| 6 | Gasket, Crisper (Front) |
| 7 | Gasket, Crisper (Rear) |
| 9 | Pan Shelf & Slide Assembly |
| 10 | Glass, Shelf |
| 11 | Gasket (Front) |
| 12 | WP982704 Whirlpool Refrigerator Container |
| 13 | Front, Crisper |
| 14 | Slide, Front |
| 15 | Screw (6) |
| 16 | Pan, Crisper |
| 17 | Meat Pan |
| 19 | WP1126289 Whirlpool Refrigerator Cover |
| 20 | WP2149540 Whirlpool Shelf Support |
| 21 | 4388538 Whirlpool Refrigerator Stud Shelf Kit (White) |
| 22 | Glass, Crisper |
| 23 | Bin, Utility |
| 25 | Stud (2) |
