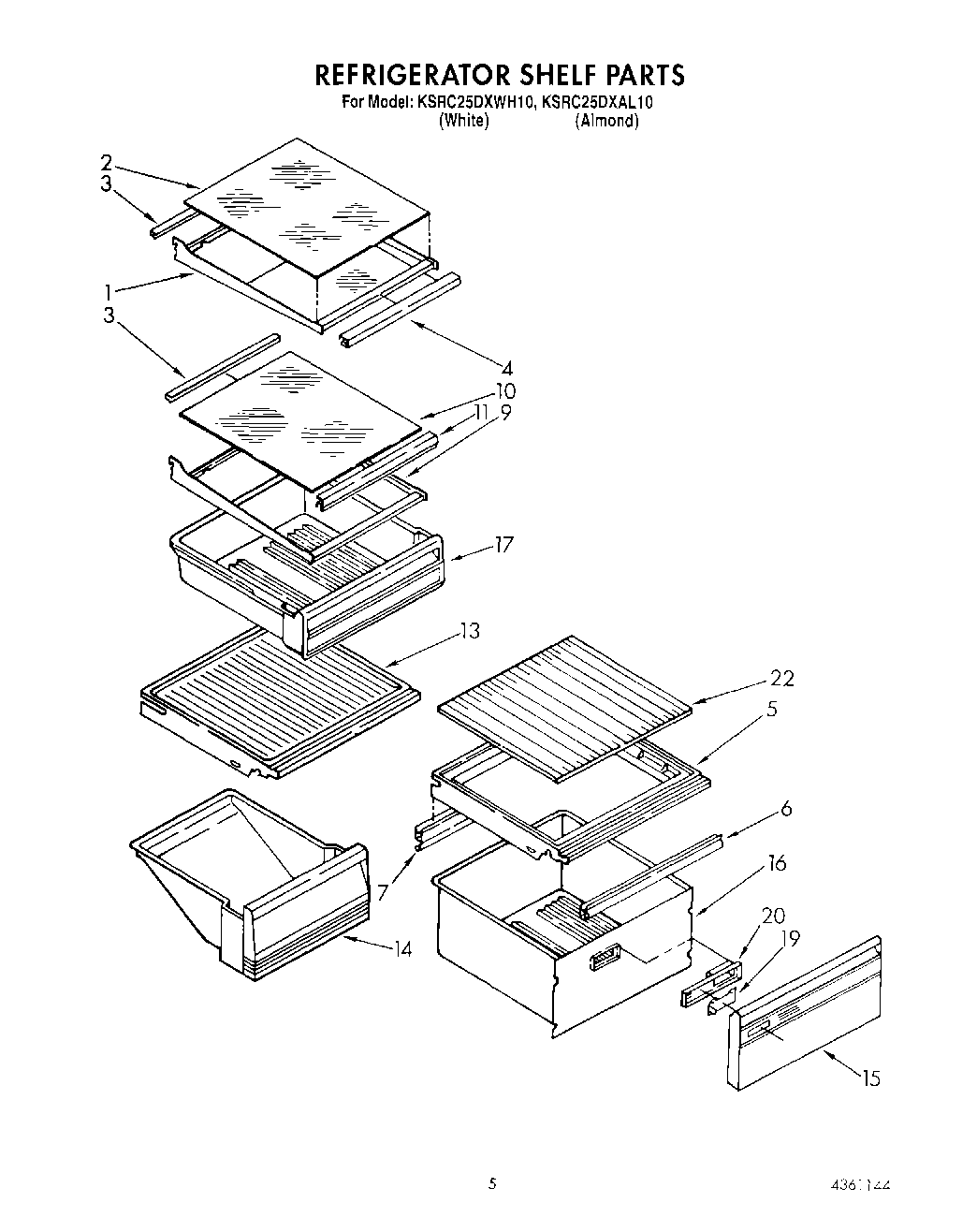

KSRC25DXAL10 03 – REFRIGERATOR SHELF

KSRC25DXAL10 03 – REFRIGERATOR SHELF

Written by

in

KSRC25DXAL10 03 – REFRIGERATOR SHELF

Products

PositionProduct
1Shelf Assembly, Cantilever (2)
2Glass, Shelf
3Retainer
4Gasket, Front
5WP1126289 Whirlpool Refrigerator Cover
6Gasket, Crisper (Front)
7Gasket, Crisper (Rear)
9Pan Shelf & Slide Assembly
10Glass, Shelf
11Gasket (Front)
13WP2148298 Whirlpool Refrigerator Deli Drawer Cover Top Pan
14Meat Pan
15Front, Crisper
16WP2148279 Whirlpool Refrigerator Crisper Pan
17Utility Bin
19Slide, Humidity Control
20Housing, Humidity Control
22Glass, Crisper
