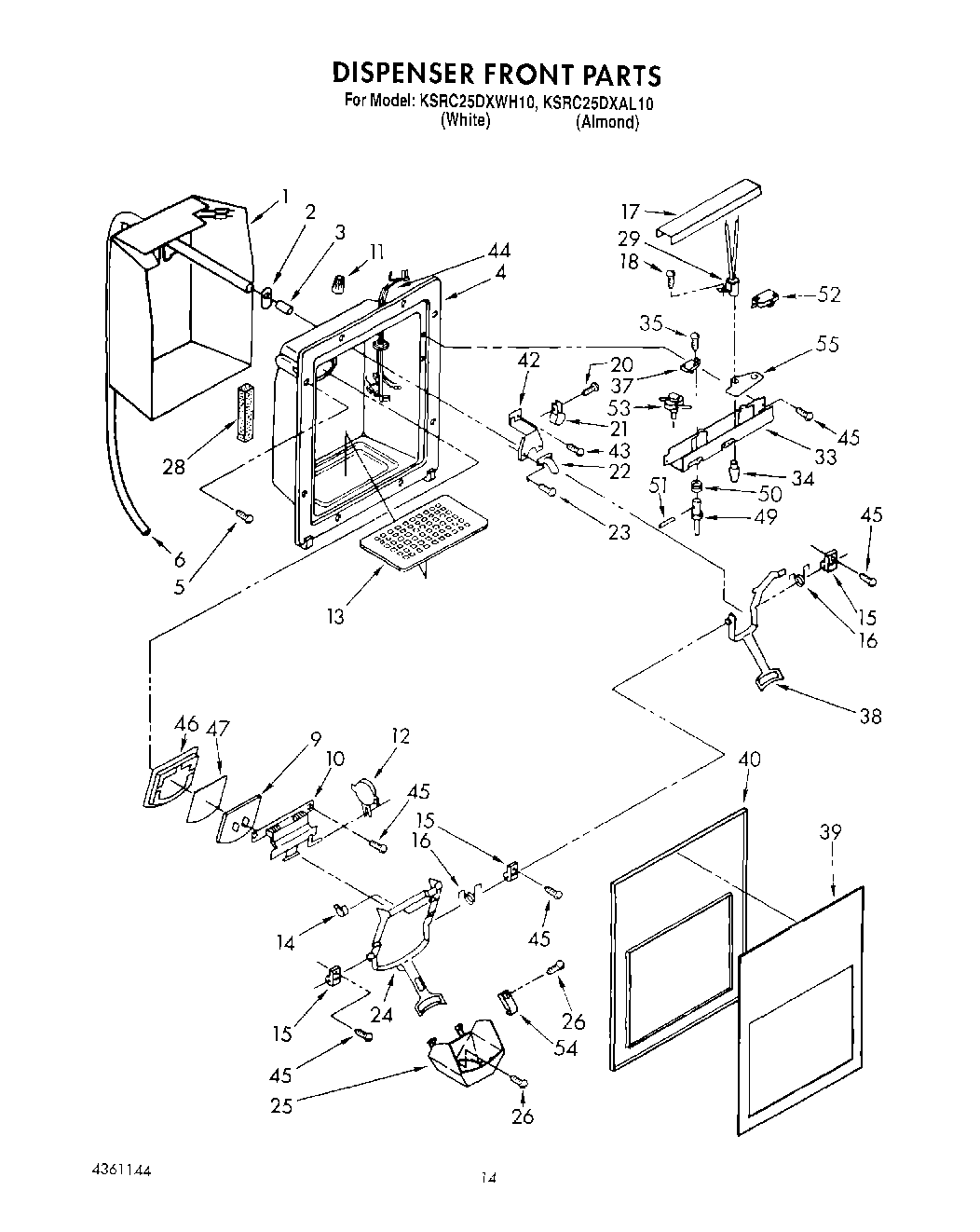

KSRC25DXAL10 10 – DISPENSER FRONT

Products

Position	Product
NI	Door, Ice
1	Heater, Dispenser
2	Grommet
3	4387491 Whirlpool Refrigerator Insert
4	Housing, Dispenser
4	Housing Dispenser (For Almond Model)
5	W11693756 Whirlpool Screw Assembly
6	W10823511 Whirlpool Refrigerator Water Tube
10	Door Mechanism Assembly
11	Wire Connector
12	WP1120581 Whirlpool Refrigerator Mechanism
13	Grille, Overflow (White)
13	Grille, Overflow (Almond)
14	Clip, Bearing (2)
15	Bearing, Lever (3)
16	Spring, Lever (2)
17	Shield, Wiring
18	WP489128 Whirlpool Refrigerator Screw
20	WP488787 Whirlpool Refrigerator Screw
21	WP488878 Whirlpool Refrigerator Tube Clamp
22	WP4388152 Whirlpool Refrigerator Fitting
23	WP965173 Whirlpool Dishwasher Screw
24	Lever Assembly, Ice Dispenser (Almond)
24	Lever Assembly, Ice Dispenser (White)
25	Guide, Ice (Almond)
25	Guide, Ice (White)
26	Screw
28	Seal
29	Socket, Lamp
33	Bracket, Control
34	WP22002263 Whirlpool Dryer 10W Light Bulb
35	Screw
37	814037 Whirlpool Microwave Switch
38	Lever Assembly, Water Dispenser (Almond)
38	Lever Assembly, Water Dispenser (White)
39	Insert, Cover (White)
39	Insert, Cover (Almond)
40	Cover, Housing (Includes Item 39) (White)
40	Cover, Housing (Includes Item 39) (Almond)
42	Bracket, Water
43	Screw, 8-18 x 3/4
44	Wiring Assembly, Door
45	WP3400906 Whirlpool Refrigerator Screw
46	Gasket, Door
47	Shield, Ice Door
49	Plunger
50	Spring, Plunger
51	Pin, Retainer
52	Switch
53	Switch, Light
54	Stop, Glass (White)
54	Stop, Glass (Almond)
55	Insulator, Switch (2)
