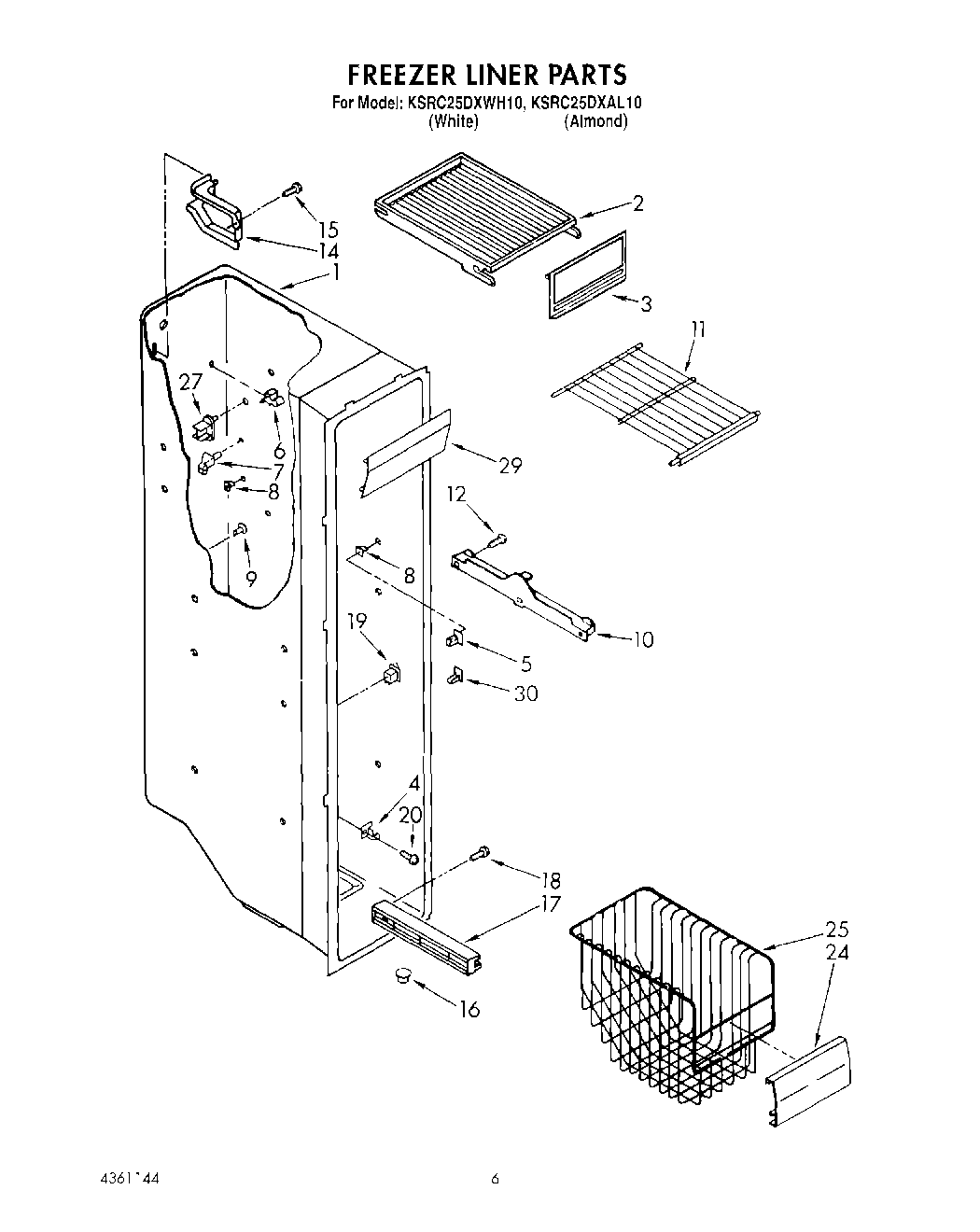

KSRC25DXWH10 04 – FREEZER LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Shelf, Top Compartment
3Door, Ice Compartment
4Evaporator, Support
5Stud, Front R.S.
62215823 Whirlpool Refrigerator Clip
74388405 Whirlpool Refrigerator Shelf Stud
8Stud, Support
9Grommet (8)
10W10845583 Whirlpool Refrigerator Track
10W10845585 Whirlpool Refrigerator Track
11Shelf
12718257 Whirlpool Dishwasher Screw
14Wiring Cover
15WP488729 Whirlpool Refrigerator Door Screw
16Fitting, Drain
17Shelf Track (Right Side (4))
17Shelf Track (Left Side (4))
18W11693756 Whirlpool Screw Assembly
19W11457217 Whirlpool Refrigerator Rocker Switch Combination
20WP489478 Whirlpool Refrigerator Screw
24Front, Basket
25Basket, Lower
27Stud, Shelf (4)
29Light Lens
30Stud, Rear R.S.
