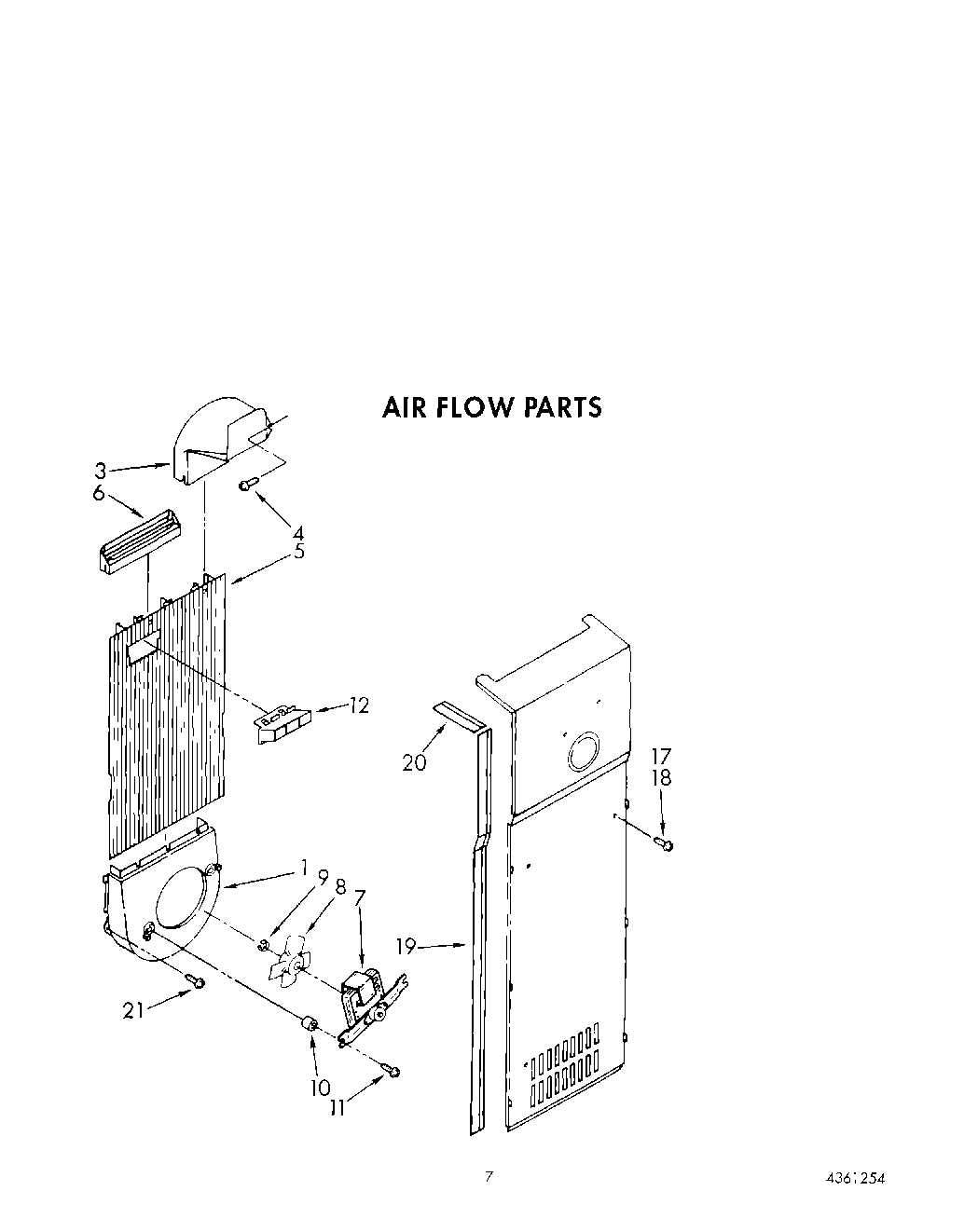

KSRC25DXWH11 05 – AIR FLOW

Products

Position	Product
1	Fan Scroll
3	Air Scoop
4	WP488729 Whirlpool Refrigerator Door Screw
5	Air Duct Freezer
6	Diffuser Air Duct
7	Fan Motor
8	Blade, Fan
9	Ring, Compression
10	Fan Grommet (2)
11	Screw (2)
12	2182146 Whirlpool Refrigerator Duct
17	Cover, Evaporator
18	SCREW
19	Gasket, Evaporator Cover (2)
20	Gasket, Evaporator Cover Top (2)
21	WP489478 Whirlpool Refrigerator Screw
