KSRC25DXWH11 06 – MOTOR AND ICE CONTAINER

KSRC25DXWH11 06 – MOTOR AND ICE CONTAINER

Written by

in

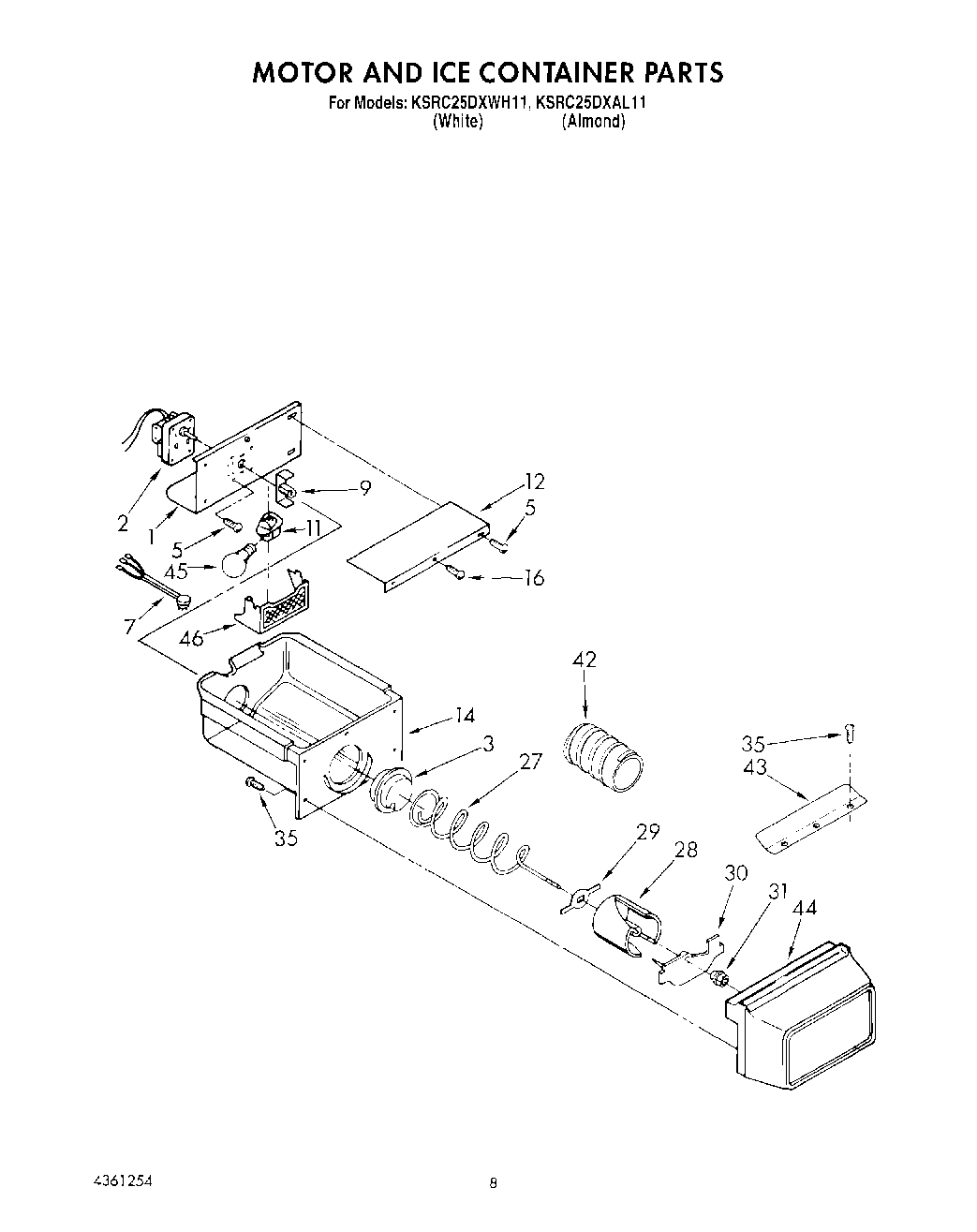

KSRC25DXWH11 06 – MOTOR AND ICE CONTAINER

Products

PositionProduct
1Bracket, Ice Dispenser
2Motor
3W10749708 Whirlpool Refrigerator Coupling
5303776 Whirlpool Dishwasher Screw
7Wiring Assembly, Ice Dispenser
9COUPLING AUGER MOTOR
114387478 Whirlpool Refrigerator Light Socket
12Cover, Motor
14WPW10670845 Whirlpool Refrigerator Ice Container
16WP489478 Whirlpool Refrigerator Screw
27Conveyor
294388736 Whirlpool Refrigerator Ice Dispenser Bucket Bin Conveyor Auger Drum
30Baffle
31Nut, Bearing
35WP488787 Whirlpool Refrigerator Screw
424317870 Whirlpool Refrigerator Auger Sleeve
43Deflector, Ice Container
44Front Cover, Ice Container
45RANGE ONLY 40W 120V APPL BULB
46Lens, Dispenser Light
