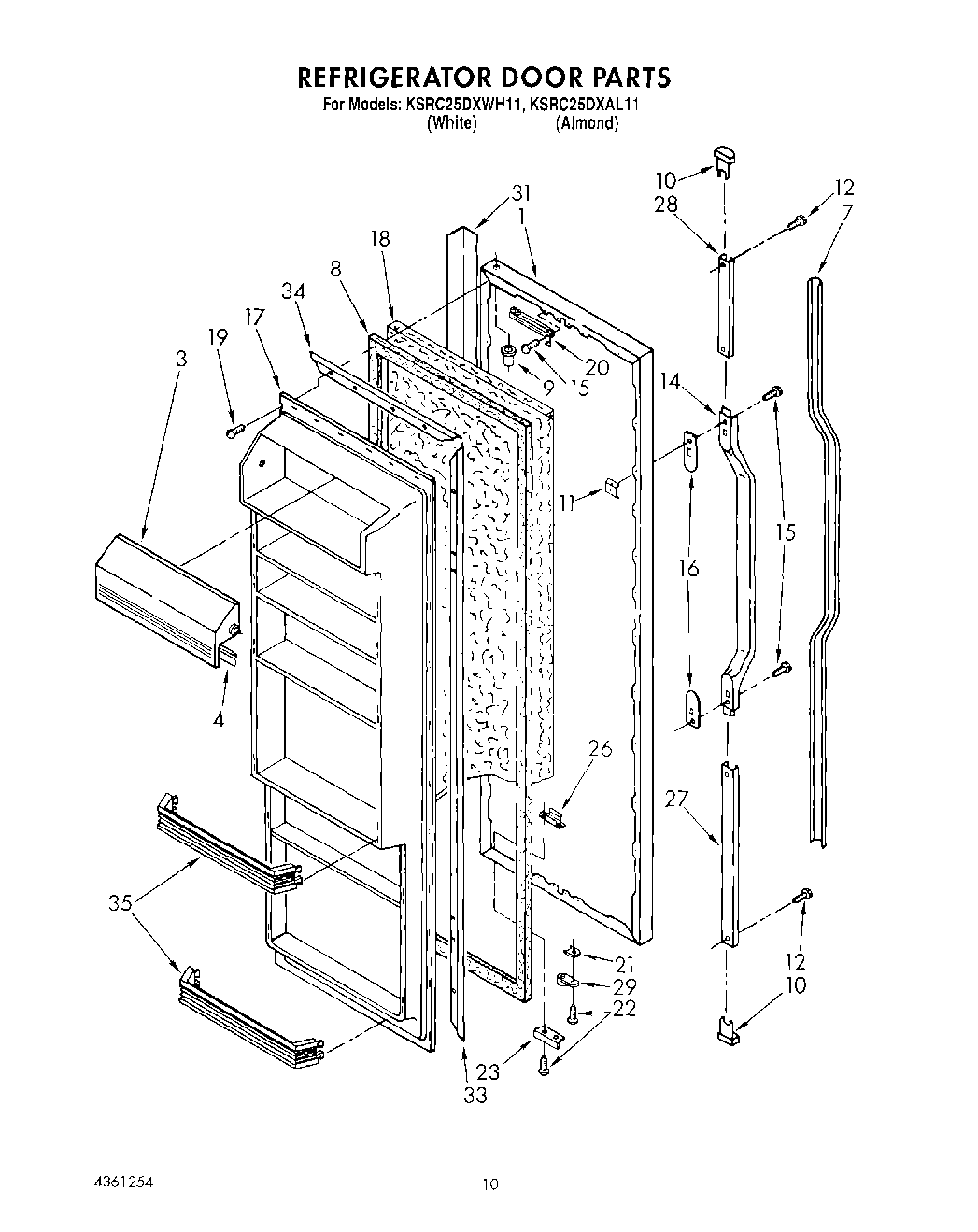

KSRC25DXWH11 08 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Also Order Item 18)
1	Refrigerator, Door Panel (Almond (Also Order Item 18))
3	Compartment Door,
4	Gasket, Utility Door
7	Insert, Handle
7	Insert, Handle (Almond)
8	Door Gasket, Magnetic
9	Cap, Hinge Sleeve (2)
10	End Cap (2)
11	Screw Anchor (2)
12	Screw
14	Handle
16	Spacer, Handle
17	Panel, Interior Door
18	WPL 876029
20	Door Closer, Upper Cam
21	WP1104787 Whirlpool Refrigerator Shim
22	WP489069 Whirlpool Compactor Screw
23	Bracket, Door Stop
26	Tap Plate
27	Retainer, Insert
28	Retainer, Insert
29	4318165 Whirlpool Refrigerator Door Closure Cam Kit
31	Trim, Door
33	Gasket Retainer, Side (2)
34	Gasket Retainer, Top & Bottom
35	Shelf Bin (4)
