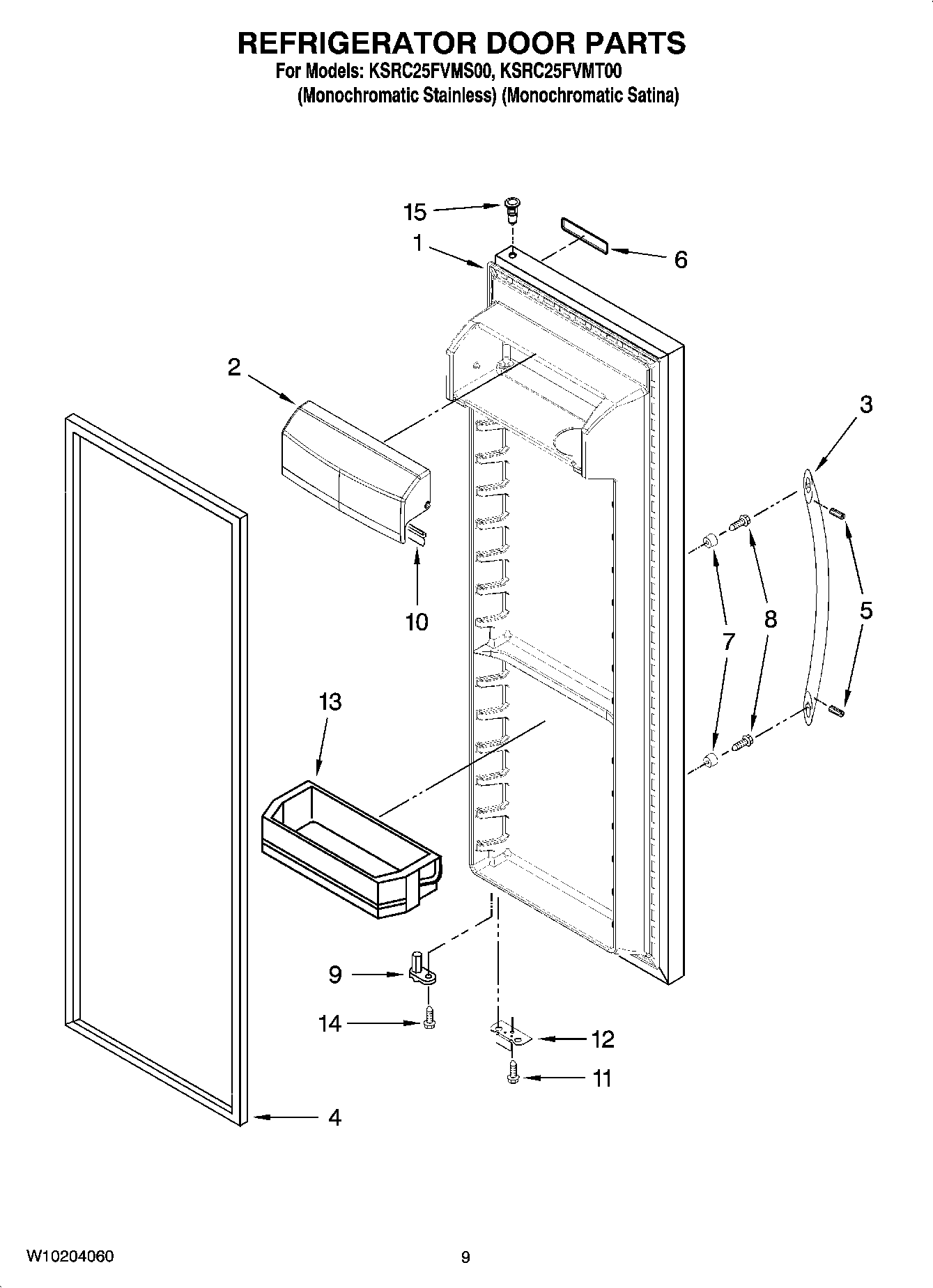

KSRC25FVMS00 06 – REFRIGERATOR DOOR PARTS

KSRC25FVMS00 06 – REFRIGERATOR DOOR PARTS

Written by

in

KSRC25FVMS00 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (INCLUDES No.3) (MONO SATINA)
1REFRIGERATOR DOOR (INCLUDES No.7) (MONOCHROMATIC SATINA)
2Door, Compartment
3Handle, Door (Stainless Steel)
4WPW10136734 Whirlpool Refrigerator Door Gasket
5SCREW
6NAMEPLATE
7WPW10170540 Whirlpool Screw
8WP488163 Whirlpool Refrigerator Screw
9WP2182179 Whirlpool Cam Closer
10Gasket, Door Compartment
11WP489483 Whirlpool Screw
12WP2206629B Whirlpool Refrigerator Bracket
13WP2223434K Whirlpool Refrigerator Door Shelf Bin
14WP3400012 Whirlpool Refrigerator Screw
15WP2182181 Whirlpool Refrigerator Thimble
