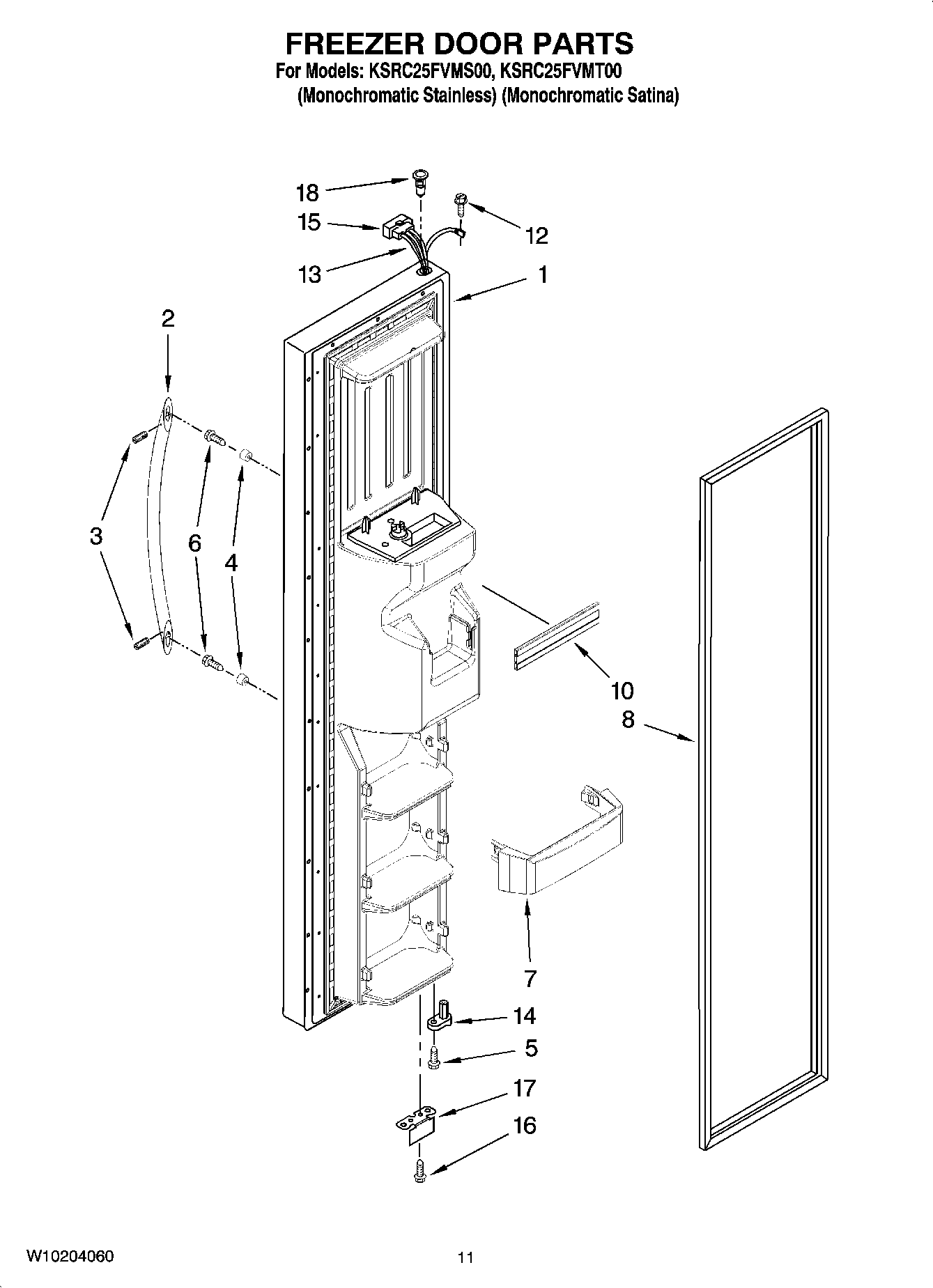

KSRC25FVMS00 07 – FREEZER DOOR PARTS

KSRC25FVMS00 07 – FREEZER DOOR PARTS

Written by

in

KSRC25FVMS00 07 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes 8 And Dispenser Front Parts) (Mono Stainless)
1Freezer Door (Includes 8 And Dispenser Front Parts) (Mono Satina)
2Handle, Door (Stainless Steel)
3SCREW
4WPW10170540 Whirlpool Screw
5WP3400012 Whirlpool Refrigerator Screw
6WP488163 Whirlpool Refrigerator Screw
7Shelf Bin (3)
8W10136735 Whirlpool Refrigerator Door Gasket
10WPW10307490 Whirlpool Door Trim Assembly
12WP489128 Whirlpool Refrigerator Screw
13Dispenser Harness
14Door Closer, Upper Cam
15Connector
16WP489483 Whirlpool Screw
17WP2206629B Whirlpool Refrigerator Bracket
18WP2182181 Whirlpool Refrigerator Thimble
