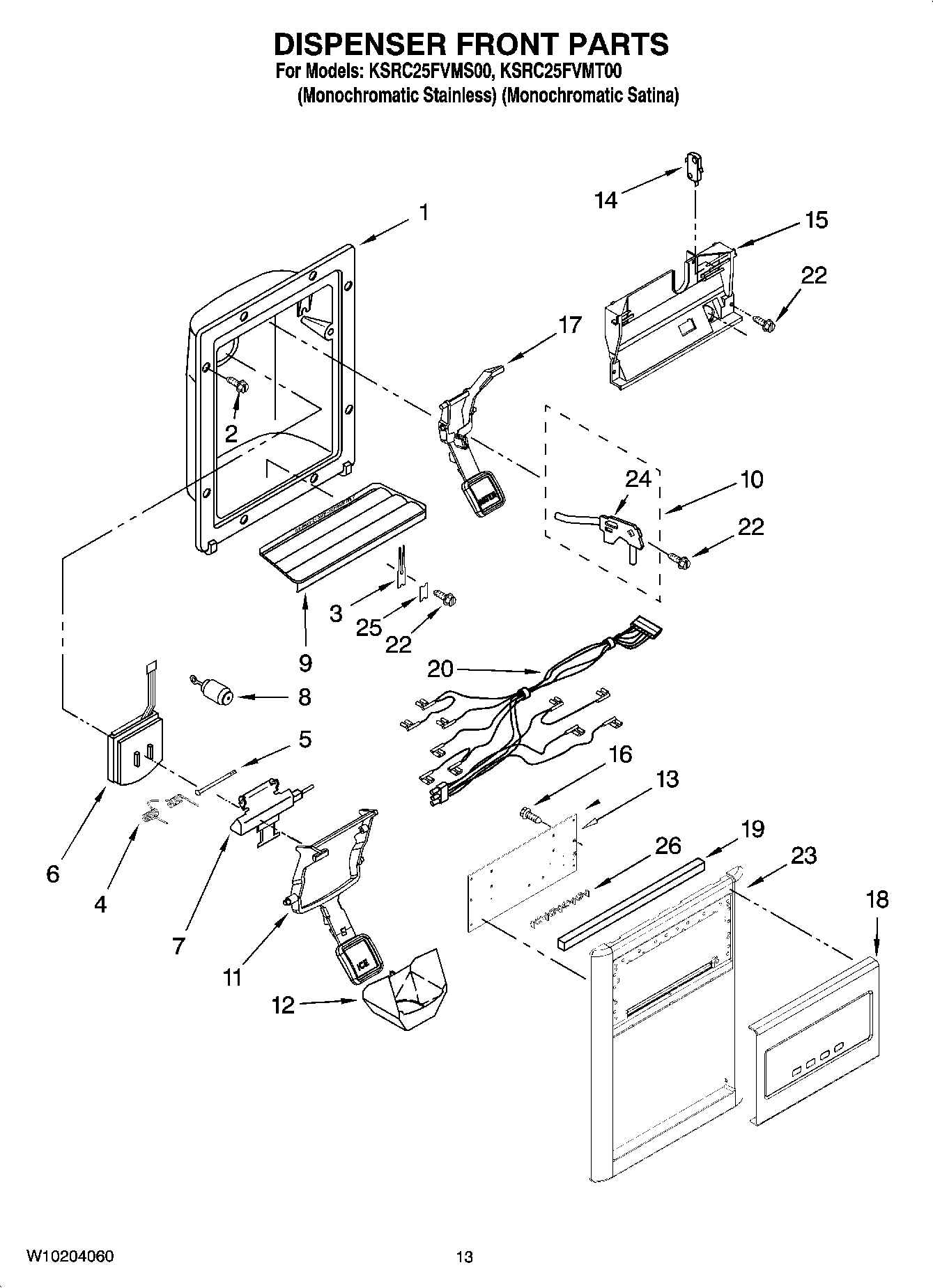

KSRC25FVMS00 08 – DISPENSER FRONT PARTS

Products

Position	Product
NI	Gasket, Disp (2)
1	Housing Dispenser (Not Serviced)
2	WP3196557 Whirlpool Screw
3	WP2194719 Whirlpool Refrigerator Clip
4	WPW10224328 Whirlpool Refrigerator Spring
5	WP2196195 Whirlpool Refrigerator Door Pin
6	WP2180353 Whirlpool Dispenser Door
7	Door Mechanism Assembly
8	Delay Mechanism
9	WP2206670B Whirlpool Dispenser Tray
10	8201537 Whirlpool Water Tubing Assembly
11	Lever, Ice Dispenser (Apollo Gray)
12	WP2180224 Whirlpool Dispenser Funnel Guide
13	Control Board
14	WP2162361 Whirlpool Switch
15	Bracket, Control
16	2006254 Whirlpool Refrigerator Screw
17	Lever, Water Dispenser (Apollo Gray)
18	FASCIA ASSY (NICKEL ONE)
18	FASCIA ASSY (STAINLESS)
19	2305571 Whirlpool Gasket Assembly
20	WPW10193328 Whirlpool Refrigerator Wire Harness
22	WP3400906 Whirlpool Refrigerator Screw
23	Bezel, Disp (Mono Satina (SS))
23	W10171988 Whirlpool Refrigerator Front Cover
24	WP2304673 Whirlpool Refrigerator Bracket
25	WP2195051 Whirlpool Refrigerator Clip
26	Support, Window
