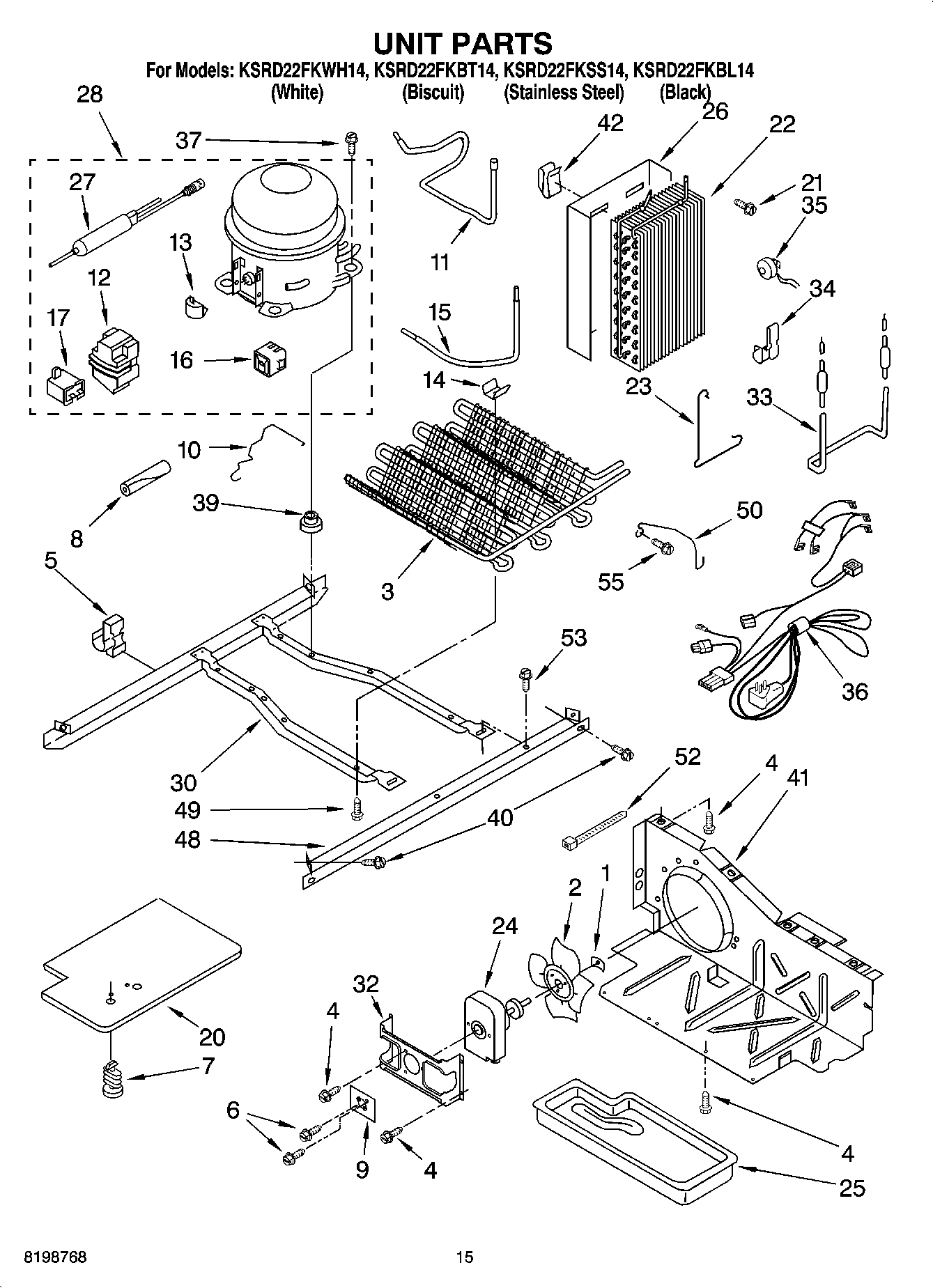

KSRD22FKBL14 09 – UNIT PARTSadmin2025-04-26T12:18:44+00:00KSRD22FKBL14 09 – UNIT PARTS ProductsPositionProduct1WP486692 Whirlpool Refrigerator Nut2Blade, Fan3Condenser Assembly4WP489464 Whirlpool Refrigerator Screw5Clip, Wire & Tube68281160 Whirlpool Screw7489396 Whirlpool Refrigerator Clip8SLEEVE9Insert, Bracket102223314 Whirlpool Refrigerator Clip112205764 Whirlpool Refrigerator Tube12WP2162358 Whirlpool Refrigerator Terminal Cover13OVERLOAD14W10683556 Whirlpool Refrigerator Clip15Tube, Condenser to Heat Loop168201786 Whirlpool Relay and Overload Start Kit17WP4387764 Whirlpool Run Capacitor17WPW10662129 Whirlpool Refrigerator Run Capacitor20Unit Cover, Bottom21WP489478 Whirlpool Refrigerator Screw22WP2188822 Whirlpool Refrigerator Evaporator23Clamp24W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade25WPW10614158 Whirlpool Refrigerator Evaporator Tray26Heat Shield And Drain Pan27W10843121 Whirlpool Refrigerator Tube28W10309990 Whirlpool Refrigerator Compressor302304903 Whirlpool Refrigerator Frame32WP2181929 Whirlpool Refrigerator Bracket33WP2323197 Whirlpool Refrigerator Heater34Clip35WPW10225581 Whirlpool Refrigerator Defrost Thermostat36WPW10309395 Whirlpool Refrigerator Wire Harness39WP4387558 Whirlpool Refrigerator Compressor Grommet39876811 Whirlpool Grommet40489340 Whirlpool Refrigerator Screw41W10896764 Whirlpool Refrigerator Air Baffle42Clip, Heat Shield48Unit Mounting Rail49W11544659 Whirlpool Refrigerator Screw50Guard, Fan52WPW10339879 Whirlpool Wire Tie53WP489427 Whirlpool Refrigerator Screw55FOLLOWING PARTS NOT ILLUSTRATED55VALVE, ACCESS (5/8``)55and Optional Parts Not Included55876764 Whirlpool Refrigerator Primary Valve55978026 Whirlpool Refrigerator Primary Valve55978027 Whirlpool Refrigerator Primary Valve55978030 Whirlpool Refrigerator Valve55WP978025 Whirlpool Refrigerator Valve55VALVE, ACCESS (1/2``)55WPW10141625 Whirlpool Refrigerator Screw Assembly55REFRI
