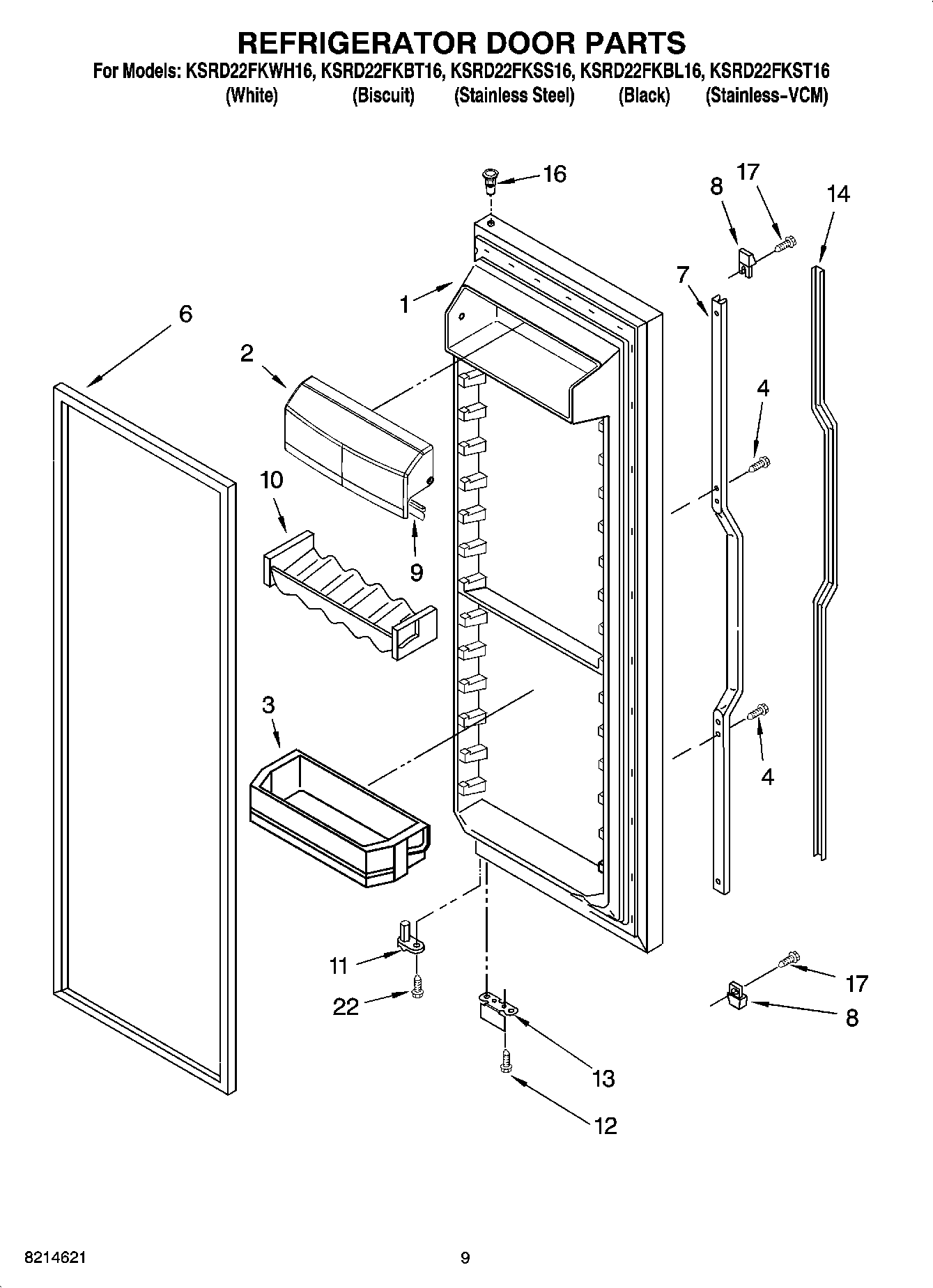

KSRD22FKBL16 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Item 8) (White)
1	Refrigerator Door (Includes Item 8) (Biscuit)
1	Refrigerator Door (Includes Item 8) (Stainless Steel)
1	Refrigerator Door (Includes Item 8) (Stainless-VCM)
1	Refrigerator Door (Includes Item 8) (Black)
2	Door, Compartment
3	Door Bin (4)
4	WP489491 Whirlpool Refrigerator Screw
6	2159073 Whirlpool Refrigerator Door Gasket
6	2159081 Whirlpool Refrigerator Door Gasket
7	Insert, Handle
7	Insert, Handle (Black)
7	Insert, Handle (Biscuit)
8	End Cap, Handle
8	End Cap, Handle (Biscuit)
8	End Cap (Black)
9	Gasket, Door Compartment
10	Beverage Holder
11	WP2182179 Whirlpool Cam Closer
12	WP489483 Whirlpool Screw
13	WP2206629B Whirlpool Refrigerator Bracket
14	Retainer, Insert (Black)
14	Retainer, Insert
14	Retainer, Handle (Biscuit)
16	Thimble, Top (For Stainless Steel Models)
16	WP2182181 Whirlpool Refrigerator Thimble
17	WP3400852 Whirlpool Refrigerator Screw
22	WP3400012 Whirlpool Refrigerator Screw
