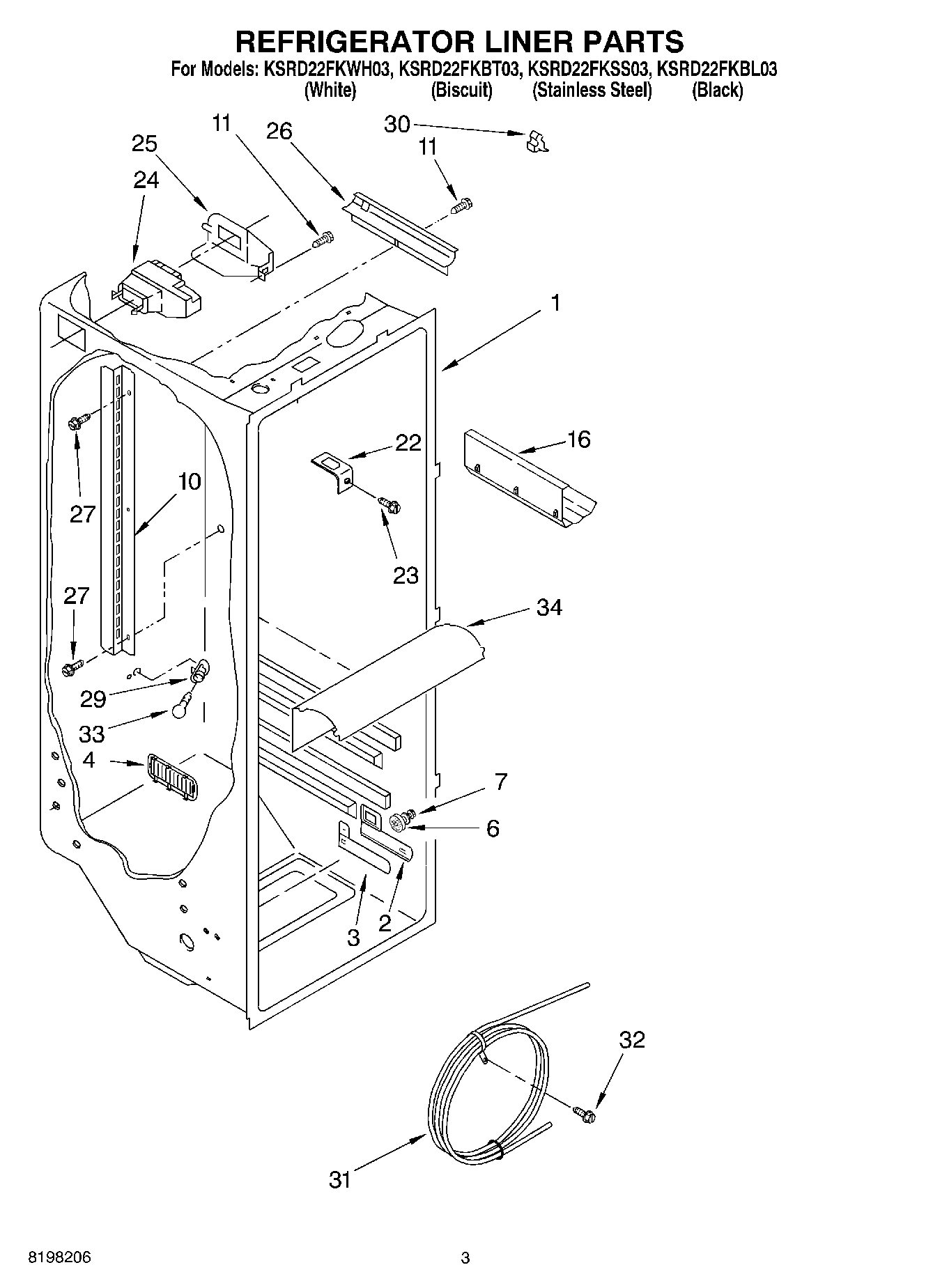

KSRD22FKBT03 02 – REFRIGERATOR LINER PARTS

KSRD22FKBT03 02 – REFRIGERATOR LINER PARTS

Written by

in

KSRD22FKBT03 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
22194744 Whirlpool Refrigerator Escutcheon
32182757 Whirlpool Refrigerator Slide
4Louver
6W11223328 Whirlpool Refrigerator Shelf Stud
7WP3-24004-109 Whirlpool Refrigerator Screw
10Shelf Ladder
11W10759522 Whirlpool Screw
16W10777924 Whirlpool Refrigerator Wine Rack
22WP2256085 Whirlpool Refrigerator Retainer
23WP488488 Whirlpool Refrigerator Screw
24WPW10151374 Whirlpool Refrigerator Diffuser
252152019 Whirlpool Refrigerator Cover
262150331 Whirlpool Refrigerator Wire Cover
27WP488729 Whirlpool Refrigerator Door Screw
294387478 Whirlpool Refrigerator Light Socket
302215823 Whirlpool Refrigerator Clip
31WP2256126 Whirlpool Refrigerator Reservoir
32Screw (2)
33RANGE ONLY 40W 120V APPL BULB
34Light Lens
