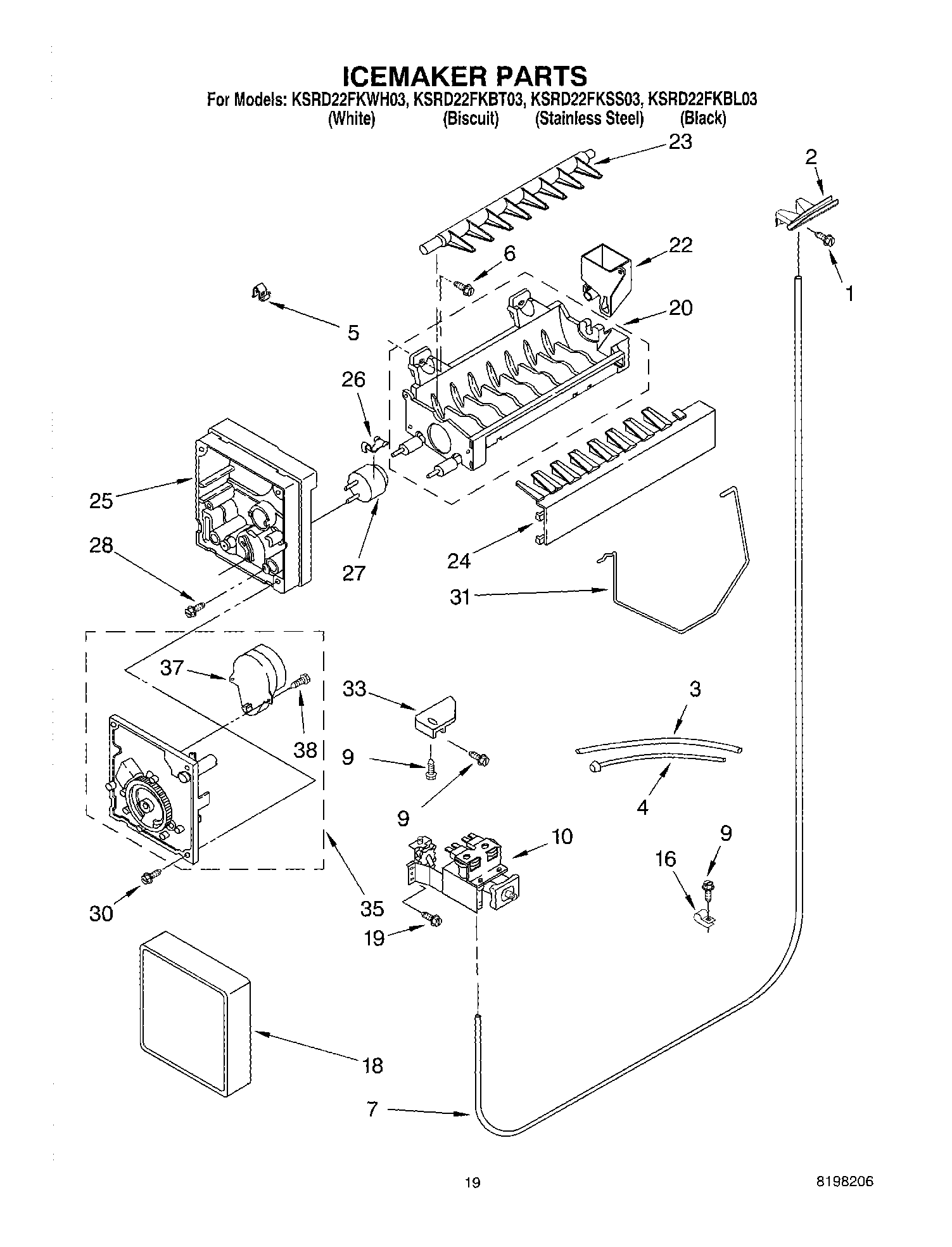

KSRD22FKBT03 12 – ICEMAKER PARTS, PARTS NOT ILLUSTRATED

KSRD22FKBT03 12 – ICEMAKER PARTS, PARTS NOT ILLUSTRATED

Written by

in

KSRD22FKBT03 12 – ICEMAKER PARTS, PARTS NOT ILLUSTRATED

Products

PositionProduct
WPL ARI95410A6
Enamel, Black (1 Qt. Uncut)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
TAPE, VINYL (3/4 X 108“)
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
Torx Key
WP542638 Whirlpool Refrigerator Grease
WP505587 Whirlpool Refrigerator Sealer
WP503695 Whirlpool Refrigerator Sealer
876370 Whirlpool Refrigerator Insulation
833938 Whirlpool Refrigerator Terminal
WPL 799833
WPL 876029
WPL ARI95409A9
WPL ARI95408A7
WPL ARI95407A6
Cleaner, Stainless Steel
WPW10312301 Whirlpool Refrigerator Ice Container
4210463RW Whirlpool Refrigerator Coil Brush
W11496481 Whirlpool Refrigerator Water Tube
72032 Whirlpool Touch Up Paint Black
285006 Whirlpool Spray
8201597 Whirlpool Inlet Water Fill Tube Kit Filter
606755 Whirlpool Refrigerator Bag
511873 Whirlpool Refrigerator Paint
WPL ARI95411A2
799344 Whirlpool Refrigerator Paint
212643 Whirlpool Refrigerator Permagum Sealer
72017 Whirlpool Appliance Touch-Up Paint White
350930 Whirlpool White Spray Paint
350942 Whirlpool Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
4392901 Whirlpool Biscuit Spray Paint
2W11505385 Whirlpool Refrigerator Chute
4WPW10350006 Whirlpool Refrigerator Water Tube
5WP628379 Whirlpool Refrigerator Clip
6WP488163 Whirlpool Refrigerator Screw
7W10823511 Whirlpool Refrigerator Water Tube
9WP489478 Whirlpool Refrigerator Screw
10W10408179 Whirlpool Ice Maker Water Inlet Fill Valve Kit
16WP488366 Whirlpool Refrigerator Clamp
18WPW10289690 Whirlpool Ice Maker Cover
19WPW10141625 Whirlpool Refrigerator Screw Assembly
22WP628356 Whirlpool Refrigerator Fill Cup
23WP627843 Whirlpool Refrigerator Ejector Arm
24WP2182124 Whirlpool Refrigerator Stripper Arm
25WP2195914 Whirlpool Refrigerator Ice Maker Housing
26WP2315522 Whirlpool Refrigerator Clip
27WP627985 Whirlpool Icemaker Cycling Thermostat
288533917 Whirlpool Refrigerator Screw
30WP681249 Whirlpool Screw Assembly
31W11342242 Whirlpool Refrigerator Ice Level Arm
33W11500948 Whirlpool Refrigerator Bracket
35WPW10190929 Whirlpool Refrigerator Ice Maker Mold
37W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
38489136 Whirlpool Refrigerator Screw
1004317943 Whirlpool Refrigerator Ice Maker Assembly
