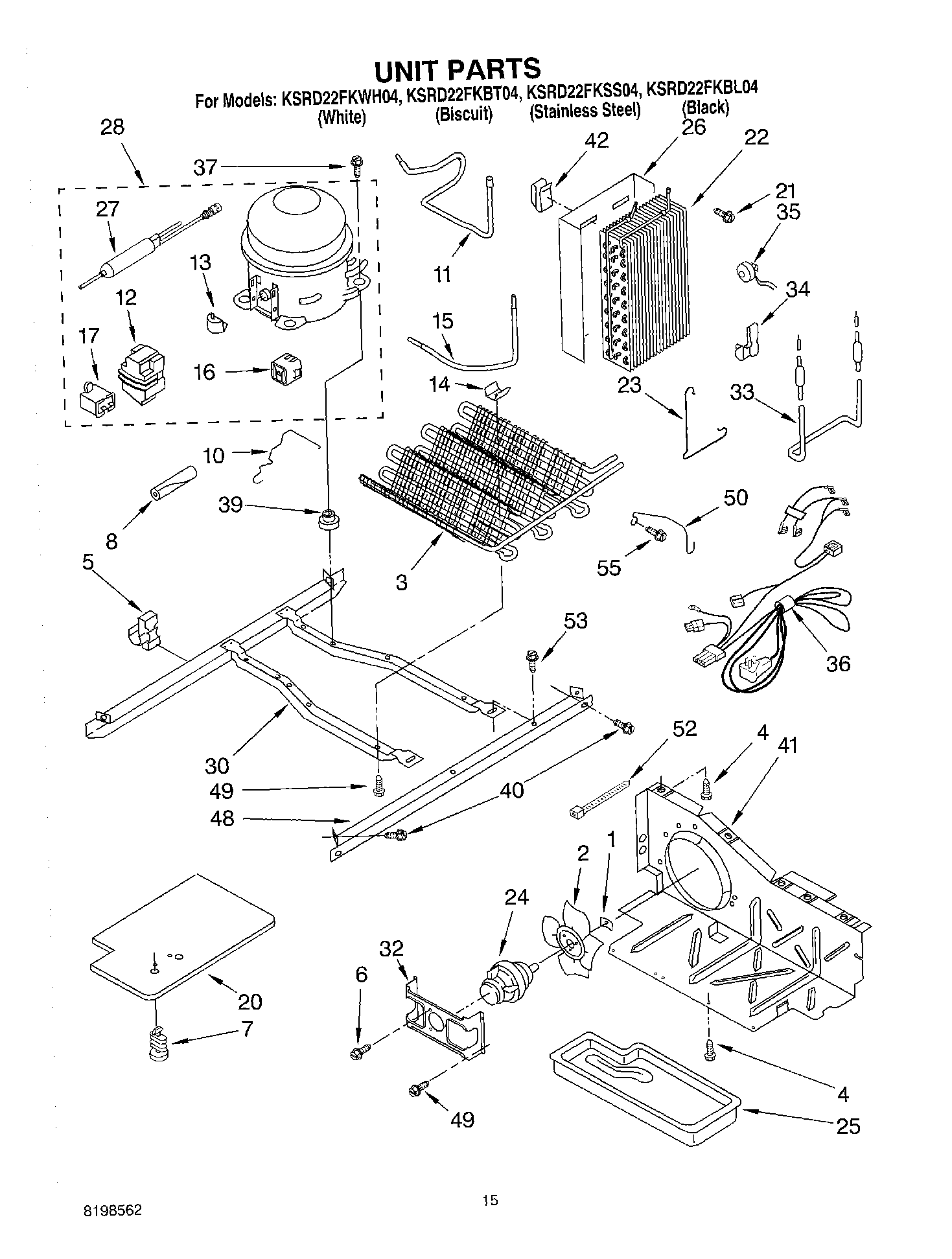

KSRD22FKBT04 09 – UNIT PARTS

KSRD22FKBT04 09 – UNIT PARTS

Products

PositionProduct
1WP486692 Whirlpool Refrigerator Nut
2Blade, Fan
3Condenser Assembly
4WP489464 Whirlpool Refrigerator Screw
5Clip, Wire & Tube
6681390 Whirlpool Refrigerator Screw
7489396 Whirlpool Refrigerator Clip
8SLEEVE
102223314 Whirlpool Refrigerator Clip
112205764 Whirlpool Refrigerator Tube
12WP2162358 Whirlpool Refrigerator Terminal Cover
13OVERLOAD
14W10683556 Whirlpool Refrigerator Clip
15Tube, Condenser to Heat Loop
168201786 Whirlpool Relay and Overload Start Kit
17WP4387764 Whirlpool Run Capacitor
17WPW10662129 Whirlpool Refrigerator Run Capacitor
20Unit Cover, Bottom
21WP489478 Whirlpool Refrigerator Screw
22WP2188822 Whirlpool Refrigerator Evaporator
23Clamp
24W10822259 Whirlpool Refrigerator Condenser Fan Motor
25WPW10614158 Whirlpool Refrigerator Evaporator Tray
26Heat Shield And Drain Pan
27W10843121 Whirlpool Refrigerator Tube
28W10309990 Whirlpool Refrigerator Compressor
302304903 Whirlpool Refrigerator Frame
32WP2181929 Whirlpool Refrigerator Bracket
33WP2323197 Whirlpool Refrigerator Heater
34Clip
35WPW10225581 Whirlpool Refrigerator Defrost Thermostat
36Unit, Harness
39876811 Whirlpool Grommet
40489340 Whirlpool Refrigerator Screw
41W10896764 Whirlpool Refrigerator Air Baffle
42Clip, Heat Shield
48Unit Mounting Rail
49W11544659 Whirlpool Refrigerator Screw
50Guard, Fan
52WPW10339879 Whirlpool Wire Tie
53WP489427 Whirlpool Refrigerator Screw
55VALVE, ACCESS (5/8``)
55and Optional Parts Not Included
55FOLLOWING PARTS NOT ILLUSTRATED
55876764 Whirlpool Refrigerator Primary Valve
55978026 Whirlpool Refrigerator Primary Valve
55978027 Whirlpool Refrigerator Primary Valve
55978030 Whirlpool Refrigerator Valve
55WPW10141625 Whirlpool Refrigerator Screw Assembly
55WP978025 Whirlpool Refrigerator Valve
55VALVE, ACCESS (1/2``)
55REFRIGERANT CHARGE 5.0 oz. (R-134A)
