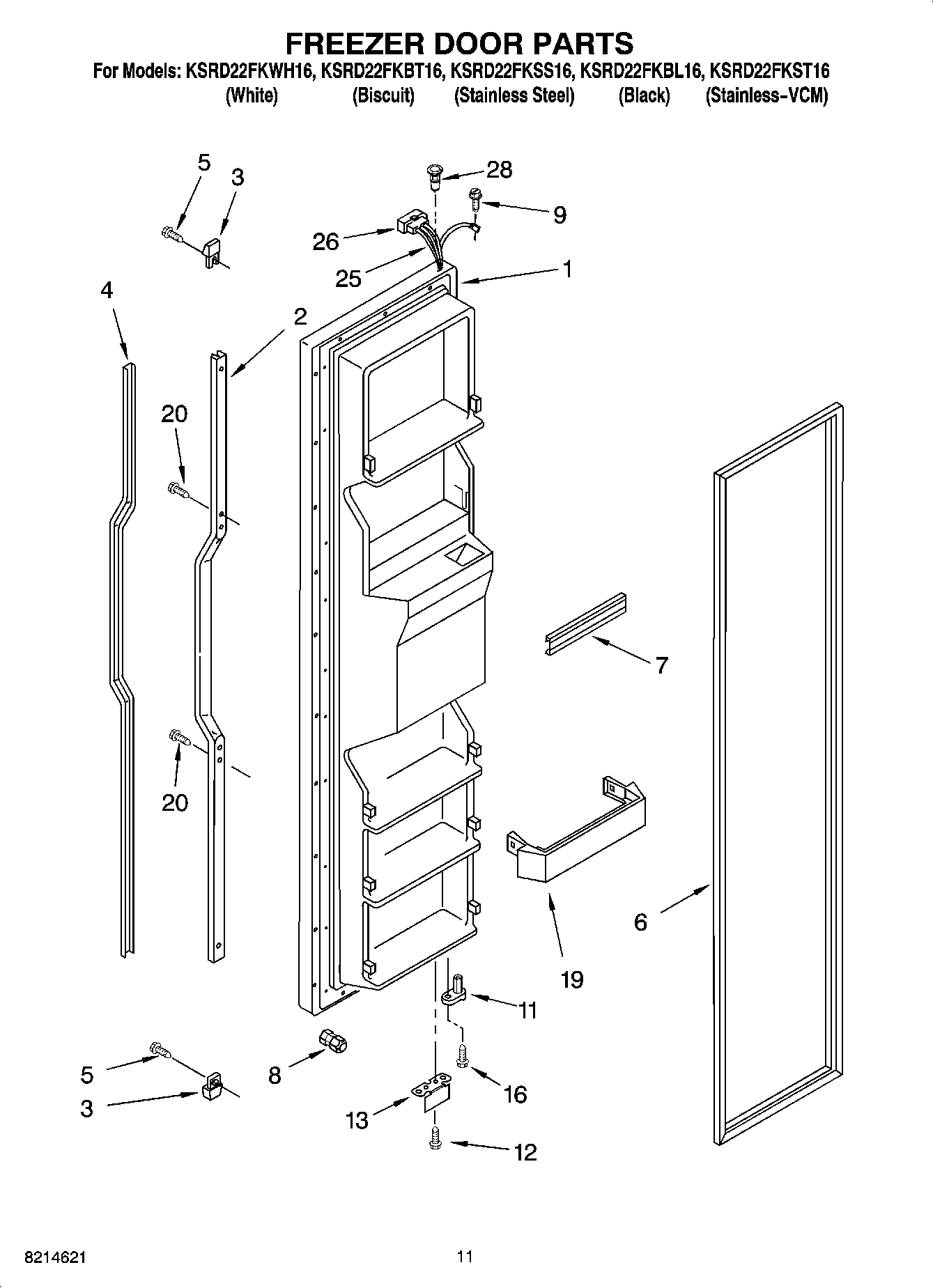

KSRD22FKBT16 07 – FREEZER DOOR PARTSadmin2025-04-26T12:17:55+00:00KSRD22FKBT16 07 – FREEZER DOOR PARTS
Products
| Position | Product |
|---|
| 1 | Freezer Door (White) |
| 1 | Freezer Door (Biscuit (Includes Item No.6 And Dispenser Front Parts)) |
| 1 | Freezer Door (Stainless Steel) |
| 1 | Freezer Door (Stainless-VCM (Includes Item 6 And Dispenser Front Parts)) |
| 1 | Freezer Door (Black) |
| 2 | Insert, Handle |
| 2 | Insert, Handle (Biscuit) |
| 2 | Insert, Handle (Black) |
| 3 | End Cap, Handle (Biscuit) |
| 3 | End Cap (Black) |
| 3 | End Cap, Handle |
| 4 | Retainer, Handle (Biscuit) |
| 4 | Retainer, Insert |
| 4 | Retainer, Insert (Black) |
| 5 | WP3400852 Whirlpool Refrigerator Screw |
| 6 | 2159072 Whirlpool Refrigerator FIP Gasket |
| 6 | 2159080 Whirlpool Refrigerator Door Gasket |
| 7 | WPW10307490 Whirlpool Door Trim Assembly |
| 8 | WP4373559 Whirlpool Fitting |
| 9 | WP489128 Whirlpool Refrigerator Screw |
| 11 | WP2182179 Whirlpool Cam Closer |
| 12 | WP489483 Whirlpool Screw |
| 13 | WP2206629B Whirlpool Refrigerator Bracket |
| 16 | WP3400012 Whirlpool Refrigerator Screw |
| 19 | Trivet, Shelf (3) |
| 20 | WP489491 Whirlpool Refrigerator Screw |
| 25 | Wire Assembly |
| 26 | WP2154473 Whirlpool Refrigerator Connector |
| 28 | WP2182181 Whirlpool Refrigerator Thimble |
| 28 | Thimble, Top (For Stainless Steel Models) |
